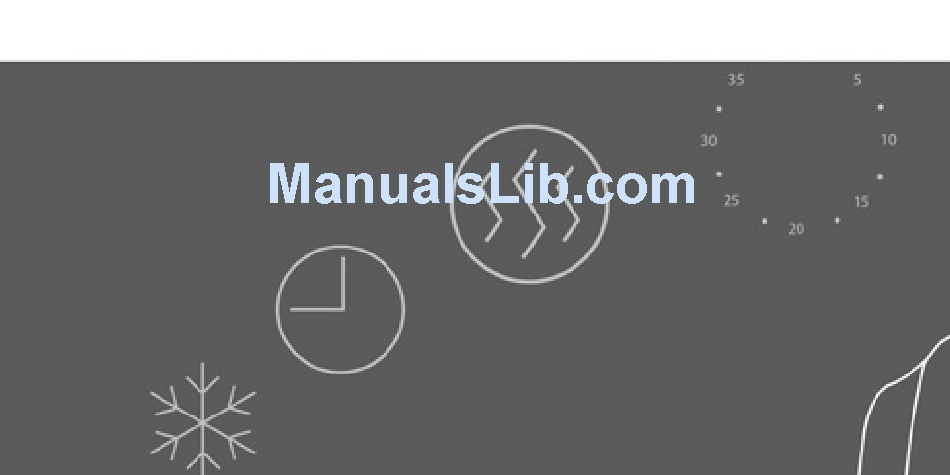

- Page 1 Article: 08095823 Version: 01.01...
- Page 2 AUS Installation Instructions Devireg™ 530, 531, and 532 Installation Instructions Devireg 530, 531 and 532...
-
Page 3: Table Of Contents
Contents The installation must only be carried out by a licensed Applications and functions electrician. Maximum floor temperature setting Neon light indicatior (LED) Installation instructions Installing the floor sensor for the Devireg™ 530 and 532 Placement of the Devireg™ 530, 531, and 532 Connection diagrams for the Devireg™... -
Page 4: Applications And Functions
1. Applications and Functions The Devireg™ 530 Series is a line of electronic thermostats used for control of floor heating. The Devireg™ 530 Is used for the sensing of floor temperatures in a floor warming system The Devireg™ 531 This thermostat is supplied with a built-in air sensor for control of the desired air temperature only. -
Page 5: Maximum Floor Temperature Setting
2. Maximum floor temperature setting Maximum floor limiter is preset at the factory to 35°C For wooden floor constructions DEVI™ recommend for cable temperature safety. the temperature is limited to a maximum of 30°C. Maximum limiter setting for different floor... - Page 6 3. Neon light indications (LED) Is used for setting the thermostat to frost protection The Devireg™ 530 series has a LED indicator above mode, i.e. keeping the room/floor temperature the 2 pole safety switch (see illustration). (depending on type of thermostat) at 5°C. The LED has four indications: •...
-
Page 7: Installation Instructions
4. Installation instructions When installing a thermostat from Devireg™ 530 Series, you must first remove the front cover. To remove the front cover, gently press the release tabs in the vents, at both sides and then pull off the front. You do not need to remove the temperature dial. - Page 8 The sensor conduit must be placed in between two If the supplied floor sensor is too short, longer ones cable runs. can be purchased from you local DEVI supplier or it can be extended upto 50m using double insulated To avoid cracks in the concrete floor you must ensure that the floor is completely hardened before cable .
-
Page 9: Placement Of The Devireg™ 530, 531, And 532
6. Placement of Devireg™ 530, 531, and 532 Installation height, typically between 1-1.5m especially when Devireg™ 531/532 is used. In damp rooms it should be installed on an even surface in accordance with AS/NZ 3000. At least 500mm away from windows/doors that will be left open occasionally. - Page 10 If being used as an air sensing thermostat then it should not be on a cavity wall where it can be affected by draughts. Not on the inner side of a wall facing the outside.
-
Page 11: Connection Diagrams For The Devireg™ 530, 531, And 532
7. Connection diagrams for Devireg™ 530, 531, and 532 Maximum temperature Devireg™ 530 Devireg™ 531 Devireg™ 532 limiter setting Max.Load Max.Load Max.Load 15 A 15 A 15 A LOAD LOAD LOAD LOAD LOAD LOAD 20-50°C 5-45°C 5-35°C 5-35°C NC = no connection (do not use) NC = no connection (do not use) NC = no connection (do not use) -
Page 13: Trouble Shooting
8. Trouble shooting No light on thermostat 2) Mains voltage (terminal 1 and 3) If there is no light on the thermostat after turning it Ensure that supply voltage 240v is at terminals 1 on then check that the residual current device (RCD) and 3. - Page 14 4) Heating cable (terminal 2 and 4) 5) External sensor input: NTC (only for Devireg™ 530 Disconnect the heating cable from terminal 2 and 4 and™532) on the thermostat. Disconnect the external NTC sensor 5 and 6 on the Measure the resistance of the heating cable with an thermostat.
- Page 15 Fault: Constant heat Floor sensor open circuit Relay constantly on If the floor sensor (NTC) is disconnected or open Measure the voltage at terminal 2 and 4, with the circuited the thermostat will be constantly off (due to temperature turned right down (that is no green light the sensor interrupt, the LED will flash green).
-
Page 16: Technical Specifications
9. Technical specifications for Devireg™ 530, 531, and 532 Operation voltage 240 VAC +10/ -20, 50 Hz Power consumption Max. 0.25W Relays: • Resistive load 240V ~ 15A • Inductive load cos φ = 0.3 Max. 4A Sensing unit NTC 15 kOhm at 25°C Sensing values: •... - Page 17 Temperature range: NOT OPERATING TEMPERATURES 5-35°C • 530 5-35°C • 531 • 532 5-35°C, floor limiter. 20-50° C air temperature. Sensor failure monitoring The thermostat has a built-in monitoring circuit, which will switch off the heating if the sensor is disconnected or short-circuited.
- Page 18 TEN (10)YEARS from the date of purchase and faults caused by incorrect installation,damage by others, misuse, all other DEVI products for aperiod of TWO (2) YEARS, from misapplication, incorrect voltage,lightning, or incorrect design the date of purchase.DEVI warrants its products against defects by others, or where payment is indefault.
- Page 19 Warranty as supplied by DEVI™ Denmark You have purchased a DEVI heating system which we are sure will further cost to the customer. In the case of faulty Devireg™ serve to improve the comfort and economy of your home. thermostats, DEVI reserves the right to repair the unit free DEVI provides a complete heating solution with deviflex™...
- Page 20 DEVI™ Warranty Certificate DEVI™ Warranty Certificate The DEVI™ Guarantee is granted to: Name: Address: Postal code: Phone: Please observe! In order to obtain the DEVI ™ Guarantee, the following must be carefully filled in. See other conditions on previous page.
