Accessories - Icom iF3011 Instruction Manual

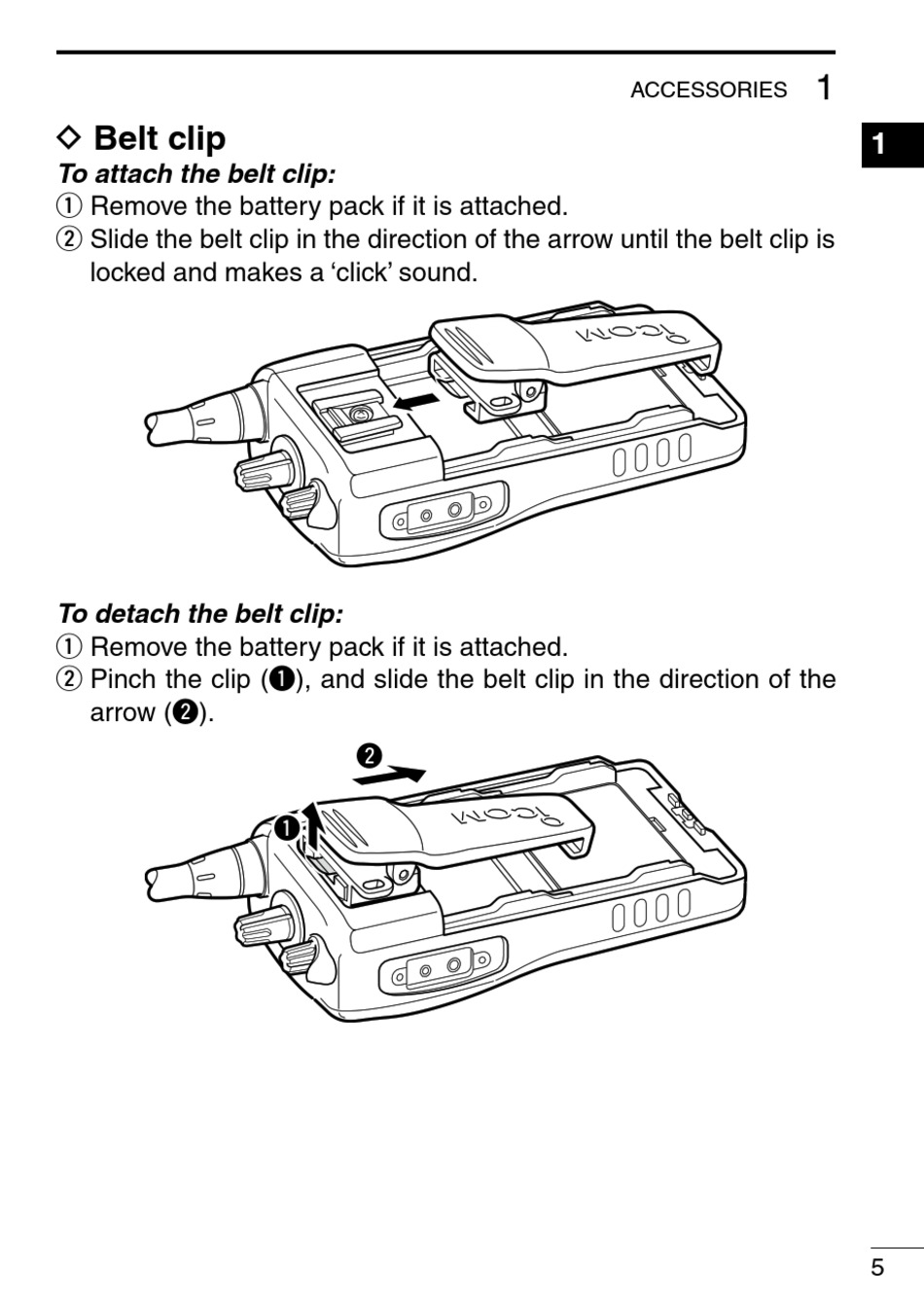

D Belt clip
To attach the belt clip:
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt clip is
locked and makes a 'click' sound.
To detach the belt clip:
q Remove the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of the
arrow (w).
w
q

ACCESSORIES

1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
5
