250-8600 2004*-2013 Ford Latch Camera Installation Instructions

Parts Identification

Testing & Reassembly
CAUTION: To minimize risk of injury from contact with the monitor during an accident,
always wear your seat belt.
Item Qty.
Part Number
1
1
250-8600
2
1
250-8550
4
1
250-8505
5
1
250-8598
* Some 2004-2006 model year vehicles will require the removal a small, metal tab from the tailgate
handle opening in order to accommodate your new camera integrated handle. For assistance or
inquiries, please call Rostra Customer Service at 800-782-3379.
Form #5391, Rev. A, 12-12-12
Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com
REARSIGHT CAMERA SYSTEM

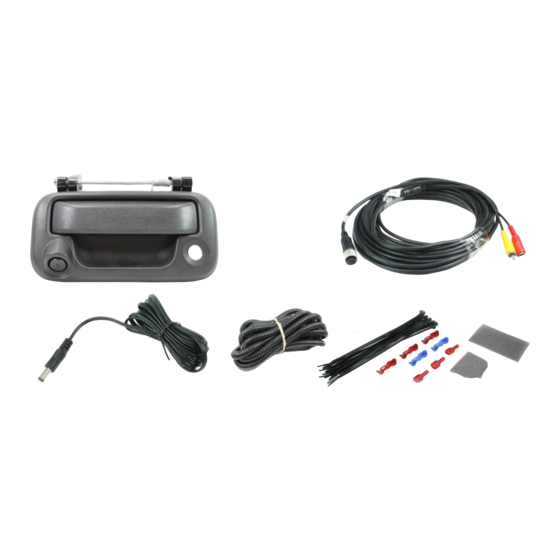

Parts Identification
Description
Latch Camera
Truck Extension Harness
Male DC Power Harness
Sack Parts: Tie Straps, T-taps, Foam Tape
Page 1
Page 2
Page 3
Page 4
Page 4
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 250-8600 and is the answer not in the manual?

Questions and answers

Related Manuals for Rostra 250-8600

Summary of Contents for Rostra 250-8600

  • Page 1 For assistance or inquiries, please call Rostra Customer Service at 800-782-3379. Form #5391, Rev. A, 12-12-12 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 1...
  • Page 2 CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before beginning installation, to avoid unintended air bag deployment. Note and record any anti- theft radio codes prior to disconnecting. Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 2...
  • Page 3 4. Connect the solid black wire from harness 250-8505 to a chassis ground point. 5. Connect the black with white stripe wire from harness 250-8505 to a 12-volt reverse power source. Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 3...
  • Page 4 If the driver does not wish for gridlines to be included, simply locate loop wire connected to the camera harness (figure 1) and cut it in half (figure 2). Figure 1 Figure 2 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 4...
