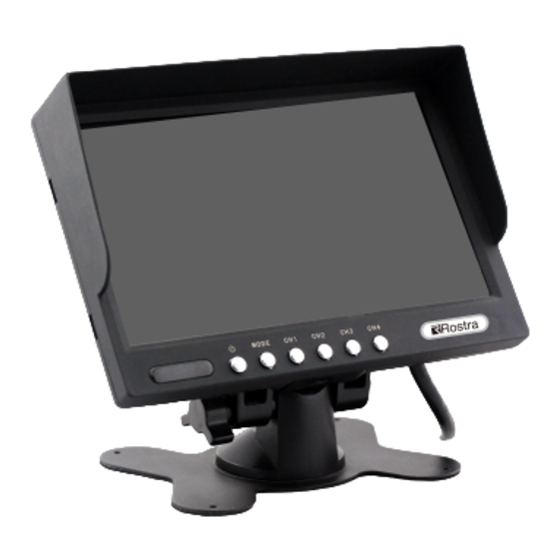

250-8222/8223 QUAD VIEW MONITOR
BEFORE INSTALLATION PLEASE READ THIS MANUAL, AFTER
INSTALLATION LEAVE WITH THE VEHICLE FOR THE END USER.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rostra 250-8222
Summary of Contents for Rostra 250-8222
- Page 1 3056 NC HWY 5 ABERDEEN NC. 28315 800-782-3379 All instructions, warranties and other collateral documents are subject to change at the sole discretion of Rostra Accessories, 250-8222/8223 QUAD VIEW MONITOR Inc. For the latest available information or product literature, visit www.rostra.com and click on the support tab.
-
Page 2: Wiring Connections
Controls & Features Wiring Connections RED + 12-24 Vdc BLACK - Ground BROWN CH1 Trigger - Front GREEN CH2 Trigger - Rear BLUE CH3 Trigger - Left GREY CH4 Trigger - Right CH 1 A/V Input 8. Sunshield Remote MUST be used for settings menu operation. CH 2 Video Input CH 3 Video Input CH 4 Video Input... - Page 3 Selects Picture, Volume, Mirror Image, Language, Delay, Adjusts the Volume from Camera 1 1 Channel Audio On Input #1 Mirror: Stand Type Bracket Included 250-8222, Windshield Mount 250-8223, Select Normal or Mirror image on this camera. System: Included, Fixed, Non-Removable...
- Page 4 1: Find a location for the mount, Rostra does not recommend using mounts with double sided 4: Turn the thumb screw clockwise to tighten into place at the desired height. tape only on monitors. The Monitor may come loose and be a hazard or get damaged. If using this type of mount, use screws to securely attach the base.
- Page 5 OF MANY SAFETY FEATURES AND THE DRIVER HAS THE RESPONSIBILITY TO ALWAYS INSURE SAFE OPERATION OF THE VEHICLE. ALWAYS CONSULT A PROFESSIONAL INSTALLATION TECHNICIAN TO INSURE THE INSTALLATION MEETS ALL LOCAL AND FEDERAL LAWS . SEE WWW.ROSTRA.COM FOR WARRANTY INFORMATION.
