250-8308-TC-LCH 2005-2014 TOYOTA TACOMA CMOS Tailgate Handle Camera & Mirror
Parts Identification
System Layout
Mirror Installation
Camera Installation
Testing
Reassembly
Installation Tips
CAUTION: To minimize risk of injury from contact with the monitor during an accident,
always wear your seat belt. It is advisable to disconnect the negative battery cable for 3
minutes before beginning installation to avoid unintended air bag deployment. Note and
record any anti-theft radio codes prior to disconnecting.
Item Qty.
Part Number
1
1
250-8610
2
1
250-8208
3
1
250-8550
4
1
250-8505
5
1
250-8598
* Some 2004-2006 model year vehicles will require the removal of a small metal tab from the tailgate
handle opening in order to accommodate your new camera integrated handle. For assistance or
inquiries, please call Rostra Customer Service at 800-782-3379.
Form #5461 Rev. A 10/02/2013
Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com
REARSIGHT CAMERA SYSTEM

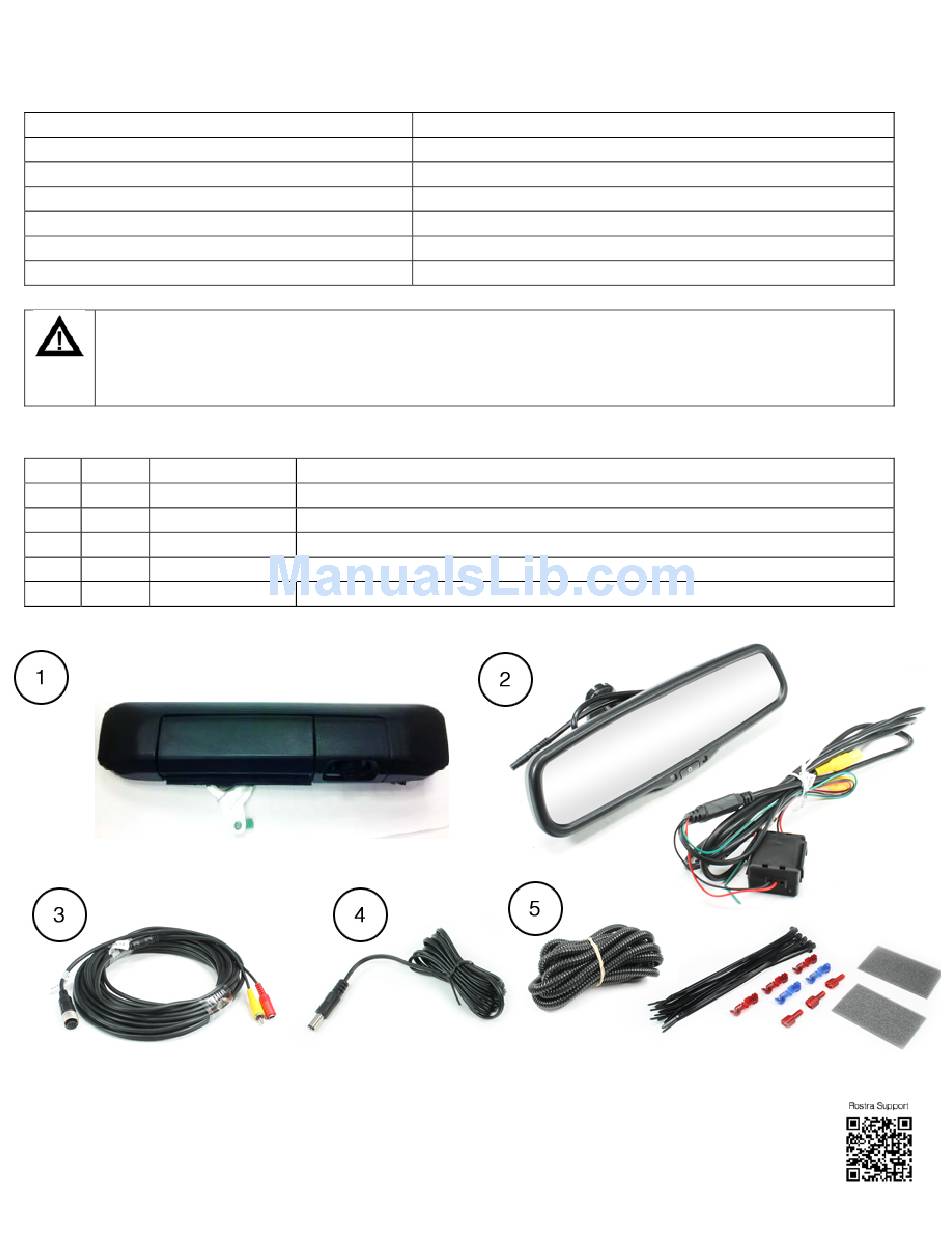

Parts Identification
Description
Latch Camera
4.3" LCD Mirror/Monitor
Truck Extension Harness
Male DC Power Harness
Sack Parts: Tie Straps, T-taps, Foam Tape
Page 1
Page 2
Page 2
Page 3
Page 4
Page 4
Page 4
Page 1
Advertisement
Related Manuals for Rostra 250-8308-TC-LCH
Summary of Contents for Rostra 250-8308-TC-LCH
- Page 1 For assistance or inquiries, please call Rostra Customer Service at 800-782-3379. Page 1 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
-
Page 2: System Layout
5. Connect the Green Wire to the reverse power circuit at the fuse panel or the rear lamp. Page 2 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com... -
Page 3: Camera Installation
3. Connect the solid black wire from harness 250-8505 to a chassis ground point. 4. Connect the black with white stripe wire from harness 250-8505 to a 12-volt reverse power source. Page 3 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com... - Page 4 If the driver does not wish for gridlines to be included, simply locate loop wire connected to the camera harness (figure 1) and cut it in half (figure 2). Page 4 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 5 Figure 1 Figure 2 Page 5 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 6 Page 6 Form #5461 Rev. A 10/02/2013 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
