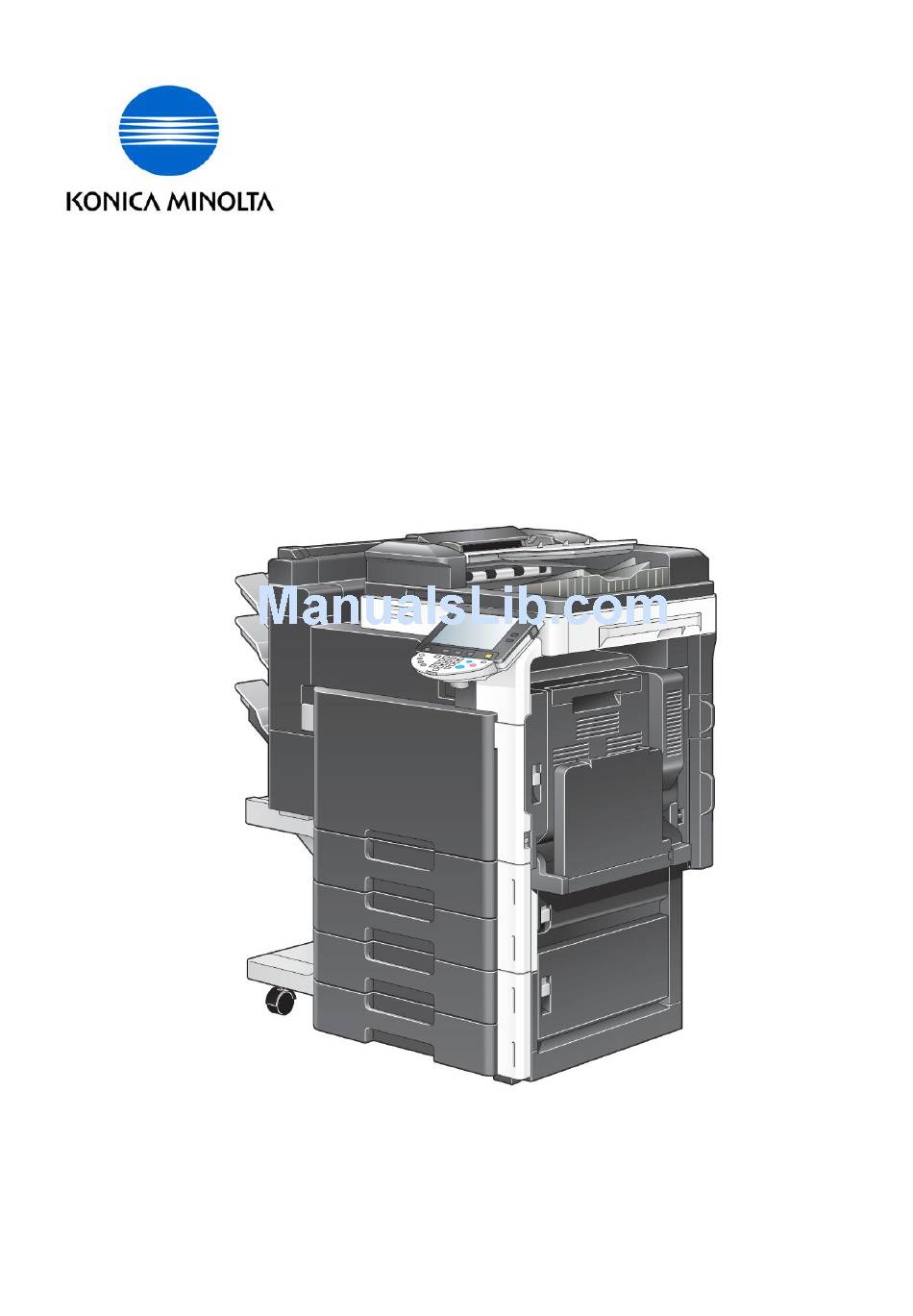

bizhub 501 / 421
Shortcut Manual
For detail information，Please refer to the User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta bizhub 501

Summary of Contents for Konica Minolta bizhub 501

  • Page 1 501 / 421 Shortcut Manual For detail information，Please refer to the User Manual...
  • Page 2 Touch Panel Main Power Power Mode Memory Utility/Counter Reset Interrupt Stop Proof Copy 10. Start 11. Panel 12. “C” Clear 13. Keypad 14. Help 15. Enlarge Display 16. Accessibility 17. Power Save 18. Access 19. Brightness 20. User Box 21. Fax / Scan 22.
  • Page 3 Basic (I) -- Density Adjust Image Density Or Adjust Background Density Basic (II) -- Paper Change Bypass Tray Setting Touch Basic, Touch Paper Select Bypass Tray Touch Change Tray Settings Select Paper Type Input paper size Touch Standard Size Touch Custom Size input (Length) X and (width) Y，e.g.
  • Page 4 7 Basic (III) -- Zoom Touch ZOOM Select fixed zoom size Touch default zoom ratios e.g.︰A3  A4 default zoom ratio is 0.707 Touch- + to change zoom ratio Touch XY Zoom Using the keypad，type in the desired zoom ratio then touch OK Sort/Group Touch Finishing Touch Sort or Group...
  • Page 5 (Optional Function) Staple 1. Touch Finishing 2. At Staple select Corner or 2position 3. Touch position Setting 4. Press Start Punch 1. Touch Finishing 2. At Staple select 2 Hole or 4 Hole 3. Touch position Setting 4. Press Start Fold/Bind 1.

  • Page 6: Original ＞ Copy

    Basic (IV) --Duplex/Combine Combine Select 1. Touch 2 in 1 or 2. Touch 4 in 1/ 8 in 1 To reduce the size from 2 / 4 / 8 sheets originals into 1 sheet of copy Original ＞ Copy a 1-sided > 2-sided Single-sided Original to Double-sided Copy b.
  • Page 7 Originals Setting 1. Touch Mixed Original automatically detect the documents size and automatically choose paper tray 2. Touch Z-Folded Original (Optional Function) 3. Touch Binding Direction -- copy-binding direction 4. Touch Original Direction – select original direction 4. Touch Original Size -- select original size Quality/Density 1.

  • Page 8: Ohp Interleave

    Application - OHP Interleave 1. Touch Application 2. Touch Sheet /Cover /Chapter Insert 3. Touch OHP Interleave 4. Select inserting paper tray 5. Load OHP transparencies into the bypass tray 6. Touch OK 7. Press Start...

  • Page 9: Cover Mode

    - Cover Mode Touch Application Touch Sheet /Cover /Chapter Insert Touch Cover Mode Select Front Cover or Back Cover Touch Ok Press Start - Insert Sheet 1. Touch Application 2. Touch Sheet /Cover /Chapter Insert 3. Touch Insert Sheet 4. Touch Copy or Blank select inserted pages are printed or not 5.

  • Page 10: Insert Image

    - Insert Image 1. Touch Application 2. Touch Sheet /Cover /Chapter Insert 3. Touch Insert Image 4. Select inserted image pages number 5. Touch Ok 6. Press Start 7. Final，Touch Finish then press Start - Chapter (Duplex Only) 1. Touch Application 2.

  • Page 11: Program Job

    - Program Job 1. Touch Application 2. Touch Sheet/Cover/Chapter Insert 3. Touch Program Jobs 4. Touch OK 5. Input copy setting 5. TouchStart 6. TouchFix, TouchOK 7. Touch Change Setting input next job setting, TouchOK 8. TouchStart 9. Repeat step6-8, until finishing scan all document 10.

  • Page 12: Book Copy

    - Book Copy Touch Application Touch Book Copy / Repeat Touch Book Copy Touch Separation，or Touch Front Cover/Back Cover Open book，Touch Start Until finish scan ，Touch Finish Touch Start If select Front Cover, scan︰  The front cover is scanned, and all page spreads are scanned in order If select Front Cover &...

  • Page 13: Image Adjustment

    - Image Adjustment Touch Application Touch Image Adjust TouchCentering Touch Start - Image Repeat Touch Application Touch Book Copy / Repeat TouchImage Repeat Select With Margin / Without Margin Touch Set Range Touch Custom Size ， Touch X input width and Touch Y input the width Touch OK Touch Start...

  • Page 14: Page Separation

    - Page Separation 1. Place Original document on the feeder 2. Touch Application 3. Touch Book Copy / Repeat 4. TouchPage Separation 5. TouchLeft Bind/Right Bind 6. Touch OK 7. Touch Start - Page Margin Touch Application Touch Page Margin select Top , Left or Right Input Adjust Value from the number pad...

  • Page 15: Frame Erase

    - Frame Erase Touch Application Touch Erase Touch Frame Erase or Select the edge and input the width Touch OK Touch Start - Center Erase 1. Touch Application 2. Touch Erase 3. Touch Center Erase Touch+/- 4. Touch OK 5. Touch Start - Non-Image Area Erase 1.
  • Page 16 - Booklet Touch Application Touch Booklet Select left bind or right bind Left Binding /Right Binding Touch Start - Date / Time Touch Application Touch Stamp/Composition Touch Date / Time Touch Print Position to change the print position Touch OK Touch Start...

  • Page 17: Stamp Repeat

    - Page # Touch Application Touch Stamp/Composition Touch Page Number Enter Starting Page Number from number pad Touch Print Position to change Touch OK Touch Start - Stamp Touch Application Touch Stamp/Composition TouchStamp Select Stamp TouchPrint Position Touch OK Touch Start - Stamp Repeat Touch Application Touch Stamp/Composition...

  • Page 18: Registered Overlay

    - Overlay Touch Application Touch Stamp/Composition Touch Overlay Place the Overlay Image on the glasses Touch OK Touch Start 7. Place the overlaid Document on the glasses. 8. Touch Start - Registered Overlay Touch Application Touch Stamp/Composition Touch Registered Overlay Select the registered overlay image (if no registered image, touch Register Overlay Image to...
  • Page 19 - Watermark Touch Application Touch Stamp/Composition Touch Watermark Select watermark Touch OK Touch Start - Distribution Control Number 1. Touch Application 2. Touch Stamp/ Composition 3. Touch Distribution Control Number 4. Enter 4 digit distribution number 5. Touch OK 6. Touch Start...
  • Page 20 Delete the copy jab in the Waiting List Touch Job Details Touch Print and then touch Current Jobs Select the job you want to delete Touch Delete Touch Yes to delete printing job...
  • Page 21 Abbreviated Destinations E-mail / Fax 1. Press Utility/Counter 2. Touch 1. One Touch/User Box Registration 3. Touch 1. Create One Touch Destination 4. Touch 1.Address Book 5. Touch E-mail / Fax 6. Touch New 7. Touch Name，Input name，Touch OK 8. Touch Address input e-mail address or Fax number，Touch OK 9.

  • Page 22: Group Registration

    Group Registration 1. Press Utility/Counter 2. Touch 1. One Touch/User Box Registration 3. Touch 1. Create One Touch Destination 4. Touch 1.Group 5. Touch New 6. Touch Name，Input group name，Touch OK 7. Touch Select Group (If fax, select Fax) Touch OK...
  • Page 23 Scan To Email / Send Fax Press Fax/Scan Touch Address Book Select one-touch Index and Name Touch Scan Settings Original Type select original type Simplex/Duplex select original single-sided or double-sided C. Resolution D. File Type Density Quality Adjustment Touch check following setting Destination Settings Check Scan Settings...

  • Page 24: Remove Jammed Paper

    Remove Jammed Paper Touch illustration, Display the method of removing the jammed paper *Panel display the jammed area...
  • Page 25 Replace Toner *If toner near empty，Screen will show toner empty message Open the machine’s upper front door, pull out empty toner cartridge toner then insert the new toner...
  • Page 26 Display the Job History List Touch Job Details Touch Send Touch Job History Touch Comm. List Select report Type Activity Report TX Report C. RX Report Press Start...

  • Page 27: Supplementary Notes
