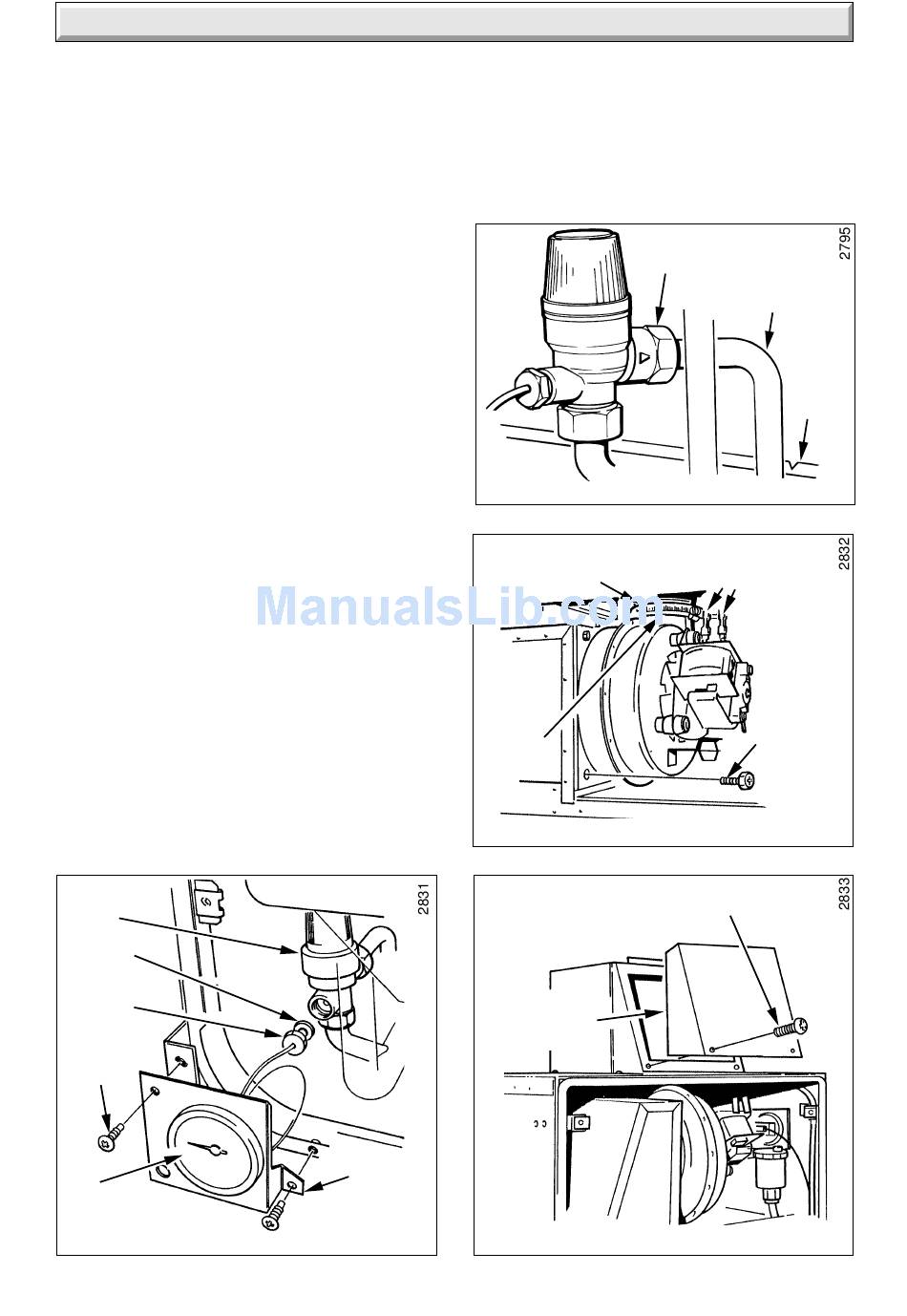

Flue Fixing; Securing Screw; Clip; Diagram 10.3 - Glow-worm swift flow 100 Installation Instructions Manual

10.7 Flue Fixing

Remove the air box access plate from the front of the air
box, see diagram 10.4.
Pass the prepared air box and flue assembly into and
through the wall sleeve.
Note: The foam seal is a tight fit in the wall sleeve and
the flue system should not be inserted unless the cement
has fully set or it can be held from the other side.
Place the air box gasket supplied in the loose items pack,
between the boiler top and airbox.
Loosely fit the air box to the boiler.
Using the air box access hole, fit the flue elbow onto the
fan outlet and secure with the flue elbow clip, see

diagram 10.3.

MAKE SURE THAT THE FLUE DUCT REMAINS
ENGAGED IN THE TERMINAL.
Tighten the screws securing the air box to the top of the
boiler taking care not to damage the air box gasket.
Refit the air box access plate and gasket
Make sure that the ductings do not slope down towards
the boiler.
Make the wall good internally around the air duct.
SAFETY
VALVE
SEALING
WASHER
PRESSURE
GAUGE
CONNECTION
SECURING
SCREW(2)
PRESSURE
GAUGE
220650B
1 0 B o i l e r F i x i n g
FLUE
ELBOW

CLIP

AIR BOX
ACCESS PLATE
AND GASKET
PRESSURE
GAUGE
BRACKET
Diagram 10.2
20
UNION
CONNECTION
FAN
ELECTRICAL
ELBOW
CONNECTORS
SECURING
SCREW
DISCHARGE
PIPE
'NOTCH'
Diagram 10.3
FAN
SECURING
SCREW (2)
Diagram 10.4
Diagram 10.5
