4.7 Bypass

It is ESSENTIAL that a bypass of 22mm od minimum is
fitted to all installations. The bypass must have a
lockable valve, "B" in diagram 4.2, incorporated in a
position so that inadvertent closure is not possible.
The bypass MUST be fitted before any system control.
A radiator bypass is NOT recommended.

4.8 Make Up

Provision should be made for replacing water lost from
the system using a make up bottle mounted in a position
higher than the top point of the system, connected
through a non-return valve to the return side of the
heating circuit, see diagram 4.2.
Alternatively, provision for make up can be made by
pre-pressurisation of the circuit.
220650B
4 H e a t i n g S y s t e m
ADDITIONAL
EXPANSION
VESSEL
(if required)
HEATING
CIRCUIT
10
3-LITRE
MAKE-UP
BOTTLE
(if required)
NON-RETURN
VALVE BOILER
AUTO AIR
VENT
MIN. 22mm
DIA. BY-PASS
RETURN
'B'
BY-PASS
'A'
VALVE
FLOW CONTROL
VALVE
DOMESTIC
WATER
FILLING
POINT
DRAIN
POINT

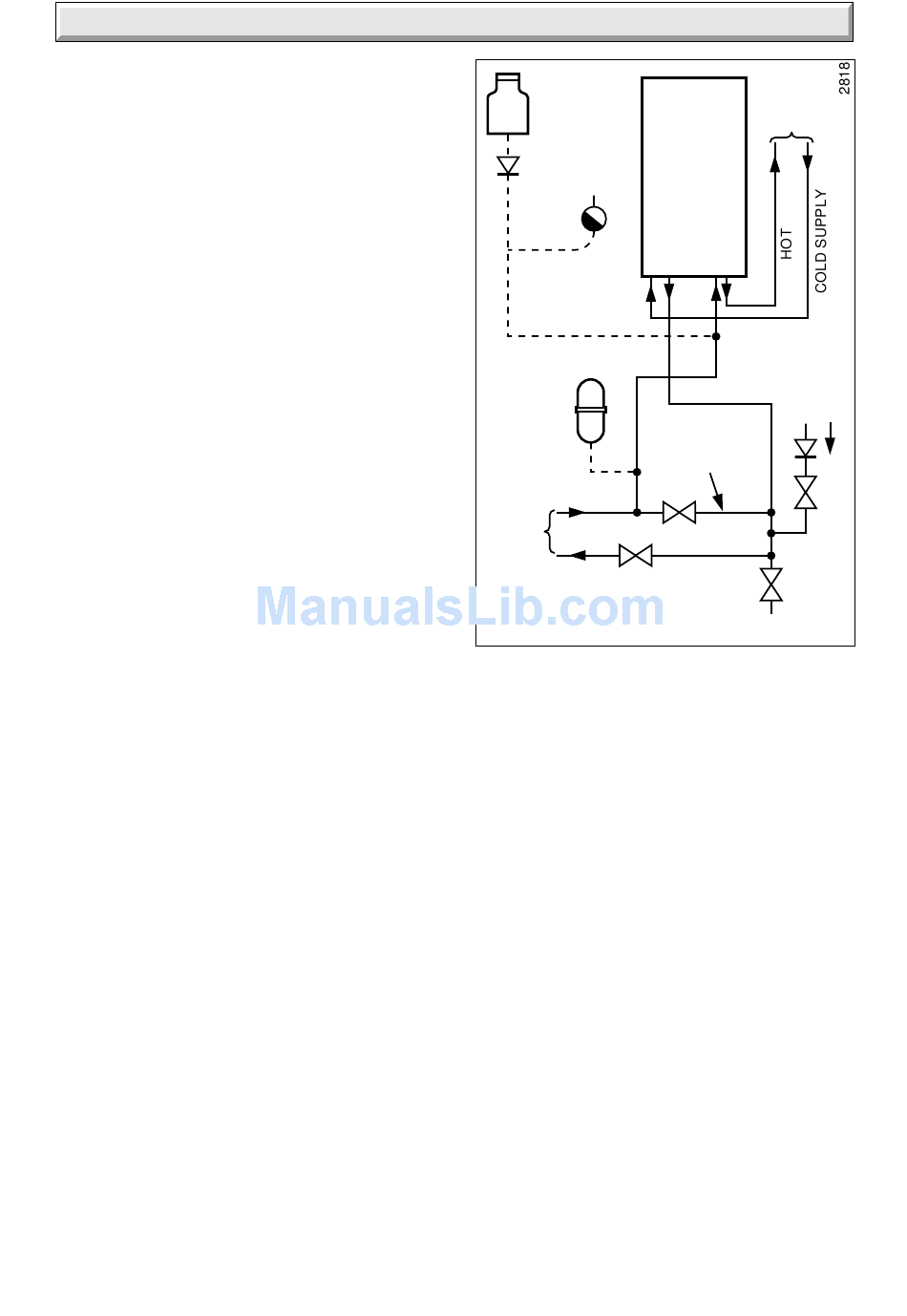

Diagram 4.2
