General; Gas Testing And Certification; Ce Mark - Glow-worm swift flow 100 Installation Instructions Manual

63
101
KEY:
22mm COMPRESSION
CENTRAL HEATING
15mm COMPRESSION
DOMESTIC WATER
1 / 1 /
Rc ( in. BSPT)
2 2
GAS CONNECTION
ALL DIMENSIONS in MILLIMETRES
WATER
THROTTLE
MINI
EXPANSION
FANNED
VESSEL
FLUE
EXPANSION
VESSEL
HEAT EXCHANGER
MAIN BURNER
FLOW
SWITCH
SAFETY
VALVE
GAS VALVE
GAS
C.H.
D.H.W.
SUPPLY
FLOW
COLD
INLET
SAFETY
VALVE DISCHARGE
220650B
1 G e n e r a l
331
168
AUTOMATIC
AIR VENT
PILOT
BURNER
PUMP
PRESSURE
SWITCH
C.H.
D.H.W.
RETURN
HOT
OUTLET

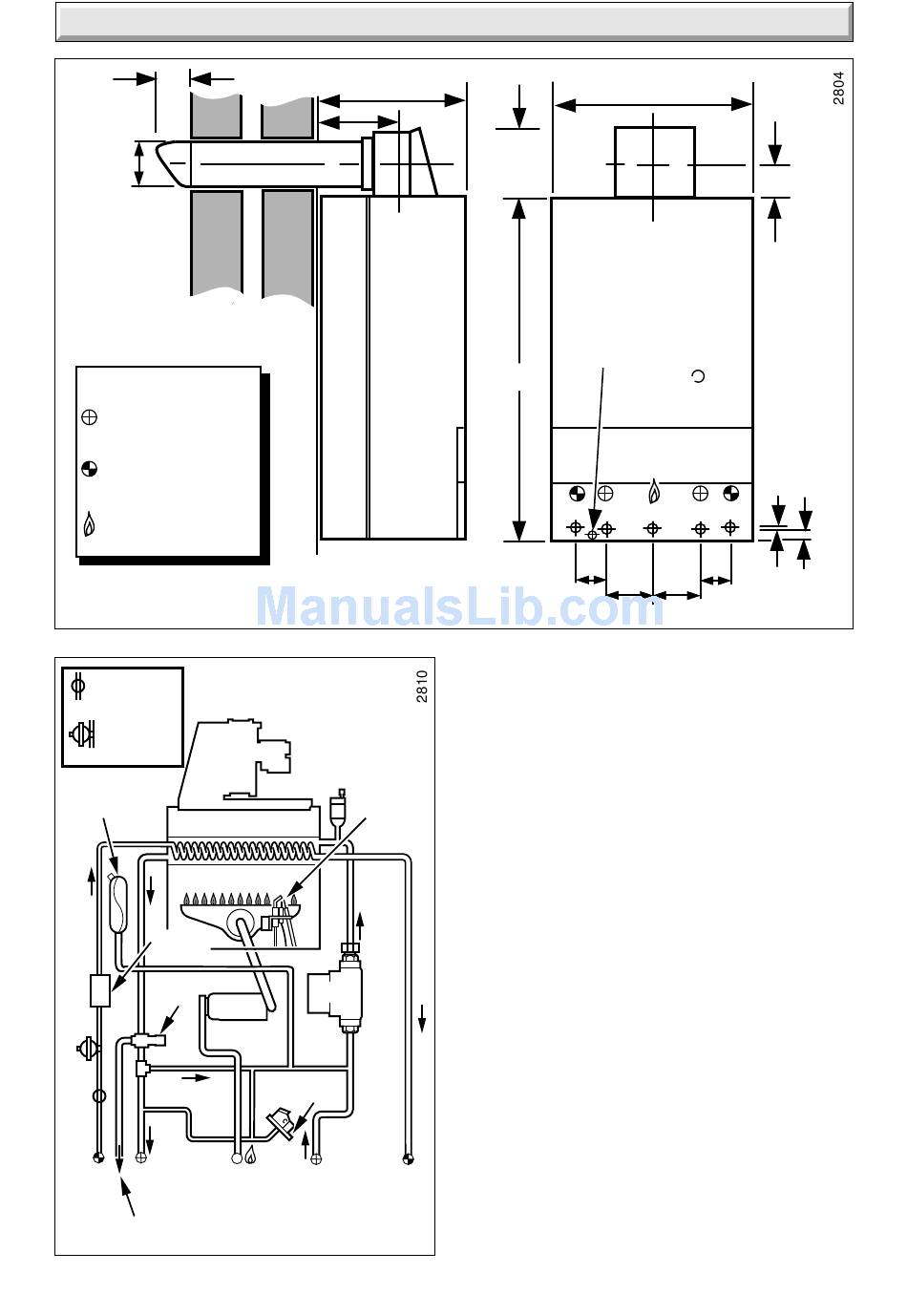

Diagram 1.2
133
SAFETY
VALVE
DISCHARGE
783
66
107
The instructions consist of three parts, Installation,
Servicing and Instructions for Use which includes the
Guarantee Registration Card. The instructions are an
integral part of the appliance and must, to comply with
the current issue of the Gas Safety (Installation and Use)
Regulations, be handed to the user on completion of the
installation.

Gas Testing and Certification

The boiler is tested and certificated for safety and
performance. It is, therefore, important that no alteration
is made to the boiler unless approved, in writing, by
Hepworth Heating Ltd.
Any alteration not approved by Hepworth Heating Ltd.,
could invalidate the certification, boiler warranty and
may also infringe the current issue of the Statutory
requirements.

CE Mark

The CE mark on this appliance shows compliance with:
1. Directive 90/396/EEC on the approximation of the
Laws of the Member States relating to appliances
burning gaseous fuels.
2. Directive 73/23/EEC on the harmonization of the
Laws of the Member States relating to electrical
equipment designed for use within certain voltage
limits.
2
450
63
25
66
2.5
107
Diagram 1.1
