Multitech DataTalker DT101 Owner's Manual page 57

MMH2834 Modem, Leased Line
Connect the RJ-11 phone cable supplied with the DataTalker from the internal modem
LEASED connector on the back panel to the leased line connection.
RJ-11 Phone Cable
VOICE/FAX CHANNEL 2
DATA/COMMAND
DIAL-UP LEASED DIGITAL E&M FXO FXS
RS232C/V.35
EXTERNAL COMPOSITE
MODEM DSU/TA VOICE/FAX CHANNEL 1
INTERNAL COMPOSITE
Internal Modem
LEASED Connector

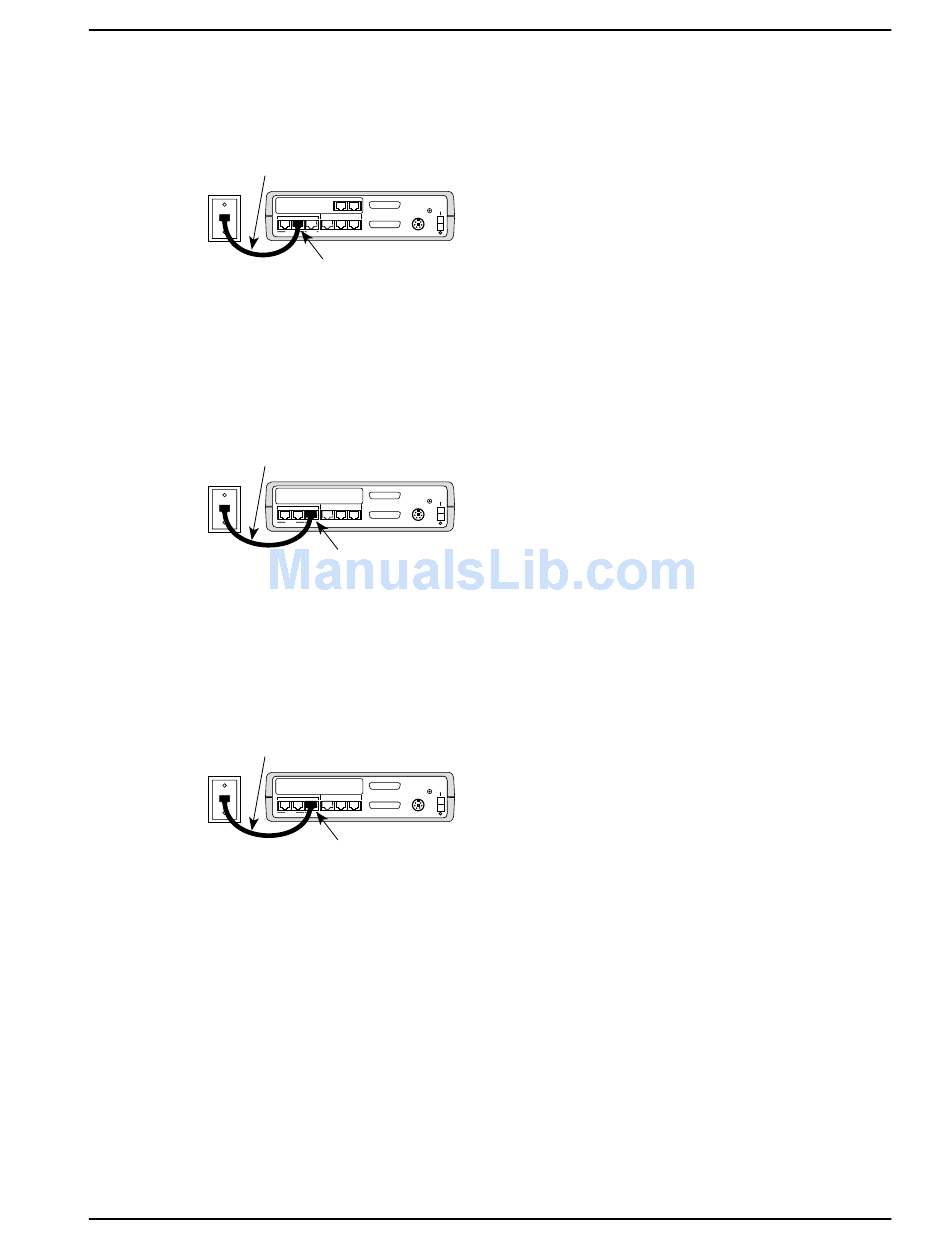

Figure 5-3. Leased Line Connection
DSU
Connect the RJ-48 phone cable supplied with the DataTalker from the internal DSU/TA
DIGITAL connector on the back panel to the digital line connector.
RJ-48 Cable
DATA/COMMAND
E&M FXO FXS
DIAL-UP LEASED DIGITAL RS232C/V.35
EXTERNAL COMPOSITE
MODEM DSU/TA VOICE/FAX CHANNEL 1
INTERNAL COMPOSITE
Internal DSU/TA
DIGITAL Connector
Figure 5-4. DSU Line Connection
ISDN Terminal Adapter
Using the RJ-48 cable supplied with the DataTalker, connect the internal DSU/TA DIGITAL
connector on the back panel to the ISDN line jack.
RJ-48 Cable
DATA/COMMAND
DIAL-UP LEASED DIGITAL E&M FXO FXS
RS232C/V.35
EXTERNAL COMPOSITE
MODEM DSU/TA VOICE/FAX CHANNEL 1
INTERNAL COMPOSITE
Internal DSU/TA
DIGITAL Connector
Figure 5-5. ISDN Terminal Adapter Line Connection
GND
POWER
GND
POWER
GND
POWER
Chapter 5 - Installation
