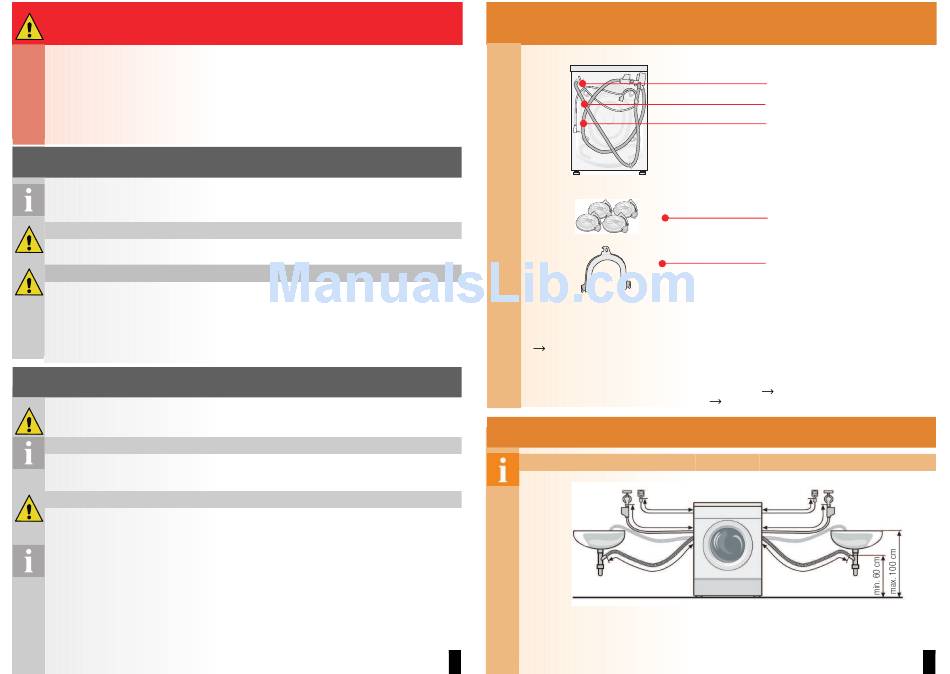

Schulthess Spirit Eco WA 4750 Installation Instructions

Safety instructions

– The washing machine is heavy - take care when lifting.
– Caution: frozen hoses may rip/burst. Do not install the washing machine in areas exposed
to frost or outdoors.
– The washing machine could be damaged. Do not lift the appliance by protruding
components (e.g. the washing machine door).
– In addition to the instructions provided in this document, special regulations from the
relevant water and electric utility companies may apply.
– If in doubt, have a technician connect the appliance.
– Lay hoses and cables in such a way that there is no risk of tripping.

Installation surface

– The machine must be stable so that it does not move around.
– The installation surface must be firm and level.
– Soft floors/floor coverings are not suitable.
Installation on a pedestal
– The feet of the washing machine must be secured with holding brackets*.
* order no. WMZ2200
Installation on a wood joist floor
– If possible, place the washing machine in a corner.
– Screw a water-resistant wooden board (min. 30 mm thick) to the floor.
– The feet of the washing machine must be secured with holding brackets*.
* order no. see above

Installing the appliance

Install the appliance before connecting it to the power supply.
Installation in a kitchenette (underneath the worktop or fitted in a cabinet)
– Recess width of 60 cm required.
– Only install the washing machine underneath a continuous worktop that is securely
connected to adjacent cabinets.
Installation underneath the worktop
Risk of electric shock.
– Instead of the appliance covering plate, you must have a metal cover * fitted by an expert.
* order no. WMZ2420
– Recess width of 60 cm required.

Scope of delivery

Also required, depending on the connection:
– 1 hose clamp Ø 24-40 mm (exclusive dealers) to connect to a siphon
page 4; water connection.
Useful tools
– Spirit level for installation.
– Spanner with
WAF13: for loosening the transport safety devices
WAF17: for aligning the appliance feet

Hose and cable lengths

Left-hand connection
~
Available from specialist dealers/the after-sales service:
– Extension for Aqua-Stop or cold-water inlet hose (approx. 2.50 m).
order no. WMZ2380
1
Moisture inside the drum is
due to final testing.
Mains cable
Water outlet
Water inlet
Covers
Elbow
for fixing the drainage
hose in place
Page 3 and
Page 5.
or Right-hand connection
100 cm 145 cm
~ ~
145 cm 90 cm
~ ~
90 cm 140 cm
~
2
