Section 3 ... Loading Printer Paper

Impact Printer 2000I - Manually Installing Paper and Ribbon
§
Open the hinged paper supply
door to load paper or replace
the printer ink cartridge.
§
To unlock the top hinged
paper cover, hold the printer
with both hands and place
each thumb on the two
locking ribs located below
the grooved sections on the
top cover.
§
Push the locking ribs in-and-
up to open the paper door.

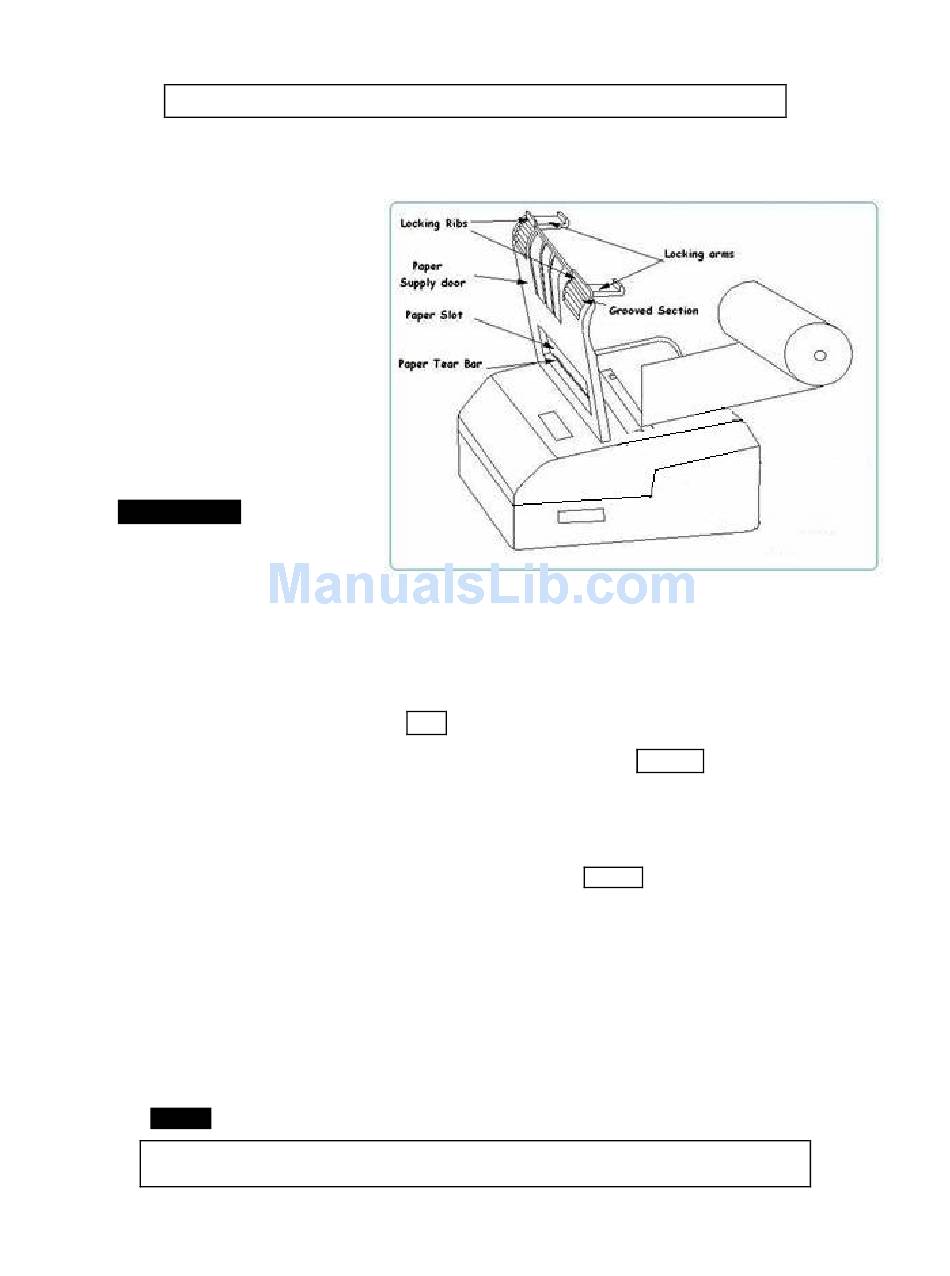

FIGURE 4
Loading printer paper
Impact Printer 2000I - Manually Installing Paper
§
Open the paper supply door by pushing up the locking ribs (figure 4).
§
Turn on the printer by pressing the ON switch.
§
Remove any paper remaining in the printer mechanism, using the
the paper in forward direction.
§
Unroll a leader from the new roll (about 3 inches); do not place roll in the printer at this time.
§
Place the straight edge of the leader just under the roller in the print head and feed about 3
inches of the new roll of paper into the print head using the FEED switch.
§
Place paper roll in the printer.
§
Feed the leading edge of the paper into the slot of the hinged cover.
§
Lower the hinged cover and lock.
§
Pull the 3 inches of paper forward against the teeth of the paper tear bar and pull to either side
to tear off the paper.
§
The printer is then loaded with paper and ready to use.
§
Caution
Ÿ
Do not REVERSE pull the paper out of the 2000i printer mechanism; this
will cause permanent damage to the print head.
5
.
FEED switch or pulling
