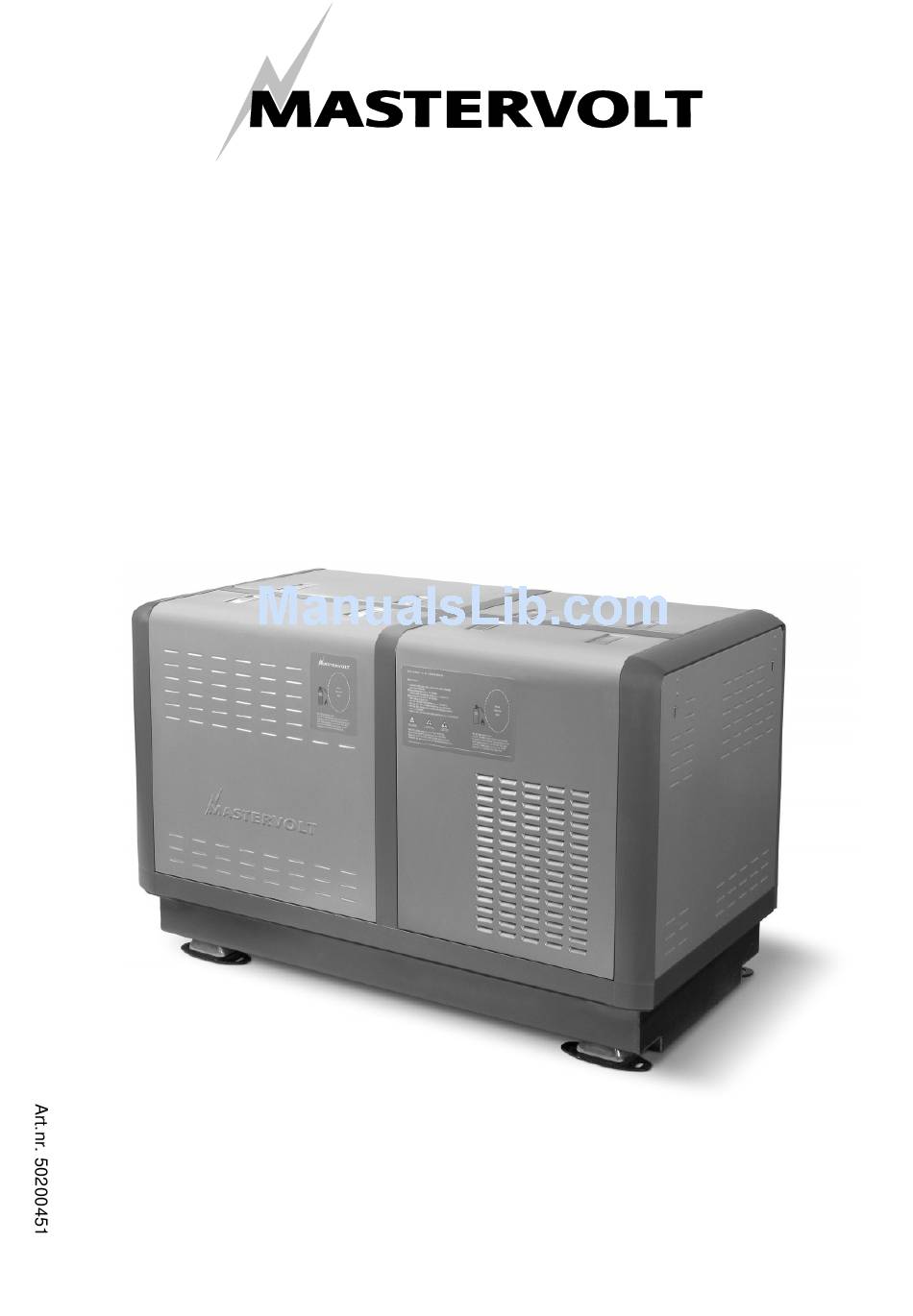

INSTALLATION MANUAL
WHISPER 25 ULTRA
- 1500 RPM -
Marine diesel generating set 230/400V / 50Hz
Digital Diesel Control
MASTERVOLT
Snijdersbergweg 93,
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
Fax.: +31-20-6971006
V3. November 2008
www.mastervolt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the whisper 25 ultra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastervolt whisper 25 ultra

Summary of Contents for Mastervolt whisper 25 ultra

  • Page 1 INSTALLATION MANUAL WHISPER 25 ULTRA - 1500 RPM - Marine diesel generating set 230/400V / 50Hz Digital Diesel Control MASTERVOLT Snijdersbergweg 93, 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 Fax.: +31-20-6971006 V3. November 2008 www.mastervolt.com...

  • Page 2: Table Of Contents

    AC wiring diagram Tri-Phase with AVR 230V / 400V 50Hz (Star) ..............27 AC wiring diagram Single Phase with AVR (Double Delta) ................28 Whisper remote panel ............................29 Whisper 25 ULTRA dimensions and footprint....................30 Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 3: Installation

    Figure 1: Mounting of the Whisper generating set. X = wrong, V = OK EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 4: Ventilation

    Bypass cooling water in Ø25.4mm Fuel in Ø8mm Exhaust connection Ø63mm Battery positive + 35mm2 Raw water inlet Expansion tank Battery negative - 35mm2 Rubber engine mounting Fig. 2 Connections Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 5: Fuel Supply

    1 Fuel return 2 Fuel supply 3 Prefilter / Water separator (optional) 5 Fuel Tank Fig. 3 Fuel supply EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 6 The return pipe should never be connected to the suction pipe or to other consumers of diesel fuel, such as the propulsion engine and heaters and return pipes Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 7: Cooling

    The hose that is in the 5 CM (2”) Fig. 6. Internal cooling system 4 Waterlock; 1 Water level; 5 Air vent; 2 Water/exhaust separator; 6 Water strainer; 3 Seacock; 7 Seacock. EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 8 On motorboats and on sailing boats the water scoop for a generating set should be fitted with the opening faced backwards to prevent water being forced in during sailing. Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 9 This leads to immediate engine problems and eventually severe damage! DAMAGE CAUSED BY THE INGRESS OF WATER IN THE ENGINE IS NOT COVERED BY GUARANTEE Fig. 9 Mastervolt siphon breaker EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 10: Exhaust System

    2 Exhaust outlet muffler; 3 Exhaust line Ø 63 mm (2½”); 4 Goose neck 5 Through-hull exhaust outlet Ø 63 mm (2½”); 6 Water level. Fig. 10. Exhaust system Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 11 Ø 2” (51 mm) Ø 2½” (63 mm) Figure 12: Only after the exhaust / water separator the exhaust hose may have a length of over 7.5 meter EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 12 Figure 13a: Water trap in exhaust system WRONG! Figure 13b: Water will collect in the hanging bend of the exhaust gas hose and will cause back pressure Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 13: Digital Diesel Control System (12 Volt)

    When a longer distance than 30m / 100ft is required, consult the Mastervolt service department for advice. Figure 14: Outlet direction Fig. 15 Remote control cable EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 14 GREEN BROWN YELLOW PINK PURPLE BLUE WHITE RED/BLUE GREY/PINK GREY BLACK SENSE BAT. 2 WARNING RELAY MAX. 150 mA Whisper Remote Panel Fig. 16 Remote box terminals Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 15 Settings 50230220 (160Ah) When one want to apply other settings than the factory settings refer to the DDC users manual, especially to the APPENDIX. EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 16: Ac Power System (230 / 400 Volt)

    To avoid problems with unbalanced loads one could apply a 400V 3 phase to 230 Volt single phase transformer. Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 17 When a ungrounded DC system or positive grounded DC system is applied the battery negative should not be connected to the main ships ground. EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 18: Installation Specifications

    Open the seawater inlet valve and check all water www.mastervolt.com. connections. Check if the strainer is installed on or Commissioning form available website: just above the seawater level. www.mastervolt.com. Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 19: Installation Specifications Whisper 25 Ultra

    Exhaust hose Ø 63 mm inner Water lock Ø 63 mm Water/gas separator Ø 63 - 51 - 63 mm Anti vibration mounts Included, art. nr. 50230552 EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 20: Installation Materials Whisper 25 Ultra

    Straight reducer male/female 3/4-1/2 50220050 Cooling water hose transp.spiral 25x33mm 1.5m 50220054 Cooling water hose transparant spiral 20x28 mm TOTAL 50230222 SYPHON BREAKER KIT 25 MM (1") Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 21 Stainless bent 45 degr 63mm 2-1/2" 50221542 Hose clamp heavy duty exhaust hose 63mm 50230153 Straight coupling Delta L 63 mm 50230152 Elbow coupling (45º) Delta L 63 mm EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 22 Hose clamp stainless 10-16 50222020 Copper fuel pipe per meter 50220063 Fuel hose per meter • Spare parts pos. article no description 50230092 Filter for strainer fuel/water separator Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 23 Terminal Cover BLACK 456N9V14 79006005 Batteryswitch ON/OFF with key 250A 6503003508 Cable lug 35mm² / M8 6503003510 Cable lug 35mm² / M10 TOTAL 50230220 BATTERY INSTALLATION KIT 160Ah EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 24 INSTALLATION SPECIFICATIONS Figure 24 Installation materials rubber mounting kit (standard included in the delivery of the Whisper 25 Ultra) Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 25: Diagrams & Drawings

    DIAGRAMS & DRAWINGS 3 DIAGRAMS & DRAWINGS DC wiring diagram Figure 25 DC wiring diagram Whisper 25 Ultra EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 26: Terminal Modes Whisper 25 Ultra 115V / 400V 50Hz

    DIAGRAMS & DRAWINGS Terminal modes Whisper 25 ultra 115V / 400V 50Hz Figure 26 Terminal modes 25U 115V-400V 50Hz Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 27: Ac Wiring Diagram Tri-Phase With Avr 230V / 400V 50Hz (Star)

    AC wiring diagram Tri-Phase with AVR 230V / 400V 50Hz (Star) * TO CONNECT NEUTRAL TO GROUND REFER TO 2.1.3 USER MANUAL WHISPER 25U Figure 27: AC wiring diagram Tri-Phase with AVR 230V / 400V 50Hz (Star) EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 28: Ac Wiring Diagram Single Phase With Avr (Double Delta)

    AC wiring diagram Single Phase with AVR (Double Delta) * TO CONNECT NEUTRAL TO GROUND REFER TO 2.1.3 USER MANUAL WHISPER 25U Figure 28: AC wiring diagram Single Phase with AVR (Double Delta) Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...

  • Page 29: Whisper Remote Panel

    Whisper remote panel Figure 29: Whisper remote panel The remote panel comes in a carton that can be used as a template to drill the mounting hole EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...

  • Page 30: Whisper 25 Ultra Dimensions And Footprint

    Without sound canopy • length 126 cm 115 cm • width 68 cm 60 cm • height 80 cm 75 cm • weight 580 kg 480 kg Copyright © 2008 Mastervolt / November 2008 / WHISPER 25 ULTRA / EN...
  • Page 31 NOTES NOTES: EN / WHISPER 25 ULTRA / November 2008 / Copyright © 2008 Mastervolt...
  • Page 32 Snijdersbergweg 93, 1105 AN Amsterdam, The Netherlands Tel : + 31-20-3422100 / F ax : + 31-20-6971006 www.mastervolt.com / info@mastervolt.com...
