Issue B1
Buttons on the BOP
Panel/Button Function
Indicates
Start motor
Stop motor
Change
direction
Jog motor
Functions
Access
parameters
Increase
Decrease

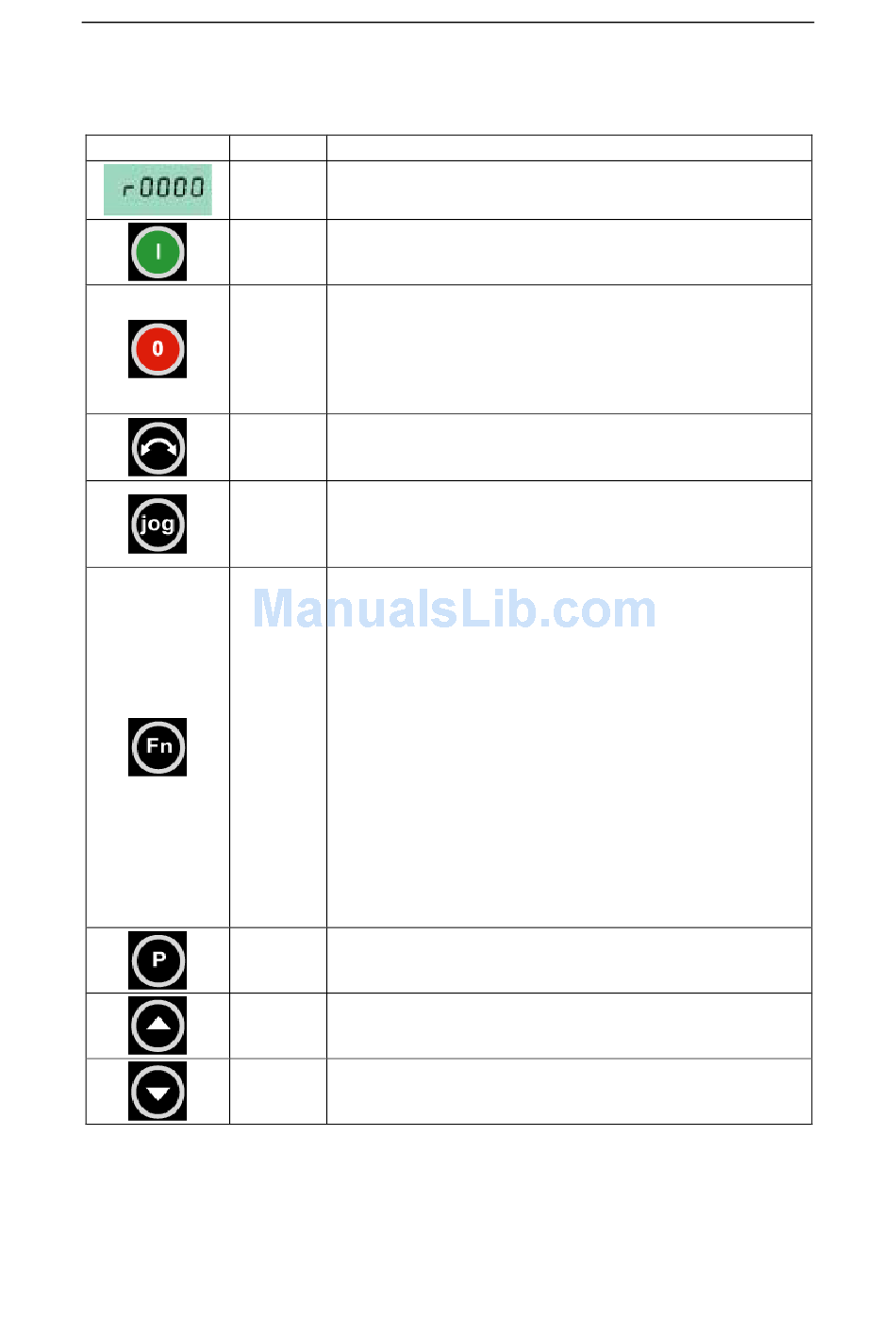

Figure 3-5 Buttons on the BOP
MICROMASTER 440 Operating Instructions
6SE6400-5AC00-0BP0
The LCD displays the settings currently used by the converter.
Status
Pressing the button starts the converter. This button is
disabled by default. To enable this button set P0700 = 1.
OFF1 Pressing the button causes the motor to come to a
standstill at the selected ramp down rate. Disabled by default;
to enable set P0700 = 1.
OFF2 Pressing the button twice (or once long) causes the
motor to coast to a standstill.
This function is always enabled.
Press this button to change the direction of rotation of the
motor. Reverse is indicated by a minus (-) sign or a flashing
decimal point. Disabled by default, to enable set P0700 = 1.
Pressing this button while the inverter has no output causes
the motor to start and run at the preset jog frequency. The
motor stops when the button is released. Pressing this button
when the motor is running has no effect.
This button can be used to view additional information.
Pressing and holding the button for 2 seconds from any
parameter during operation, shows the following:
1. DC link voltage (indicated by d – units V).
2. Output current. (A)
3. Output frequency (Hz)
4. Output voltage (indicated by o – units V).
5. The value selected in P0005 (If P0005 is set to show any
of the above (3, 4, or 5) then this will not be shown again).
Additional presses will toggle around the above displays.
Jump Function
From any parameter (rXXXX or PXXXX) a short press of the
Fn button will immediately jump to r0000, you can then
change another parameter, if required. Upon returning to
r0000, pressing the Fn button will return you to your starting
point.
Pressing this button allows access to the parameters.
Pressing this button increases the displayed value.
value
Pressing this button decreases the displayed value.
value
3 Commissioning
Effects
41
