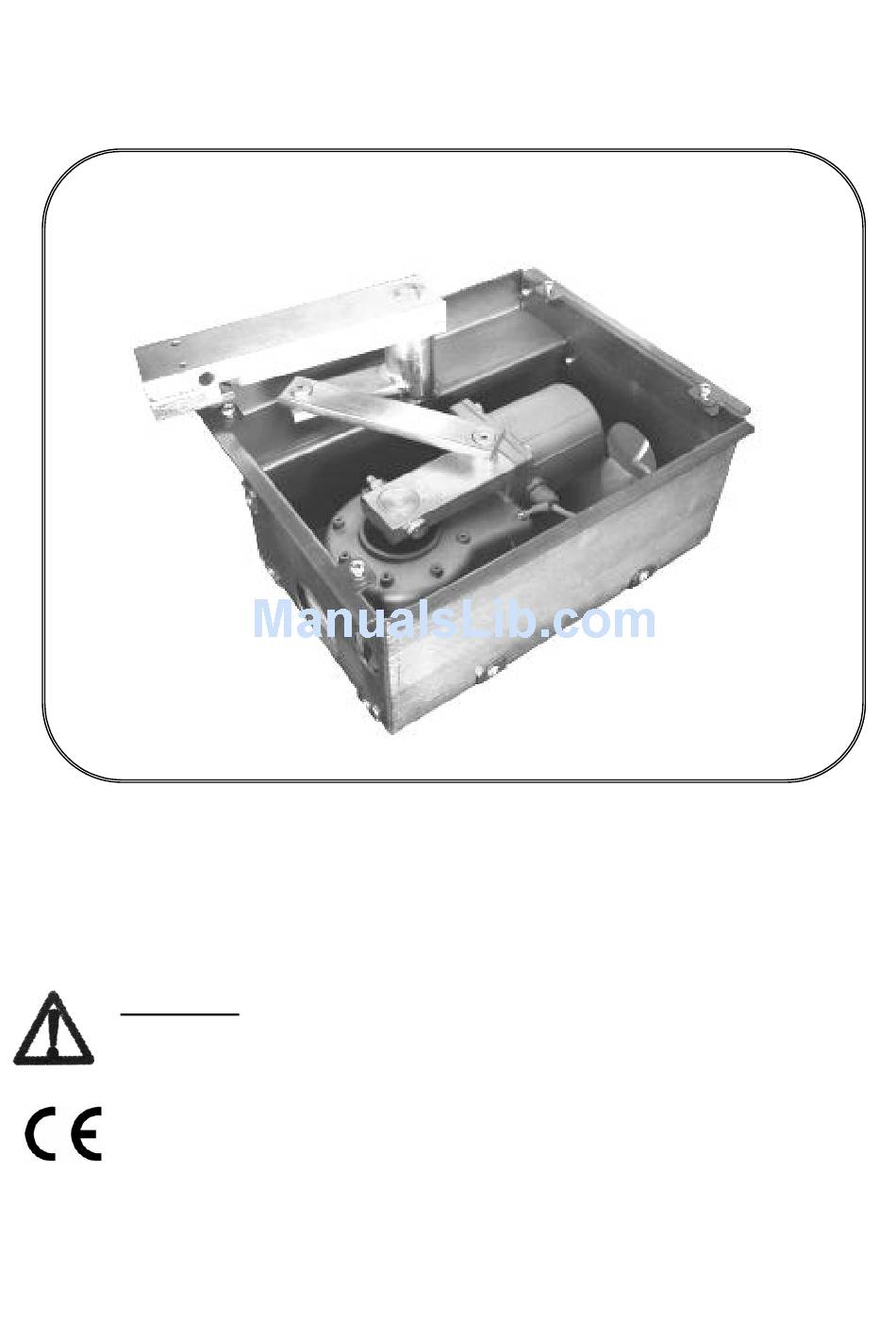

- Page 1 ECHNICAL NSTALLATION ANUAL UNDER 250 UNDERGROUND OPERATOR FOR SWINGING GATES AND DOORS WARNING!! Before installing, thoroughly read this manual that is an integral part of the pack The CE mark conforms to European directive EEC 89/336 + 92/31 + 93/68...
-
Page 2: Table Of Contents
INDEX PACKING CONTENTS ............3 VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS ................4 TECHNICAL DATA..............5 DIMENSIONS................6 TYPICAL CONNECTION AND CABLE SECTION....6 INSTALLATION ...............7 GATE WING OPENING ANGLE ......................7 BOX INSTALLATION PROCEDURE ....................8 ASSEMBLING THE OPERATOR AND LEVERS................. 9 FASTENING THE OPERATOR LEVER TO THE GATE.............. -
Page 3: Packing Contents
PACKING CONTENTS This Kit contains the following items: Underground operator Foundation box Lever kit for 90° opening Release lever Optional accessories Remote control Tuned antenna 433.920 Pair of outdoor photocells Flashing light 230V Outdoor key-switch Sign... -
Page 4: View Of Typical Automation And Names Of Components
VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS Optimal installation 1. Operators 4. Flashing warning light 2. Electronic control unit 5. Key-switch 3. External photocell 6. Antenna Internal photocell (optional) 7. Remote control... -
Page 5: Technical Data
TECHNICAL DATA UNDER 250 (230VAC) Max. weight per wing 500 Kg Max. width per wing 2,5 m Motors power supply 230 V ± 10%, 50 Hz Condenser 10 µF Motor current input 1.2 – 1.6 A Motor power 200W Overload cutout 135°C... -
Page 6: Dimensions
DIMENSIONS TYPICAL CONNECTION AND CABLE SECTION 4 x 1.5 mm2 4 x 1.5 mm2 2 x 0.75 mm2 TX Photocell Photocell 4 x 0.75 mm2 2 x 0.75 mm2 3 x 1.5 mm2 230V line... -
Page 7: Installation
CONSIDERATIONS FOR INSTALLATION • The installation and testing operations must be performed solely by qualified personnel in order to guarantee the proper and safe operation of the automatic gate. • The company declines any responsibility for damage caused by incorrect installations due to incompetence and/or negligence. -
Page 8: Box Installation Procedure
BOX INSTALLATION PROCEDURE 6.2.1 Dig a hole big enough to hold the box containing the operator (see F1) 6.2.2 Insert the tubes for water drainage in the prepared holes (F1C) 6.2.3 Insert the sheath for laying the power cables and limit switch (F1D). Note: while positioning the box, keep in mind the minimum distance there must be between the pillar and the centre of rotation of the gate... -
Page 9: Assembling The Operator And Levers
ASSEMBLING THE OPERATOR AND LEVERS 6.3.1 Place the operator in the box and fasten it with the nuts provided. 6.3.2 Insert the ball in the pin located on the box and fit the gate anchorage lever (L1) 6.3.3 Insert the lever (L3) onto the motor shaft 6.3.4 Fit the connecting lever (L2) -
Page 10: Fastening The Operator Lever To The Gate
FASTENING THE OPERATOR LEVER TO THE GATE 6.4.1 Insert the cover and fasten it with the screws provided View 6.4.2 Position the gate wing and the lever (L1) so that they are perfectly aligned and fasten them by welding or similar. EMERGENCY RELEASE PROCEDURE •... -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY 230 volt mains voltage absent Check master switch On giving a command with the remote control or with the key-switch, the gate Check for any STP selectors or opens or the motor does not start commands. -
Page 12: Safety Precautions
SAFETY PRECAUTIONS These warnings are an essential, integral part of the product and must be given to the user. They provide important indications on the installation, use and maintenance and must be read carefully. This form must be preserved and passed on to subsequent users of the system. The incorrect installation or improper use of the product may be dangerous. - Page 13 1095 Budapest, Mester u. 34. 1141 Budapest, Fogarasi út 77. Tel.: *218-5542, 215-9771, 215-7550, Tel.: *220-7940, 220-7814, 220-7959, 216-7017, 216-7018 Fax: 218-5542 220-8881, 364-3428 Fax: 220-7940 Mobil: 30 940-1970, 20 949-2688 Mobil: 30 531-5454, 30 939-9989 E-mail: delton@delton.hu Web: www.delton.hu www.kaputnyitunk.hu...
