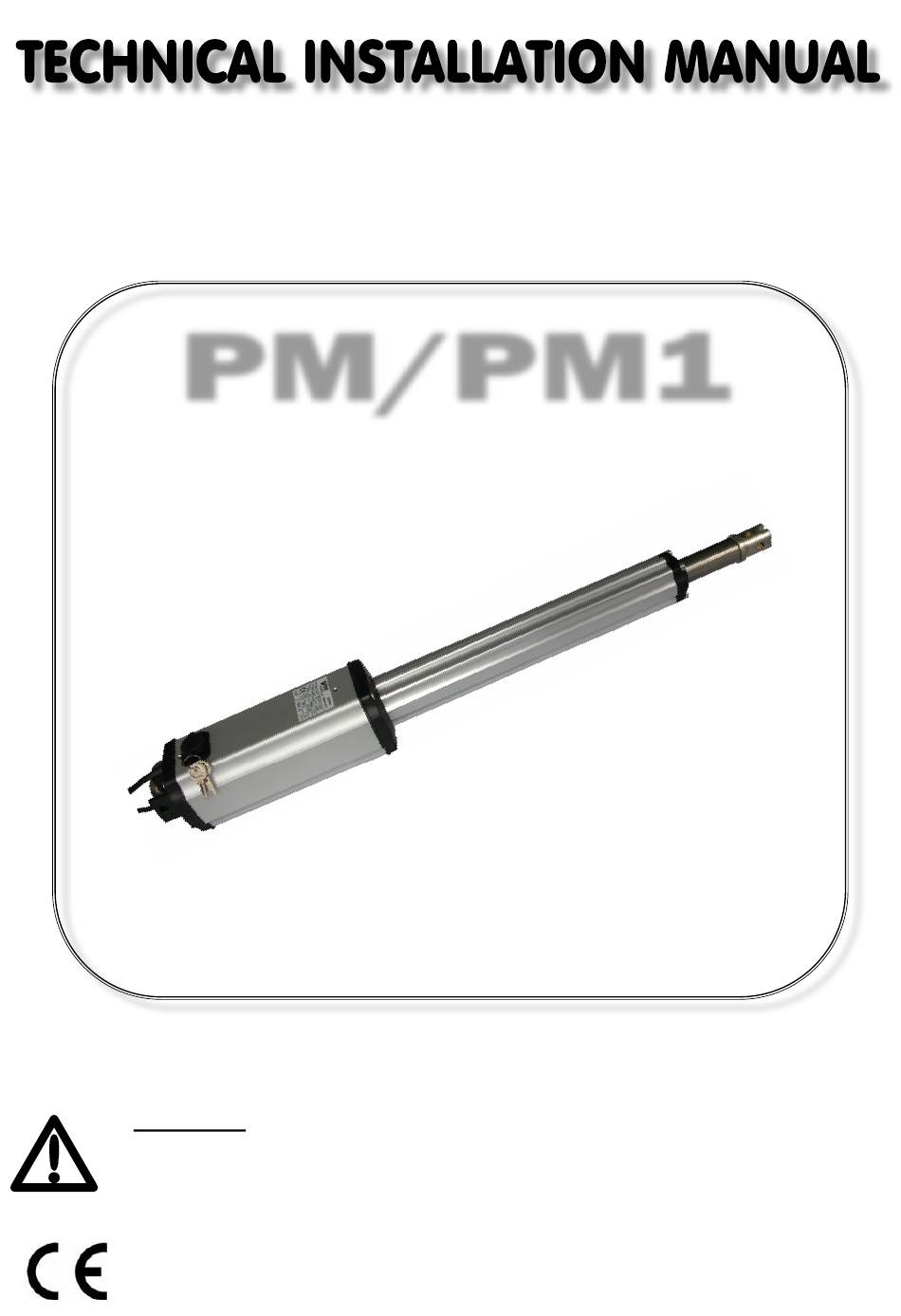

OPERATOR FOR SWING GATES AND DOORS PM/PM1 WARNING!! Before installing, thoroughly read this manual that is an integral part of the pack Our products if installed by qualified personnel capable to evaluate risks, comply with norms UNI EN 12453, EN 12445 The CE mark conforms to European directive EEC 89/336 + 92/31 + 93/68 D.L.
CONSIDERATIONS FOR INSTALLATION The installation and testing operations must be performed solely by qualified personnel in · order to guarantee the proper and safe operation of the automatic gate. The company declines any responsibility for damage caused by incorrect installations due ·...
Page 6
INSTALLATION OF FASTENING PLATES Fasten the plate provided to the post (fig. 1) (FIG. 1) Anchor the rear part of the piston to the plate and fasten it firmly (fig. 2). (FIG. 2) (FIG. 3) Warning! When establishing the height off the ground at which to fasten the plate to the post (fig.
TROUBLESHOOTING SOLUTION PROBLEM PROBABLE CAUSE 230 volt mains voltage Check master switch absent Check for any STOP selectors or commands. Emergency STOP present If not used, check jumper On giving a command with on STOP contact input on the remote the control board control or with the key-switch, the gate...
Products are installed. The data and images are for guidance only VDS reserves the right to change at any time characteristics of the products described in its sole discretion, without notice. Via Circolare p.i.p. N° 10 65010 Santa Teresa di Spoltore (PE) - ITALY Tel.
