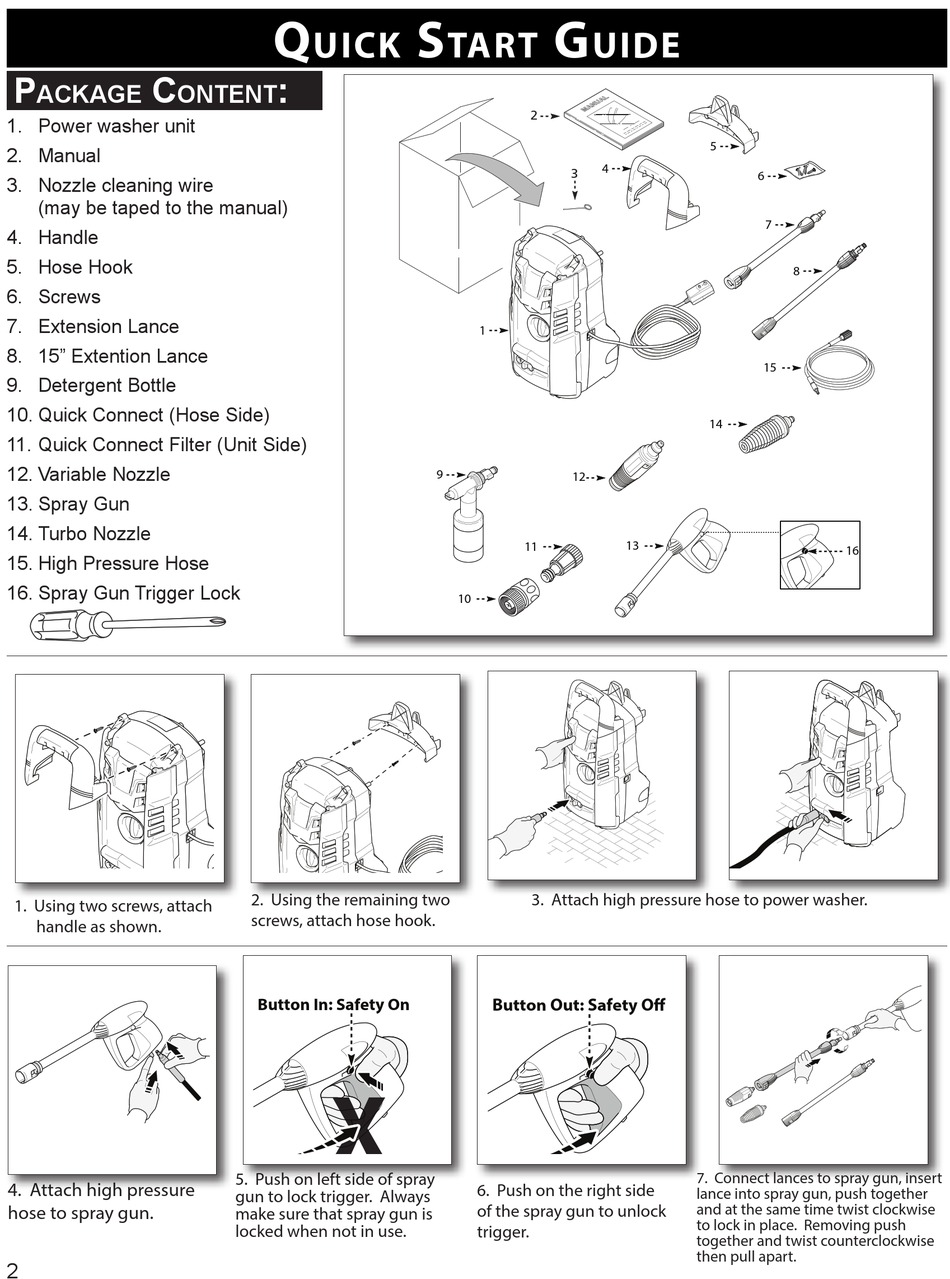

P c
ackage ontent
1. Power washer unit
2. Manual
3. Nozzle cleaning wire
(may be taped to the manual)
4. Handle
5. Hose Hook
6. Screws
7. Extension Lance
8. 15" Extention Lance
9. Detergent Bottle
10. Quick Connect (Hose Side)
11. Quick Connect Filter (Unit Side)
12. Variable Nozzle
13. Spray Gun
14. Turbo Nozzle
15. High Pressure Hose
16. Spray Gun Trigger Lock
1. Using two screws, attach
handle as shown.
4. Attach high pressure
hose to spray gun.
2
Q S
uick
:
2. Using the remaining two
screws, attach hose hook.
X
Trigger Inactive
5. Push on left side of spray
gun to lock trigger. Always
make sure that spray gun is
locked when not in use.
G
tart uide
4
3
1
9
12
11
10
3. Attach high pressure hose to power washer.
Trigger Active
6. Push on the right side
of the spray gun to unlock
trigger.
5
6
7
8
15
14
13
7. Connect lances to spray gun, insert
lance into spray gun, push together
and at the same time twist clockwise
to lock in place. Removing push
together and twist counterclockwise
then pull apart.
16
