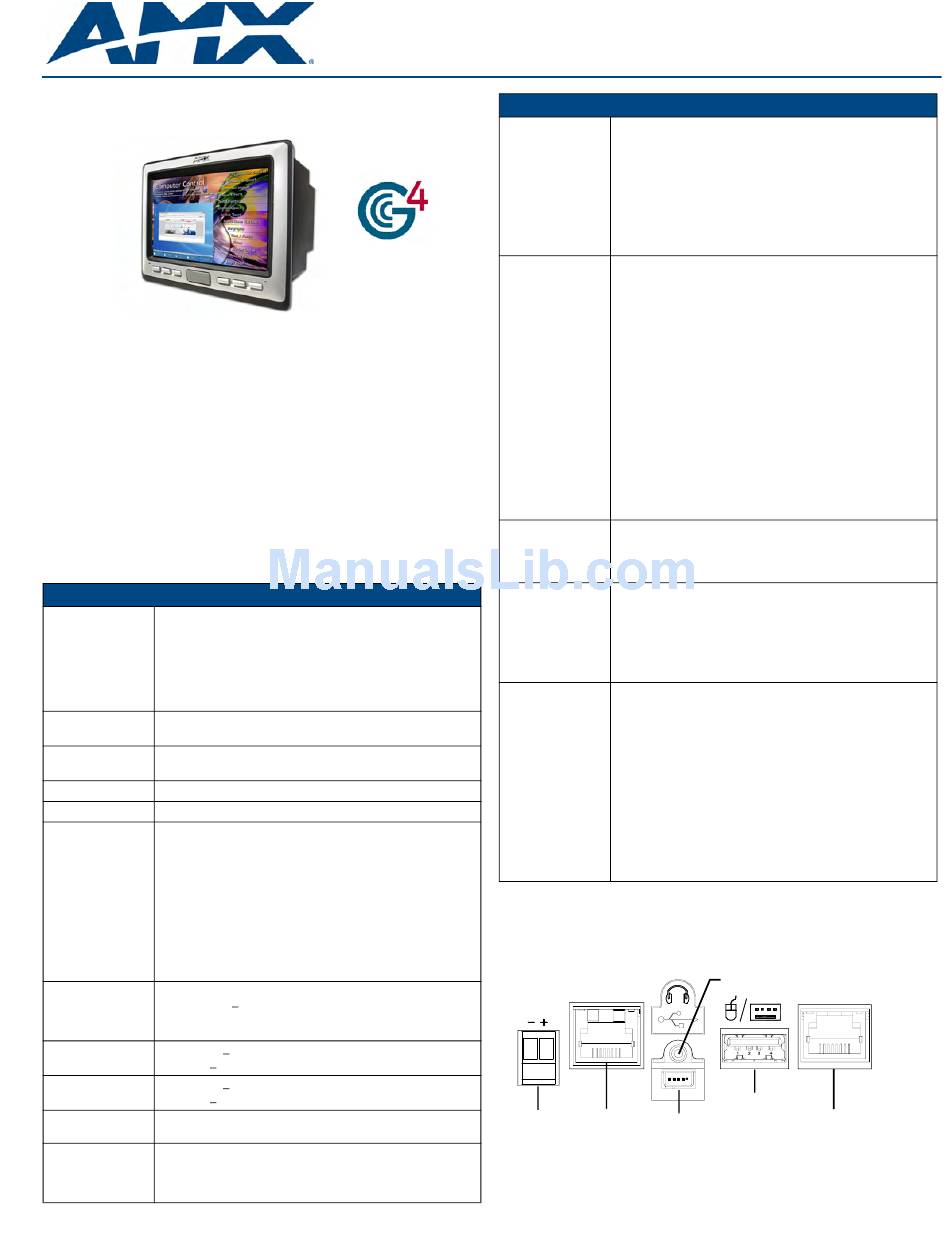

AMX Modero NXD-CV5 Installation Manual

For more detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the NXD-CV5 Instruction Manual, available online at
www.amx.com.
NXD panel
(WallMount)

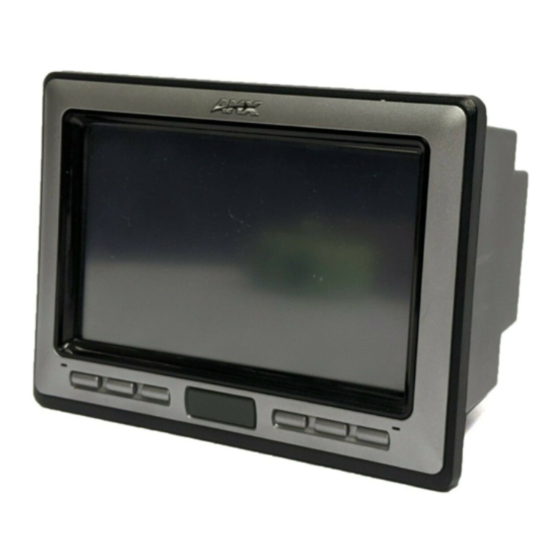

FIG. 1
5" Modero Widescreen WallMount Video Touch Panel
ATTENTION!
Verify you are using the latest NetLinx Master Firmware (available from
www.amx.com) on your ME260/64 and NI-Series Controllers. Verify the TPDesign4
program being used is Version 2.6 or higher.

Overview

The NXD-CV5 (FG2261) widescreen Color Video (CV) panel displays NTSC/MPAL/
PAL/SECAM video formats within variable sized windows of up to 800 x 480.
It includes a built-in microphone, speakers, audio/headphone connector, and six
NetLinx programmable pushbuttons.
The NXD-CV5 supports Intercom functionality which allows two communicating CV5
panels (controlled by the NetLinx Master must control all intercom and paging) to
transmit half-duplex audio signals over a network and be used as an Intercom system.
Audio and Video is delivered to the panel via a CAT5 connection from an optional
NXA-AVB/ETHERNET Breakout Box.

Specifications

NXD-CV5 (FG2261) Specifications
Dimensions (HWD):
NXA-RK5 • 3 RKU (rack units) high (13.26 cm)
5.22" x 19.0" x 0.50" (13.26 cm x 48.26 cm x 1.27 cm) (optional)
(FG2904-55)
• Faceplate included: 4.15" x 5.59" x 3.23"
NXD-CV5
(10.50 cm x 14.20 cm x 8.20 cm)
(FG2261)
• Conduit/wallbox: 4.27" x 5.14" x 3.40"
CB-TP5
(10.86 cm x 13.06 cm x 8.64 cm) (optional)
(FG038-10)
Power Require- • Constant current draw: 650 mA @ 12 VDC
ments:
• Startup current draw: 1.3 A @ 12 VDC
Memory: • 64 MB SDRAM
• 64 MB flash chip (not-upgradeable - factory programmed)
Weight: • 1.76 lbs (0.80 kg)
Certifications: • FCC Part 15 Class B, CE, and IEC 60950
Panel LCD • Aspect ratio: 16 x 9
Parameters:
• Brightness (luminance): 170 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 250:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.14 mm
• Panel type: TFT Color Active-Matrix
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame
frequency
• Video format: NTSC, MPAL, PAL, and SECAM
• Viewing dimensions: 4.3" x 2.58" (109.2 mm x 65.2 mm)
Viewing Angles: • 90° total horizontal viewing angle
- Horizontal: + 45° (left and right from center)
• 45° total vertical viewing angle
- Vertical: + 15° (up from center) and -30° (down from center)
IR Reception Angle: • Horizontal: + 25° (left and right from center)
• Vertical: + 15° (up and down from center)
Motion Sensor (PIR) • Horizontal: + 25° (left and right from center)
Activation:
• Vertical: + 15° (up and down from center)
Supported Audio • 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,
Sample Rates: 12000Hz, 11025Hz, and 8000Hz.
Front Panel: • Light Sensor: Photosensitive light detector for automatic
adjustment of the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake the
panel when panel is approached.
NXD-CV5
5" Modero Wall/Flush Mount Touch Panel
NXD-CV5 Specifications (Cont.)
Front Panel (Cont.)
Side Panel
Connectors:
Operating /Storage
Environments:
Included
Accessories:
Other AMX
Equipment:

Panel Connectors and Wiring

FIG. 2 shows the connectors located on the CV5 Modero Video panels. The Audio/
Video RJ-45 connector provides differential audio/video signals between the touch
panel and the NXA-AVB/ETHERNET. This connector routes Composite video, Stereo
(left/right) audio, and microphone audio.
ETHERNET
PWR
12VDC
A
Ethernet
Power
FIG. 2
Connector layout on the CV5 Touch Panels
Installation Guide
• IR Receiver: 38 KHz and 455 KHz AMX IR frequencies
• Sleep Button: Pushbutton (grey) provides both access to the
Setup and Calibration page and toggles the panel between a
"sleep" or "wake" state
• Microphone: Used for intercom applications (requires the
NXA-AVB/ETHERNET Breakout Box for analog
communication)
• Speakers: Stereo output with a frequency response of 500 Hz -
7 KHz
• Buttons: 6 programmable pushbuttons
• Power: 2-pin 3.5 mm mini-Phoenix connector
• Ethernet 10/100 Port: Single RJ-45 port for 10/100 Mbps
communication. LEDs show communication activity,
connections, speeds, and mode information:
L/A-link/activity - Green LED lights On when the Ethernet cables
are connected and terminated correctly and then blinks when
receiving Ethernet data packets.
SPD-speed - Yellow LED lights On when the connection speed
is
100 Mbps and turns Off when the speed is 10 Mbps.
• Stereo Output Connector: Stereo output through a 3.5mm mini-
jack (for use with external speakers or headphones)
• Mini-USB Connector: 5-pin Mini-USB connector used for
programming, firmware update, and touch panel file transfer
between the PC and the target panel
• USB Connector: Type A USB port connects an external keyboard
or mouse device for use with Virtual PC applications
• Audio/Video Connector: RJ-45 connection for A/V signals (via
CAT5) between the NXA-AVB/ETHERNET Breakout Box and
the panel
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• Installation Kit for NXD-CV5 panels (KA2261-01):
- 2-pin 3.5 mm mini-Phoenix connector
- Three Drywall clips (62-5924-05) and #6 - sheet metal screws
- Three Phillips-head screws (#4-40 x 0.250 Black)
• Mounting Template - Flush Mount Drywall Installation
• Trim Ring with button openings (60-2261-04) (factory installed)
• Trim Ring without button openings (60-2261-05)
• CB-TP5 Conduit/Wallbox (FG038-10)
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
- Provides video/audio distribution to the A/V panel over CAT5
cable (up to 200'/60.96 m) and accepts either Composite or S-
Video
• NXA-RK5 Rack Mount Kit for 5" Wall Mount panels (FG2904-55):
- 5" Rackmount
- Four Screws, #10-32 x.625, PH Truss, BLK
- Four Washers, #10, Black Nylon
- Three Screws, #4-40 x.250, PPH, BLK
• NXA-CV5AM, Modero 5" Angle Mount Kit (FG2904-56):
- Wedge for 5" WallMount
- Wedge Mounting Template - Flush Mount Drywall Installation
- Three 1/8" diameter by 3" length Toggle Bolts
- Three 4-20 x.375 LG screws, PPH, Plastite, Black Zinc
Stereo
Output
L
Keyboard/Mouse
USB connector
Mini-USB
(CAT5)
(Program Port)
AUDIO / VIDEO
Audio-Video from
NXA-AVB/ETHERNET (CAT5)
