AMX Modero NXD-CV12 Dimension Manual

NXD-CV12
WALL
NXD-CA12
NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except UNDER .250 ú = +/- .005
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
4253 RELEASE TO PRODUCTION
A
B 4333 REVISED MOUNTING HOLES
REL APPR REL DATE REV APPR
DRAWN J.L. 9/30/02
ENGR SERV JM 10/11/02 DB
PICTORIAL
ENGINEER JSV 10/11/02 RDR

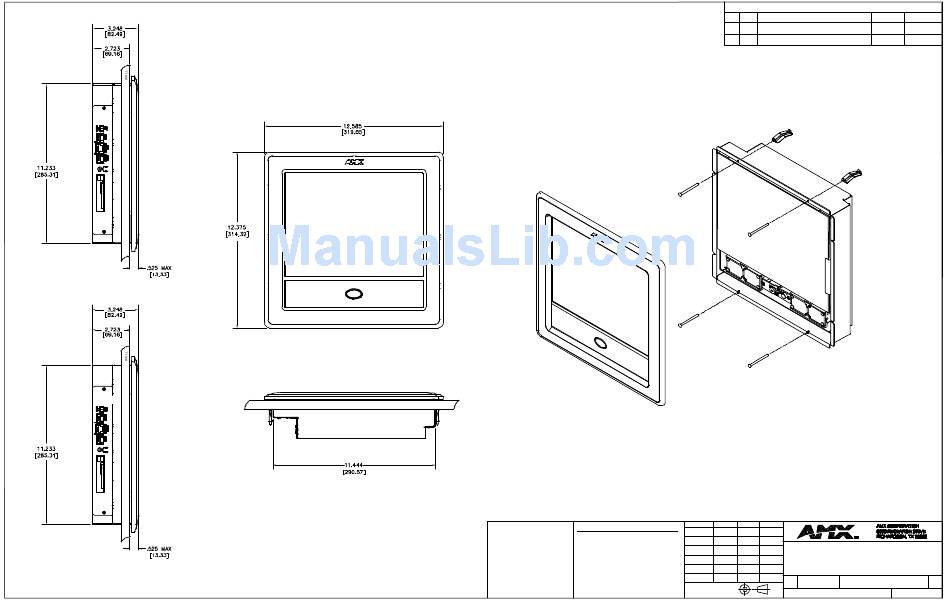

NXD-CV12, AND NXD-CA12, MODERO
PROD ENGR MAS 10/11/02
MAS 12.1" COLOR ACTIVE
MATL SUP MP 10/11/02
JS
AVT 10/11/02 SIZE SCALE: DWG. NO.
QUALITY AK
FULL 95-2251-12
D
THIRD ANGLE
PROJECTION 95-2251-12_NXD-CV12_PICTORIAL
DATE APPROVED
10/15/02
10/28/02
REV.
B
SHEET
1 OF 1
