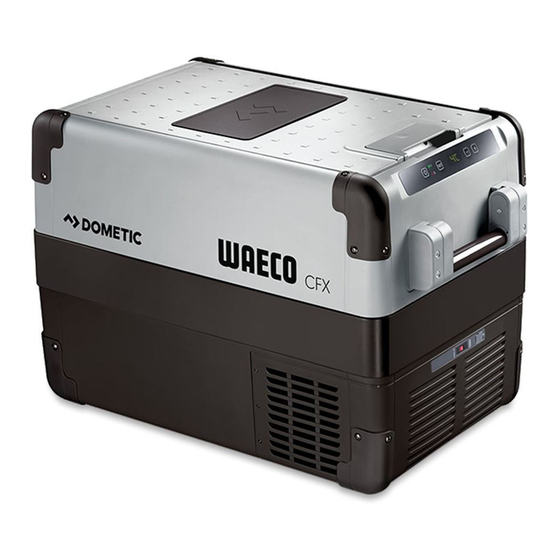

Waeco CoolFreeze CFX28 Instruction Manual

Compressor cooler
Hide thumbs Also See for CoolFreeze CFX28:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual

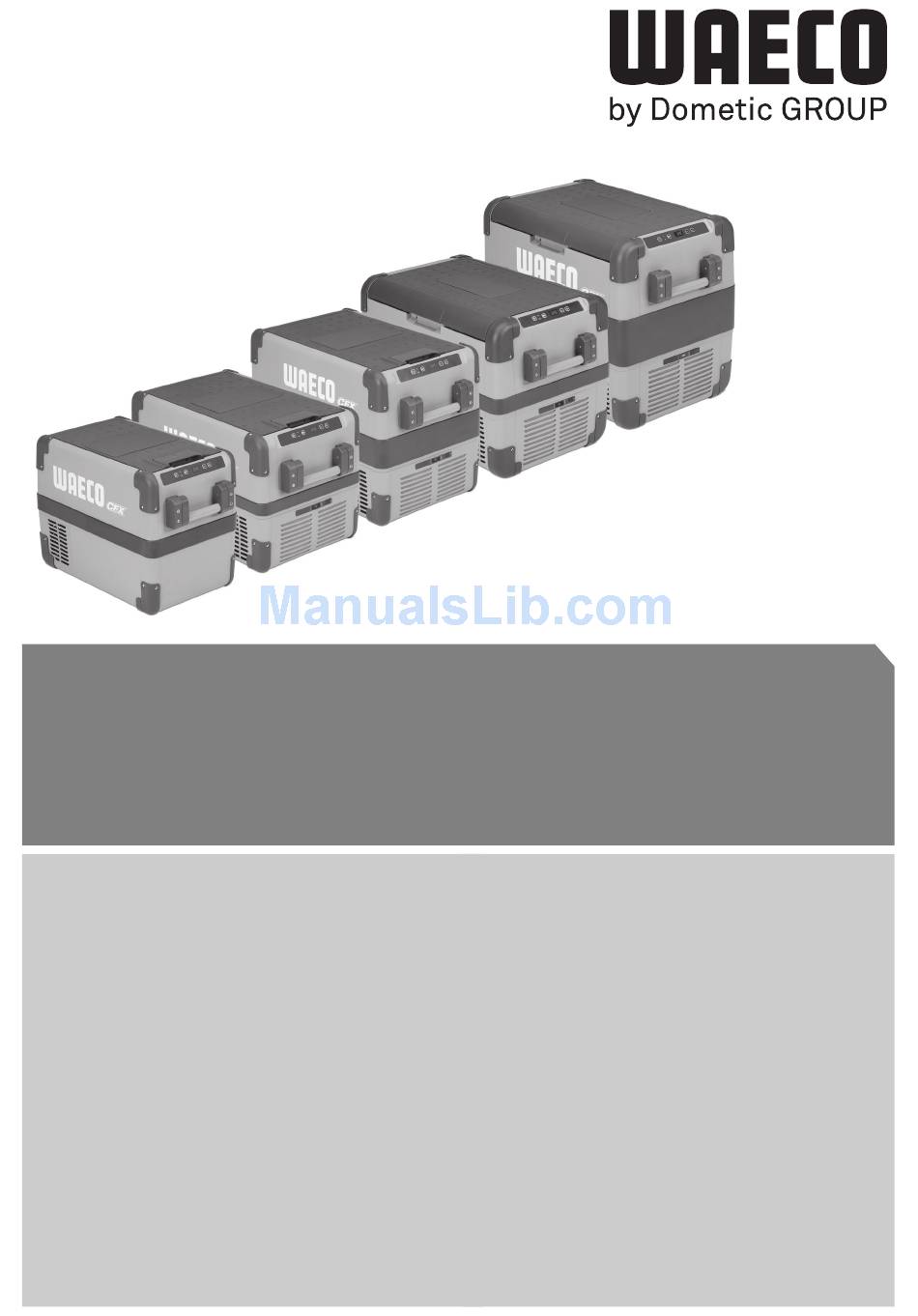

CFX 28
CoolFreeze CFX28, CFX35,
CFX40, CFX50, CFX65, CFX65DZ
Compressor Cooler
Instruction Manual
CFX 40
CFX 35
CFX 65, CFX 65 DZ
CFX 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolFreeze CFX28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waeco CoolFreeze CFX28

Summary of Contents for Waeco CoolFreeze CFX28

  • Page 1 CFX 65, CFX 65 DZ CFX 50 CFX 40 CFX 35 CFX 28 CoolFreeze CFX28, CFX35, CFX40, CFX50, CFX65, CFX65DZ Compressor Cooler Instruction Manual...

  • Page 3: Table Of Contents

    CFX28 – CFX65DZ Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

  • Page 4: Explanation Of Symbols

    Explanation of symbols CFX28 – CFX65DZ Disposal ..........26 Technical data .

  • Page 5: Safety Instructions

    CFX28 – CFX65DZ Safety instructions Safety instructions General safety DANGER!  On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker. WARNING!  Do not operate the device if it is visibly damaged. ...
  • Page 6 Safety instructions CFX28 – CFX65DZ NOTICE!  Check that the voltage specification on the type plate corresponds to that of the energy supply.  Only connect the device as follows: – With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter) –...

  • Page 7: Scope Of Delivery

    CFX28 – CFX65DZ Scope of delivery  Do not fill the inner container with ice or fluid.  Never immerse the device in water.  Protect the device and the cable against heat and moisture. Scope of delivery Item Quantity Description Cooler Connection cable for 12/24 Vg connection...

  • Page 8: Accessories

    Accessories CFX28 – CFX65DZ Accessories Available as accessory (not included in scope of delivery): Designation Item no. Model Universal fixing kit (belt system) CFX-UFK 9105304041 suits all models Quick release fixing kit CFX-QFK 9105306218 CFX28 only Wireless display CFX-WD 9105304042 suits all models Intended use The cooler is suitable for cooling and freezing foods.

  • Page 9: Function Description

    CFX28 – CFX65DZ Function description Function description The cooler can chill products, keep them cool as well as freeze them. A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and powerful compressor ensure efficient and fast cooling.
  • Page 10 Function description CFX28 – CFX65DZ Operating panel – ° Item Description Explanation Switches the cooler on or off when the button is pressed for between one and two seconds “P Status indication POWER ” LED lights up green: Compressor is on LED lights up orange: Compressor is off LED flashes orange:...
  • Page 11 CFX28 – CFX65DZ Function description Connection sockets 100-240V~AC 12/24V DC Item Description Connection socket AC voltage supply Fuse holder Connection socket DC voltage supply Emergency switch (when fitted) and USB port NORMAL EMERGENCY OVERRIDE Item Description Emergency switch USB port for power supply...

  • Page 12: Operation

    Operation CFX28 – CFX65DZ Operation Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 24).

  • Page 13: Energy Saving Tips

    CFX28 – CFX65DZ Operation Selecting the temperature units Temperature display units can be switched between Celsius and Fahrenheit as follows: ➤ Switch on the cooler. ➤ Press the “SET” button (fig. 3 4, page 10) twice. ➤ Use the “UP +” (fig. 3 7, page 10) or “DOWN –” (fig. 3 6, page 10) buttons to select Celsius or Fahrenheit.

  • Page 14: Connecting The Cooler

    Operation CFX28 – CFX65DZ Connecting the cooler Connecting to a battery (Vehicle or boat) The cooler can be operated with 12 V or 24 V NOTICE! Danger of damage! Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.

  • Page 15: Using The Battery Monitor

    CFX28 – CFX65DZ Operation Using the battery monitor The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24 V supply. If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level.
  • Page 16 Operation CFX28 – CFX65DZ The battery monitor mode can be selected as follows: ➤ Switch on the cooler. ➤ Press the “SET” button (fig. 3 4, page 10) three times. ➤ Use the “UP +” (fig. 3 7, page 10) or “DOWN –” (fig. 3 6, page 10) buttons to select the battery monitor mode.

  • Page 17: Using The Cooler

    CFX28 – CFX65DZ Operation Using the cooler NOTICE! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
  • Page 18 Operation CFX28 – CFX65DZ CFX65DZ CAUTION! Health hazard! If the temperature in the freezer compartment (1) is very low (–22 °C) , the temperature range in the cooling department (2) can be below freezing as well. NOTE Displayed temperature  With fridge/freezer divider in: The temperature displayed is that of the freezer compartment (1).

  • Page 19: Setting The Temperature

    CFX28 – CFX65DZ Operation NOTICE! Danger from excessively low temperature! Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature. ➤ Press the “ON/OFF” button (fig. 3 1, page 10) for between one and two seconds.

  • Page 20: Using The Emergency Switch (Where Fitted)

    Operation CFX28 – CFX65DZ Using the emergency switch (where fitted) The emergency switch (fig. 5 1, page 11) is located below the control panel on all models except CFX28 where it is located above the power inlet sockets. For normal operation the switch is in the “NORMAL USE” position. ➤...

  • Page 21: Defrosting The Cooler

    CFX28 – CFX65DZ Operation 7.10 Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this. NOTICE! Danger of damage! Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

  • Page 22: Replacing The Plug Fuse (12/24 V)

    Operation CFX28 – CFX65DZ 7.12 Replacing the plug fuse (12/24 V) ➤ Pull the adapter sleeve (4) off of the plug. ➤ Unscrew the screw (5) out of the upper half of the housing (6). ➤ Carefully lift the upper half of the housing off from the lower (1) half. ➤...

  • Page 23: Replacing The Light Pcb

    CFX28 – CFX65DZ Operation 7.13 Replacing the light PCB ➤ Disconnect the power supply to the device. ➤ Pry out the transparent cover with a screwdriver (1). ➤ Unscrew the PCB mounting screws (2). ➤ Pull out the plug from the PCB (3). ➤...

  • Page 24: Cleaning And Maintenance

    Cleaning and maintenance CFX28 – CFX65DZ Cleaning and maintenance WARNING! Always disconnect the device from the mains before you clean and service it. NOTICE! Risk of damage  Never clean the cooler under running water or in dish water.  Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

  • Page 25: Troubleshooting

    CFX28 – CFX65DZ Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not func- There is no voltage The ignition must be switched on in most tion, LED does present in the 12/24 V vehicles to apply current to the cigarette not glow.

  • Page 26: Technical Data

    Disposal CFX28 – CFX65DZ Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
  • Page 27 CFX28 – CFX65DZ Technical data CFX50 CFX65 CFX65DZ Item no. 9105303572 9105303573 9105303574 Connection voltage: 12/24 V and 100–240 V Rated current: 12 V : 7.8 A 12 V : 8.2 A 12 V : 5.5 A 24 Vg: 3.6 A 24 Vg: 3.8 A 24 Vg: 2.6 A 100 V...
  • Page 28 Commercial : info@dometic.fr SAV/Technique : service@dometic.fr SPAIN Dometic Spain S.L. GERMANY Avda. Sierra del Guadarrama, 16 Dometic WAECO International GmbH E-28691 Villanueva de la Cañada Hollefeldstraße 63 Madrid D-48282 Emsdetten  +34 902 111 042  +49 (0) 2572 879-195 ...

This manual is also suitable for:

Coolfreeze cfx35Coolfreeze cfx40Coolfreeze cfx50Coolfreeze cfx65Coolfreeze cfx65dz
