marsden IP 2101 User Manual

Hide thumbs Also See for IP 2101:
Table of Contents

Advertisement

Quick Links

Download this manual
IP 2101
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP 2101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for marsden IP 2101

Summary of Contents for marsden IP 2101

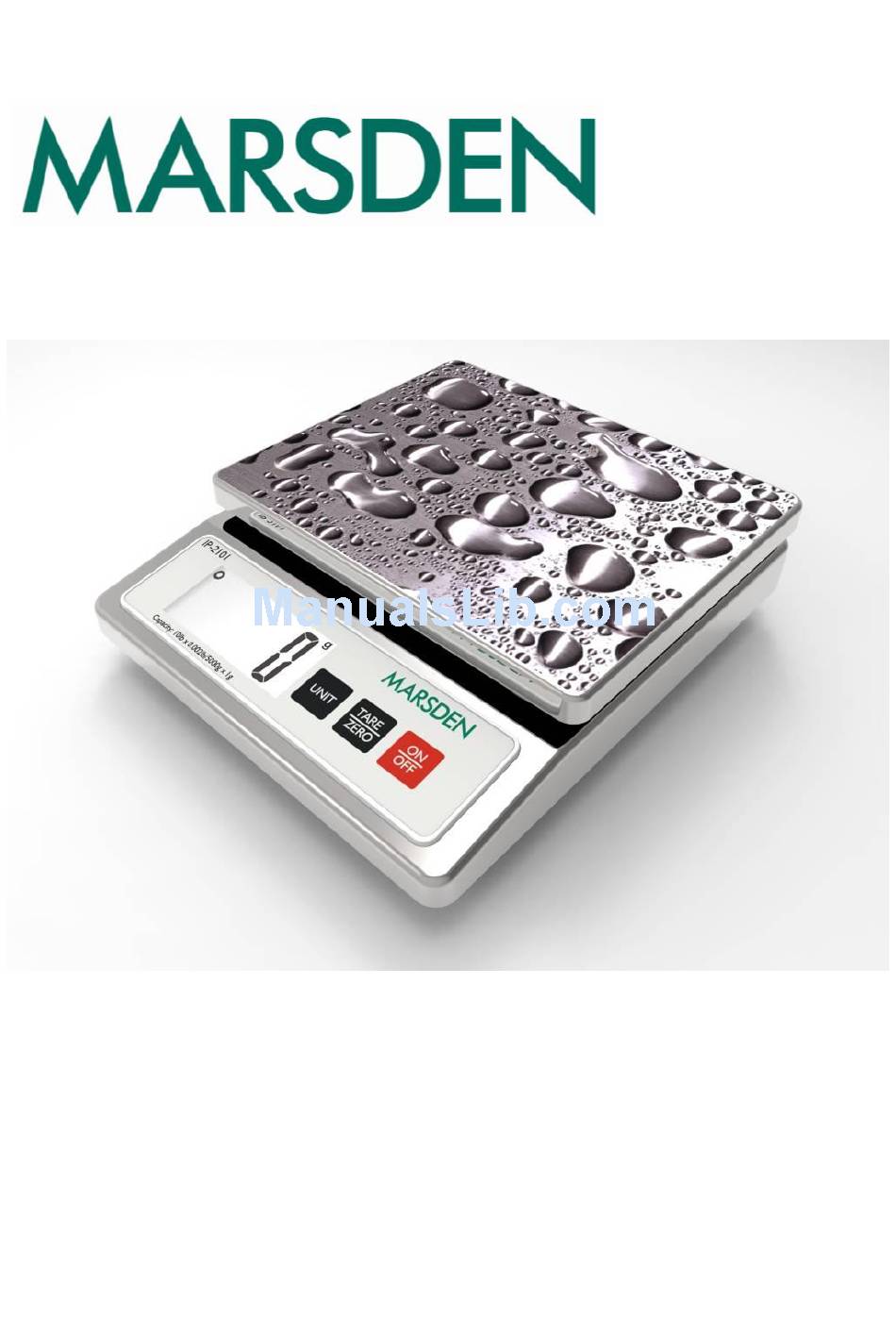

  • Page 1 IP 2101 USER MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS CLEANING ....................3 SPECIFICATION ..................4 PANEL ......................5 KEY FUNCTIONS ..................5 LCD SYMBOLS DESCRIPTION ............... 5 USING IP-2101 .................... 6 USING TARE FUNCTION ................6 USING UNIT KEY ..................7 SETTING AUTO-OFF TIME ..............7 INSTALLING THE BATTERY ..............

  • Page 4: Cleaning

    CLEANING  Do not use organic solvents to clean the balance. Clean the balance with a lint free cloth that is moistened with warm water and a mild detergent.  Do not disassemble the scale.  Do not use solvents to clean the scale. ...

  • Page 5: Specification

    SPECIFICATION Model IP 2101 10lb x 0.002lb Capacity 5000g x 1g Weight Unit g, lb Dimensions 170 x 150 x 46.5mm Platform Size 120 x 150mm Display 0.8 inch LCD display Keys UNIT, ON/OFF, TARE/ZERO Weight N.W: 2.6kg, G.W: 3.7kg ...

  • Page 6: Panel

    PANEL KEY FUNCTIONS ON/OFF Turn ON/OFF the scale. To Tare the unwanted weight during TARE/ZERO weighing process. UNIT To select the weighing unit. LCD SYMBOLS DESCRIPTION LCD displays measured weight, units Stable Sign and status information Weighing Units Minor weight Low Battery value...

  • Page 7: Using Ip-2101

    USING IP-2101 1. Switch ON the Scale using ON/OFF key. 2. The display will show count down from 88888 and will automatically the display will zero (weighing mode) 3. Place the item/animal in the middle of the scale. Wait until the scale stabilizes and stable sign (ο) shows on the screen Note : The scale will automatically zero when turned on.

  • Page 8: Using Unit Key

    USING UNIT KEY UNIT key is used to switch from one weighing unit to another. For example: glb. IP-2101 Unit key is very easy to use, simply presses UNIT key to switch the weighing unit. SETTING AUTO-OFF TIME IP-2101 has Auto-Off time option, which enables the scale to be turned off automatically if the scale is not in use.

  • Page 9: Installing The Battery

    INSTALLING THE BATTERY Remove battery housing cover. Install 9V alkaline battery. Install back the battery cover. Note: If the battery door is not closed properly, water can get into the battery compartment, causing the unit to malfunction.

  • Page 10: Error Message

    ERROR MESSAGE Error Message Reason Action Replace batteries or plug Low Battery the AC adaptor Total load exceeds the Reduce the weight and try maximum capacity of the again scale Counting Error (too low): Please contact the local The signal from the load cell service representative.
  • Page 12 FREEPHONE NUMBER: 0800 169 2775 HEAD OFFICE: UNIT 1 SALES, SERVICE, GENESIS BUSINESS PARK MARKETING SHEFFIELD ROAD AND ACCOUNTS ROTHERHAM S60 1DX TELEPHONE: 0845 130 7330 FAX: 0845 1307440 DESPATCH AND Unit 7 PRODUCTION CENTURION BUSINESS PARK COGGIN MILL WAY ROTHERHAM S60 1FB TELPHONE: 0845 130 7330...
