Index
IP Address
MAC Address
Leased Time
HOST ID
Refresh
3 . 8 . 2 T r a f f i c G r a
3 . 8 . 2 T r a f f i c G r a

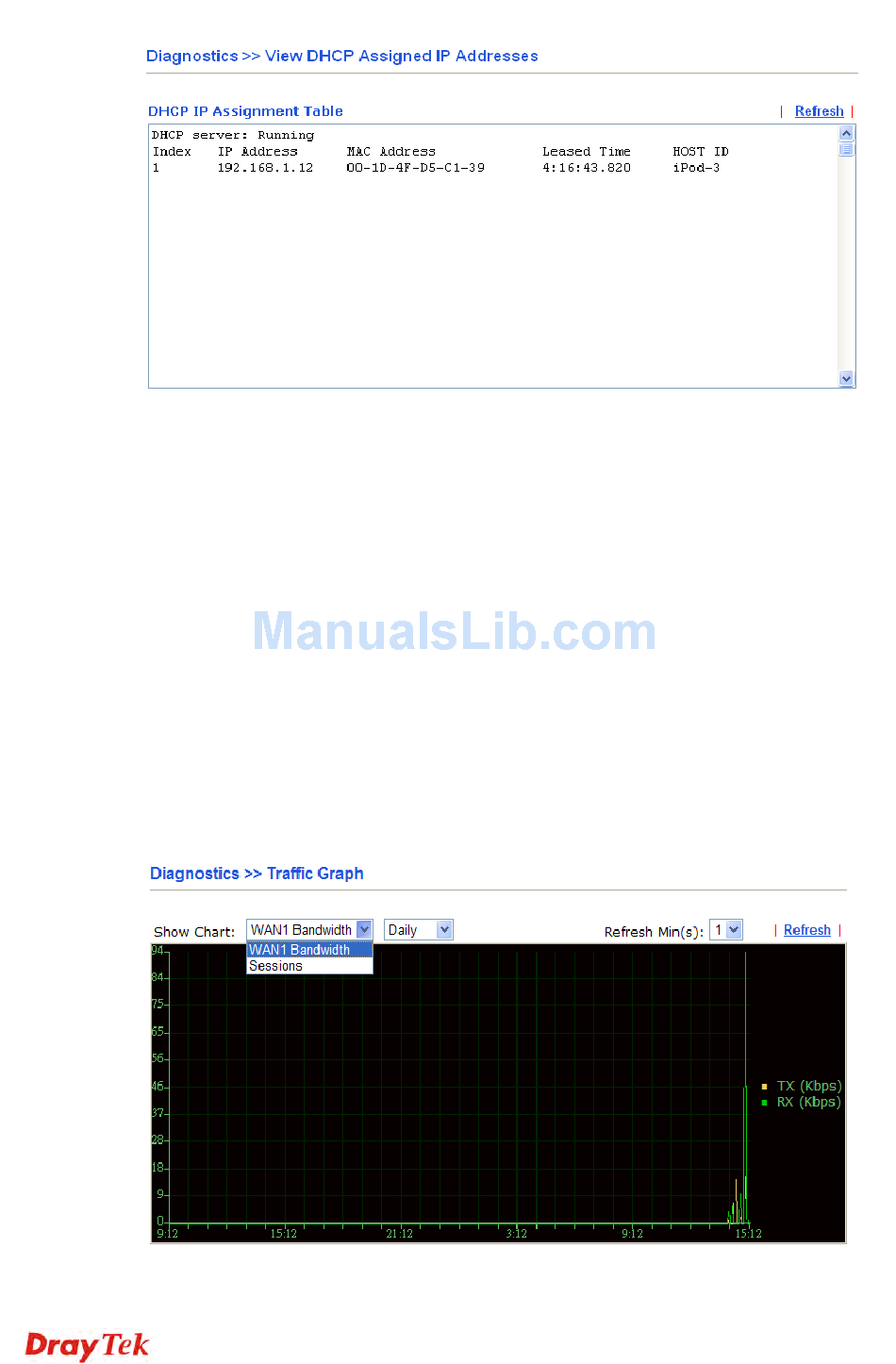

Click Diagnostics and click Traffic Graph to pen the web page. Choose WAN1 Bandwidth,
Sessions, daily or weekly for viewing different traffic graph. Click Refresh to renew the graph
at any time.
p h
p h
It displays the connection item number.
It displays the IP address assigned by this router for
specified PC.
It displays the MAC address for the specified PC that
DHCP assigned IP address for it.
It displays the leased time of the specified PC.
It displays the host ID name of the specified PC.
Click it to reload the page.
70 Vigor2110 Series User's Guide
