4 . 1 0 V P N a n d
4 . 1 0 V P N a n d
A Virtual Private Network (VPN) is the extension of a private network that encompasses links
across shared or public networks like the Internet. In short, by VPN technology, you can send
data between two computers across a shared or public network in a manner that emulates the
properties of a point-to-point private link.

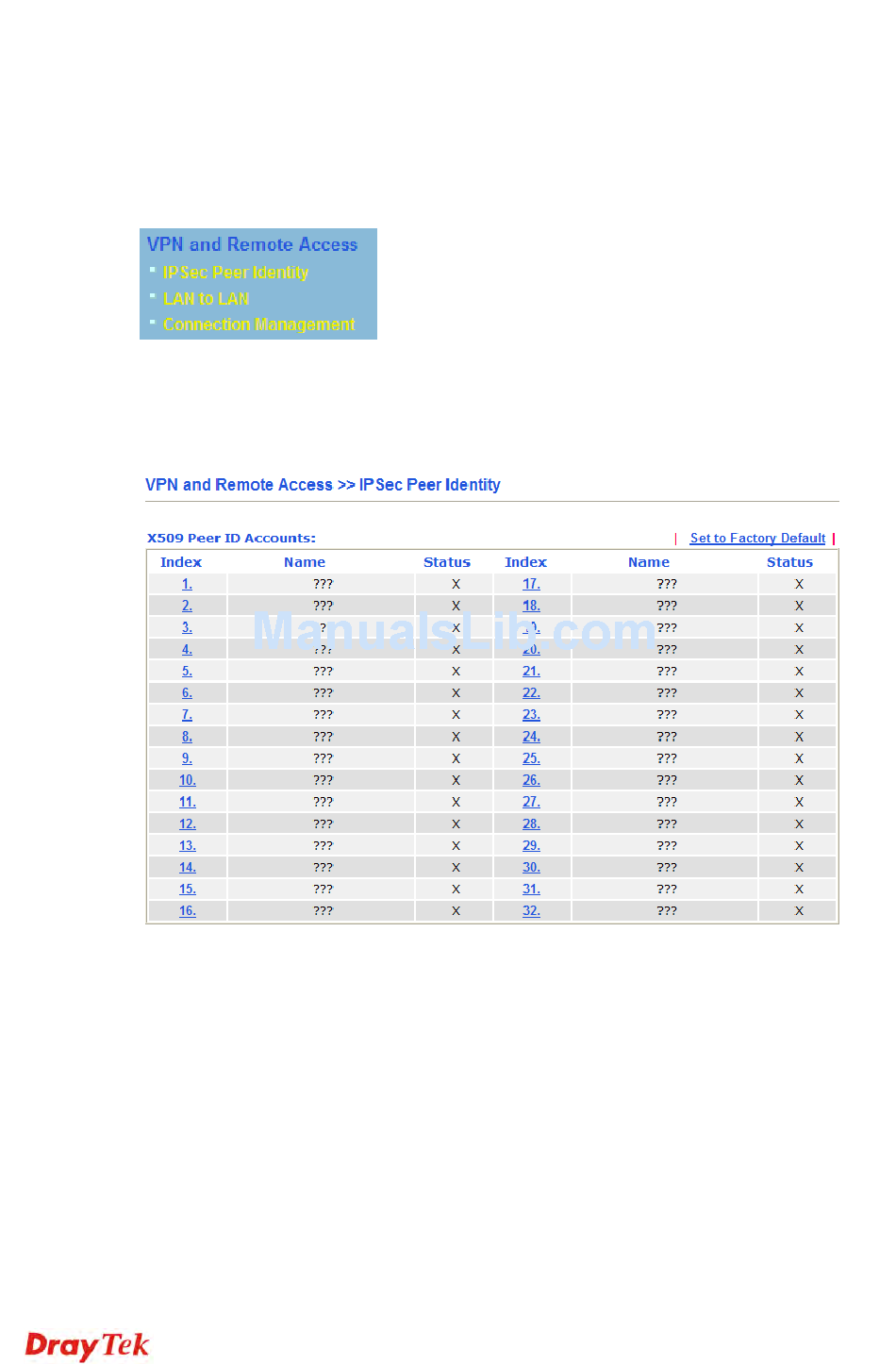

Below shows the menu items for VPN.
4 . 1 0 . 1 I P S e c
4 . 1 0 . 1 I P S e c
To use digital certificate for peer authentication in either LAN-to-LAN connection or Remote
User Dial-In connection, here you may edit a table of peer certificate for selection. As shown
below, the router provides 32 entries of digital certificates for peer dial-in users.
Set to Factory Default
Index
Name
Click each index to edit one peer digital certificate. There are three security levels of digital
signature authentication: Fill each necessary field to authenticate the remote peer. The
following explanation will guide you to fill all the necessary fields.
R e m o t e A c c
R e m o t e A c c
P e e r I d e n t i t y
P e e r I d e n t i t y
e s s
e s s
Click it to clear all indexes.
Click the number below Index to access into the setting page of

IPSec Peer Identity.

Display the profile name of that index.
138 Vigor2110 Series User's Guide
