Applications; Dynamic Dns - Draytek Vigor 2110 Series User Manual

Status

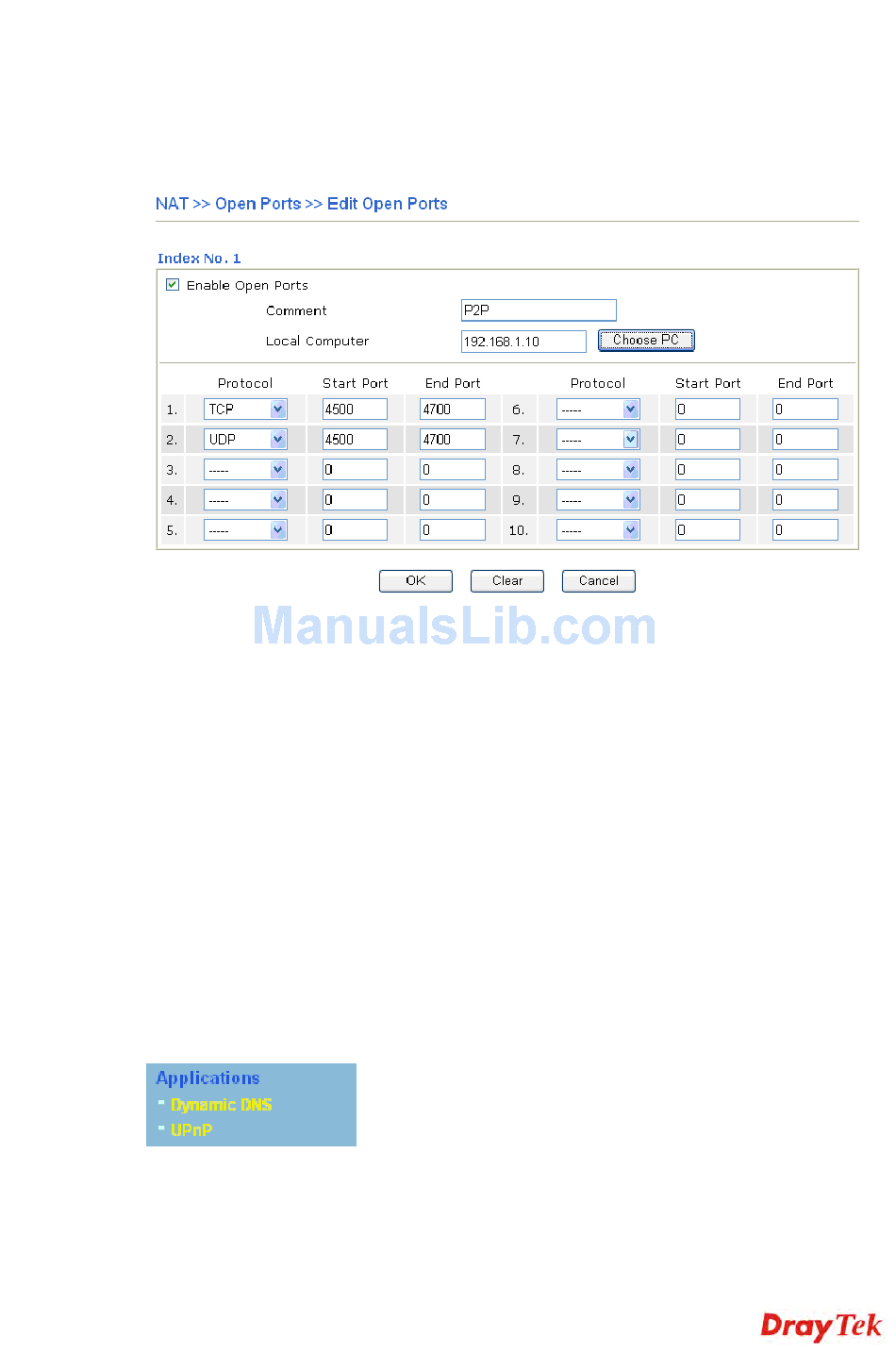

To add or edit port settings, click one index number on the page. The index entry setup page
will pop up. In each index entry, you can specify 10 port ranges for diverse services.
Enable Open Ports
Comment
Local Computer
Choose PC
Protocol
Start Port
End Port
3 . 4 A p p l i c a t i
3 . 4 A p p l i c a t i
Below shows the menu items for Applications.
3 . 4 . 1 D y n a m i
3 . 4 . 1 D y n a m
The ISP often provides you with a dynamic IP address when you connect to the Internet via
your ISP. It means that the public IP address assigned to your router changes each time you
access the Internet. The Dynamic DNS feature lets you assign a domain name to a dynamic
Vigor2110 Series User's Guide
Display the state for the corresponding entry. X or V is to represent
the Inactive or Active state.
Check to enable this entry.
Make a name for the defined network application/service.
Enter the private IP address of the local host or click Choose PC to
select one.
Click this button and, subsequently, a window having a list of
private IP addresses of local hosts will automatically pop up. Select
the appropriate IP address of the local host in the list.
Specify the transport layer protocol. It could be TCP, UDP, or -----
(none) for selection.
Specify the starting port number of the service offered by the local
host.
Specify the ending port number of the service offered by the local
host.
o n s
o n s
c D N S
i c D N S
35
