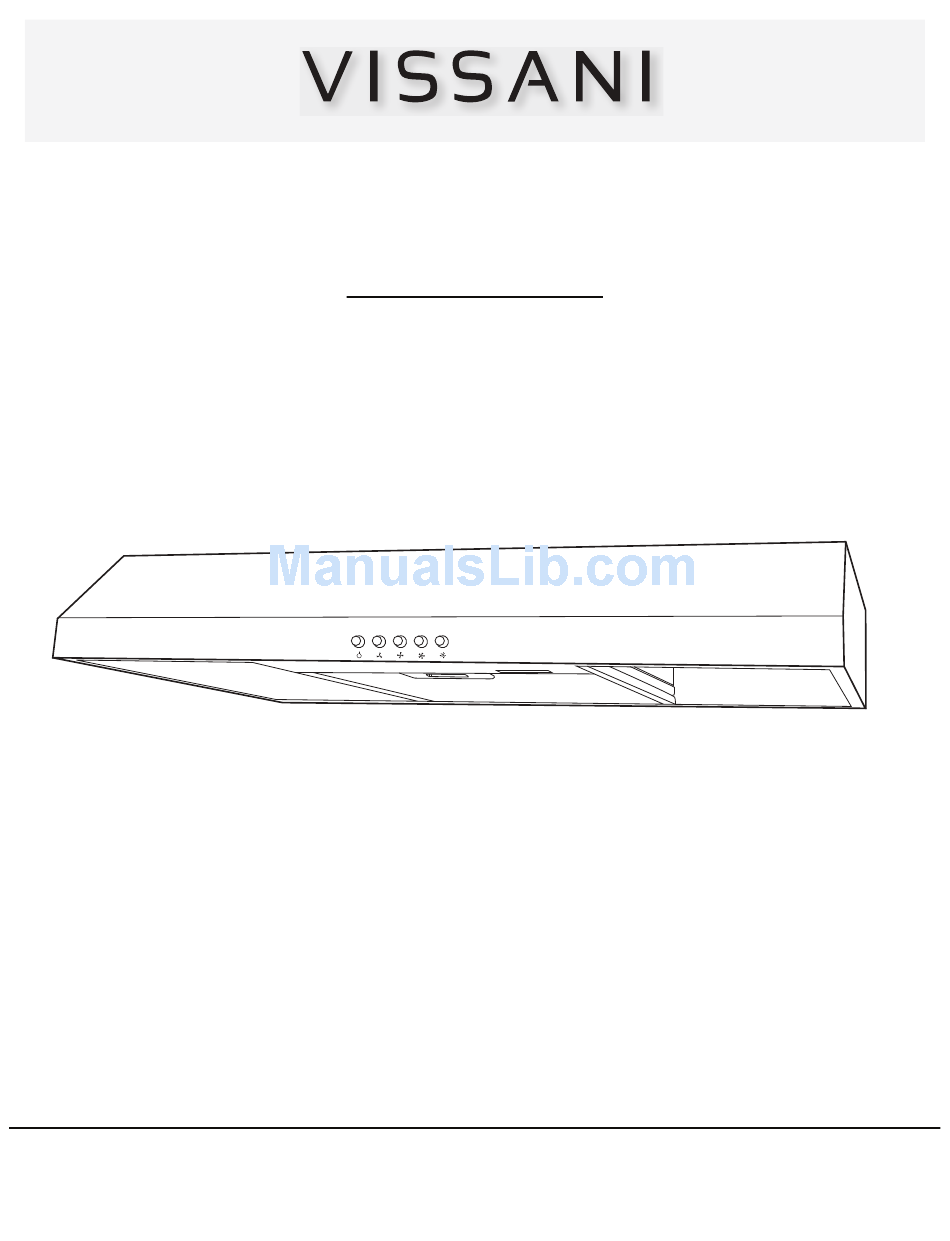

THANK YOU We appreciate the trust and confidence you have placed in Vissani through the purchase of this under cabinet range hood. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available...
Table of Contents Table of Contents ........2 Operation.
Page 3
Safety Information (continued) 6. Ducted fans should always be vented to the outdoors. Never WARNING: To reduce the risk of fire, use only metal duct vent exhaust air into spaces within walls or ceilings, attics, work. Never use plastic duct work. crawl spaces, or garages.
Warranty ONE-YEAR MANUFACTURER DEFECT WARRANTY This range hood is warranted to the original purchaser to be free of defects in material and workmanship for one (1) year from the date of purchase. Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective under normal use and service during the warranty period.
Pre-Installation TOOLS REQUIRED Measuring tape Level Utility knife Adjustable Pencil Tape wrench Flathead Needle nose Phillips screwdriver screwdriver pliers Hammer Electric drill Safety goggles Safety gloves HARDWARE INCLUDED NOTE: Hardware shown to actual size. Part Description Quantity Long tapping screw - M5 x 30 mm Short tapping screw - M4 x 8 mm Please contact 1-800-514-6729 for further assistance.
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Range hood (including filters) Charcoal filter (located inside the hood) Damper (located inside the hood) SPECIFICATIONS Dimensions Volts Hertz Fan CFM Speeds Light Bulb Wattage Stainless Steel Grade 757 mm (29.8 in.) W High 2 x Max.
Pre-Installation (continued) PLANNING INSTALLATION WARNING: Always wear safety goggles and gloves Number of people required: 2 or more during installation. Carefully check the range hood for damage and for missing parts prior to installation. If there is any damage or if you are missing parts, do not proceed with the installation.
Page 8
Pre-Installation (continued) For back venting: Horizontal Wall Venting Vertical Roof Venting □ Cut one rectangular hole (10) with a width of 260 mm (10 1/4 in.) and a depth of 90 mm (3 1/2 in.) in the back wall. Center the hole on the center line (12) of the cabinet and place it 8 mm (9/29 in.) below the cabinet.
Installation For top and back venting methods, refer to steps 1, 2, 3, 4, 6 For inside venting system, refer to steps 1, 3, 5, 6 Removing the electrical knock-out hole Removing the venting hole □ Choose the venting hole to remove for your installation WARNING: Always wear safety goggles and gloves during type.
Installation (continued) Installing the damper Installing the charcoal filter NOTICE: Only install the damper if you are using a venting NOTICE: The charcoal filter should only be installed if you system that does not already have a damper. If using the are not using a venting system.
Installation (continued) Placing the range hood DANGER: Turn off the power circuit breaker or the power switch on the junction box before installing this unit. Touching circuitry inside the range hood while it is energized will result in death or serious injury. DANGER: If installing this unit over a gas range, turn off the gas at the source before installing or serving this unit.
Operation Turning on the range hood Turning off the range hood □ To turn on the fan, press the appropriate speed control NOTICE: The fan and lights operate independently switch [Low Speed (2), Medium Speed (3), High Speed(4)] of each other . to select the desired level of power .
Maintenance FILTERS DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance. When filters wear out, replace them with similar aluminum or Touching circuitry inside the range hood while it is charcoal filters that have stainless steel clips. Also replace filters energized will result in death or serious injury.
Care and Cleaning WARNING: Failure to maintain basic standards of care and cleaning of the range hood will increase the risk of fire . ranGe HOOd The range hood should be cleaned regularly internally and externally to preserve its appearance and performance . do not: □...
Care and Cleaning (continued) FILTERS The filters fitted by the factory are intended to filter out residue and grease from cooking. You do not need to replace them on a regular basis, but you should keep them clean. Do Not: □...
Page 16
Troubleshooting (continued) □ The thermal protection system detects if the motor is too hot The lights work, but the fan is not spinning, is stuck, or is rattling. to operate and shuts the motor down. In this case, the motor will function properly after the thermal protection system cools down (after approximately 10 min.).
Troubleshooting (continued) WIRING DIAGRAM Motor 35W/JDR 16 Gu10 Light Capacitor 5uf 370V AC Black White EXTERNAL DIAGRAM BOTTOM 706 mm (27.75 in.) 250 mm (9.81 in.) 22 mm 28 mm (0.88 in.) D (1.1 in.) 39 mm 22 mm 250 mm 21 mm 9 mm (1.5 in.)
Service Parts UNDER CABINET RANGE HOOD If you are missing parts or if you require replacement parts, please call our customer service team at 1-800-514-6729 (Monday–Friday, 8:30 a.m.–5 p.m., EST). Identify the required part(s) and have the part description(s) ready. Part Description Code Quantity...
Page 19
HOMEDEPOT .COM Please contact 1-800-459-4409 for further assistance .
Page 20
Questions, problems, missing parts? Before returning to the store, call Customer Service Monday–Friday, 8:30 a.m.–5 p.m., EST 1-800-514-6729 HOMEDEPOT.COM Retain this manual for future use.
