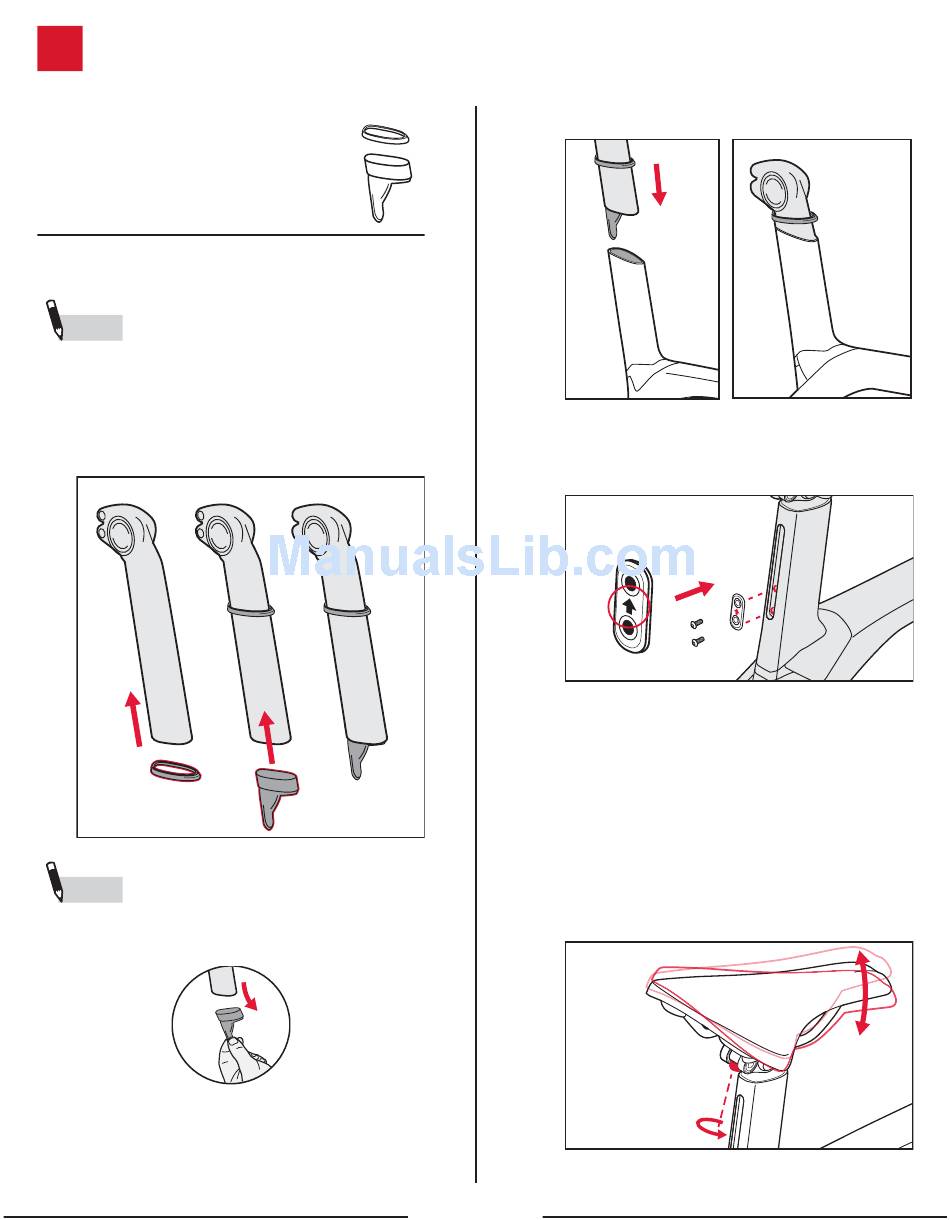

INSTALLING AND ADJUSTING THE SEATPOST

TOOLS AND MATERIALS REQUIRED
• Seatpost
• Seatpost clamp & bolts
1.
Slide the upper seal onto the seatpost.
NOTE
The upper seal will slide more easily if held
perpendicular to the seatpost.
2.
Install the lower seal into the bottom of
the seatpost.
1.
NOTE
For full seatpost insertion, you may have to
remove the lower seal.
• Upper seal
• Lower seal
2.
3.
Pass the seatpost into the seat tube.
4.
Align the arrow on the seatpost clamp to point
upwards, then install the two clamp bolts.
5.
Tighten the bolts just until the seatpost is held.
Do not fully tighten yet.
6.
Install the saddle. Make sure the clamp ear
correctly fits the saddle rail shape.
7.
To adjust the angle of the top of the saddle, loosen
the rear pinch bolt, adjust the angle, then
re-tighten the bolt.
