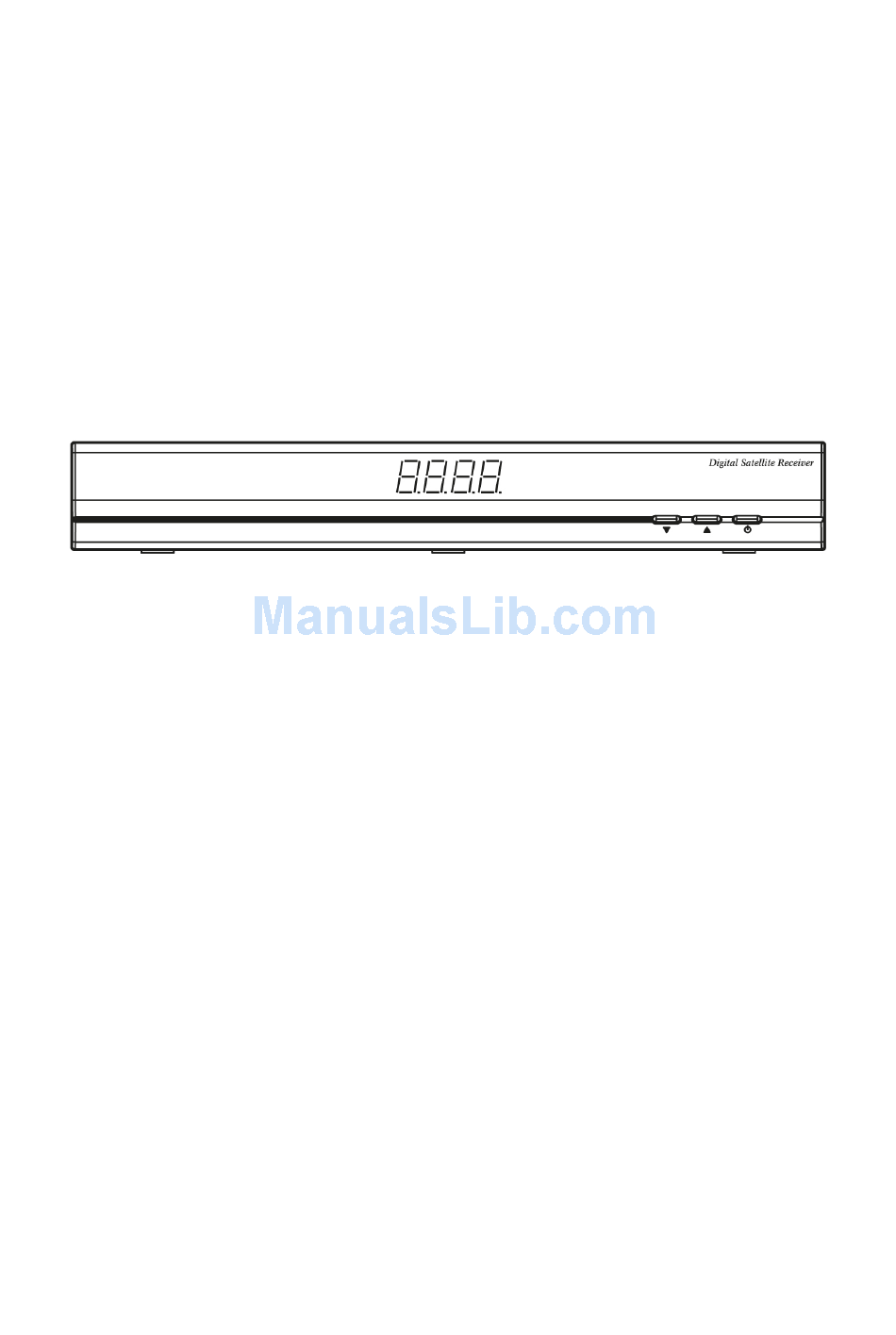

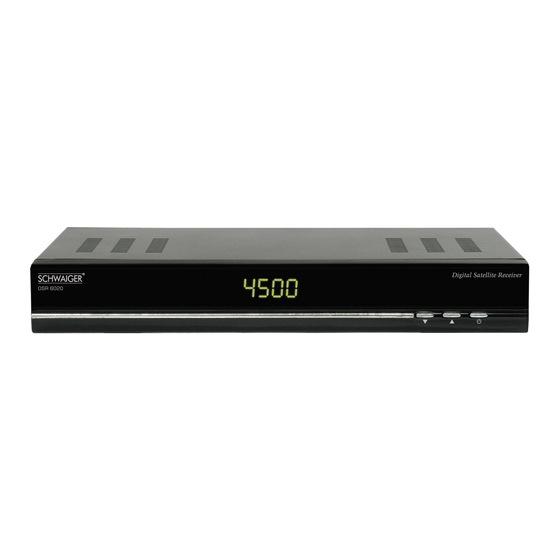

Digital Satellite Receiver
DSR 6020
Operating manual
Modifications and errors reserved.
We do not assume any liability for printing errors.
Dear customer,
Having in mind an environmentally friendly behaviour we
ask you to switch off your receiver after usage by
operating the mains switch at the rear side of the device.
With this, you contribute to the protection of the
environment and save money.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSR 6020 and is the answer not in the manual?

Questions and answers

Related Manuals for Schwaiger DSR 6020

Summary of Contents for Schwaiger DSR 6020

  • Page 1 Digital Satellite Receiver DSR 6020 Operating manual Modifications and errors reserved. We do not assume any liability for printing errors. Dear customer, Having in mind an environmentally friendly behaviour we ask you to switch off your receiver after usage by operating the mains switch at the rear side of the device.
  • Page 3 Remote control Standby Switches on and to the standby mode ZOOM Enlarges TV image LIST Invokes TV channel list TIMER Invokes timer TEXT Invokes Teletext MUTE Turns off sound Multi-picture function, invokes thumbnail view Increases volume/cursor moves to the right In normal mode: invokes current channel list In a menu: confirms menu item CH q...

  • Page 4: Preface

    Preface This operating manual will help you in the • appropriate • safe • favourable usage of the digital satellite receiver, in short, the “receiver”. We assume that the user of the receiver has overall knowledge regarding the handling of audio and video equipment.

  • Page 5: Table Of Contents

    Contents Preface ................4 Style features ..............4 Contents ................. 5 Safety instructions ............7 Basic safety instructions ........... 7 Explanation of safety instructions ........11 Appropriate use ............. 11 Scope of supply ............12 Description ..............13 Connecting the receiver ..........17 LNB cable installation ............
  • Page 6 Software update via satellite .......... 59 Keys with special functions ........60 Switch between TV and SAT ......... 60 Switch between TV and radio ........60 ZOOM ................60 LIST ................61 AUDIO ................61 EPG ................61 TEXT ................62 M/P .................

  • Page 7: Safety Instructions

    Safety instructions Please read the safety instructions carefully before operating the receiver. Please follow all warnings and instructions on the equipment and in the operating manual. Basic safety instructions Electrical connection • Separate the receiver from the power source in case of operational disruptions.
  • Page 8 • If foreign bodies or fluids enter the receiver, immediately pull out the mains plug from the socket. Ask a qualified person to check the equipment before operating it again. Otherwise, there is a risk of electric shock. • Ensure that the power source (socket) is easily accessible.
  • Page 9 separate the device completely from the mains supply, the mains plug must be pulled out of the socket. Suitable location • Place the receiver on a stable and even base. • Avoid proximity to: - heat sources, like e. g. heaters, - naked flames, like e.

  • Page 10: Correct Battery Handling

    Correct battery handling • Batteries may contain toxic agents. Ensure that batteries are not within the reach of children. Children may eat and swallow batteries • Batteries that are getting discharged may damage the remote control. If the receiver is not in use for a longer period of time, remove the batteries from the remote control.

  • Page 11: Explanation Of Safety Instructions

    Explanation of safety instructions The following categories of safety instructions are included in this operating manual: Danger! Instructions with the word DANGER give a warning against possible personal injuries. Caution! Instructions with the word CAUTION give a warning against possible material or environmental damages. ...

  • Page 12: Scope Of Supply

    Scope of supply Check the scope of supply after purchase. The scope of supply may vary according to the type of the receiver. Please follow the information on the packaging. Pieces Description Receiver Remote control Batteries type AAA/1.5 V Operating manual (not shown above)

  • Page 13: Description

    Description With this receiver you are able to receive unencrypted digital satellite channels (free-to-air) via satellite antenna. It is not necessary to programme the receiver yet. The most important broadcasting stations and satellites have been pre-programmed. The satellite antenna has to be directed towards the desired satellite.
  • Page 14 • swedish • croatian • dutch • norwegian • finnish • slovenian • turkish • portuguese The following satellites have been preset by the company: • ASTRA1 19,2°E • Hotbird 13,0°E • Türksat 42°E • ASTRA2 28,2°E • Sirius2 5,0°E •...
  • Page 15 • Symbol rate 2-35 MS/s and 950-2150 MHz input frequency • Manual PID entry possible • 3 keys at the frontage • plug & play • The power draw in standby mode is 2W only. • 100–240 V~, 50/60 Hz mains connection •...
  • Page 16 • SWAP function (via Recall key) • Screen aspect ratios can be set to 4:3, 16:9, and automatically (letterbox) • 8x multi-functional timer linked with EPG, sleep timer • Electronic Programme Guide EPG (up to 14 days in advance, channel-dependent) •...

  • Page 17: Connecting The Receiver

    Connecting the receiver The receiver is connected with your satellite antenna by means of a coaxial cable. If necessary, you have to prepare a coaxial cable before connecting the receiver.  The coaxial cable is not included in the scope of supply.

  • Page 18: Lnb Cable Installation

    LNB cable installation (cp. installation diagram on the next page) For the installation of the F connector on the coaxial cable you will need a knife (ideally a wire stripper) and side cutting pliers.  When stripping the isolation, neither the inner core or the foil nor the wire netting must be damaged.
  • Page 19 Cut the inner core with a cable cutter in such a manner ð that it projects maximum 1 mm from the connector.

  • Page 20: Installation Diagram

    Installation diagram Fasten the F connector of the coaxial cable onto the ð “LNB IN” antenna connection of the receiver. Fasten the other end of the coaxial cable on the LNB.

  • Page 21: Connection With The Hdmi Cable

    Connection with the HDMI cable Insert the HDMI cable in the HDMI socket of the ð receiver. Connect the HDMI-Kabel to the TV set. Follow the ð operating manual of the TV set. Insert the Scart cable in the Scart socket “VCR” of the ð...
  • Page 22 Connection diagram...

  • Page 23: Connection With The Scart Cable

    Connection with the SCART cable Insert the SCART cable in the SCART socket “TV” of ð the receiver. Connect the SCART cable to the TV set. Follow the ð operating manual of the TV set. Insert the Scart cable in the Scart socket “VCR” of the ð...
  • Page 24 Connection diagram...

  • Page 25: Audio Connection Mit Cinch-Kabel

    Audio connection with Cinch-Cable If you want to connect a stereo system, connect it to the receiver with a cinch cable. Connect the „AUDIO-R“ and „AUDIO-L“ sockets of the ð receiver to the audio inouts of the stereo system. Caution! Never connect the Phono input of your stereo system to the receiver;...
  • Page 26 Connection diagramm...

  • Page 27: Connection Of An Audio-Digital Receiver

    Connection of an audio-digital receiver If you want to use 5-channel audio transmission (Dolby digital sound/AC3), you must connect your audio-digital receiver to the coaxial output of the receiver. Caution! Never connect the Phono input of your stereo system to the receiver; it may damage your stereo system. Strictly follow instructions for connecting the Cinch cable provided in the operating manual of your stereo system.
  • Page 28 Connection of the coaxial digital output Insert the coaxial cable in the “COAXIAL” socket of the ð receiver. Connect the coaxial cable to the audio-digital receiver. ð Anschluss-Schema...

  • Page 29: Connection And Rough Direction Of The Antenna

    Connection and rough direction of the antenna You must connect the antenna cable to the LNB before directing the antenna.  Please follow also the instructions in the operating manual of your satellite antenna. Caution! The receiver should only be connected to the power supply after you have connected the antenna cable to the receiver.
  • Page 30 South South East You must have this view when standing behind the antenna. In this angle of 90° nearly all common satellite positions, such as ASTRA1 19.2° E, Eutelsat Hotbird 13° E, and Türksat 42° E, can be found. Depending on which satellite you wish to receive, there must be free sight without any obstacles in this angle.

  • Page 31: First Step

    First step: Switch on your TV set. Please make sure that your TV set has been adjusted to the receiver, i.e. in case of a Scart connection or HDMI connection, the TV set must be set to the correct AV channel. Second step: Switch on the receiver.
  • Page 32 South Picture A Picture B Now, turn your antenna slowly towards the east (to the left) while observing the TV set, until the receiving component points exactly towards the east, i.e. rotate by 90° (see picture below). South East  In case of digital satellite reception, the receiver receives the transmission signal with a time lag.
  • Page 33 Now, move your antenna in such a way that it will become steeper by 1°. For this purpose, pull at the top of the antenna. Now, return the antenna slowly to its initial position towards the south. Now, turn the antenna once again 1°...

  • Page 34: Getting Started

    Getting started Remote control For the remote control two batteries type AAA/1.5V are required. Open the battery compartment. ð Insert two batteries into the battery compartment - ð paying attention to the indicated polarities and push the cover of the battery compartment carefully until it is locked.
  • Page 35 Check the batteries of your remote control at least ð once a year. If one battery has leaked, wear protective gloves and ð clean the battery compartment with a dry cloth. Caution! Batteries may contain toxic agents that are hazardous to health and environment.

  • Page 36: The Receiver

    The receiver Caution! Check that connections of all equipment and the antenna are proper before connecting the receiver to the mains. Insert the mains plugs of the connected equipment in ð the mains socket and switch it on. Switch on the AV channel of the TV set. If the receiver ð...

  • Page 37: Operation

    Operation Screen-inlays while switching channels When a channel is switched, an information bar appears on the screen for 5 seconds. In this information bar, you will find the following indications: Channel name Received satellite Current date Current time (According to the presetting in menu item “Time“).
  • Page 38 symbol channel list. An overview of the channel-group symbols is provided on the next page. Info Information on the current and the following programme “Now” – “Next” Info Information on the currently active channel list Channel-group symbols Symbol Channel group Sport News Music...

  • Page 39: User Interface On The Tv Screen

    User interface on the TV screen You can do individual settings of your receiver using the menus in the user interface. For this purpose, both the receiver and the TV set need to be switched on and connected by a Scart or HDMI cable. Press the “MENU”...

  • Page 40: Menu Structure

    Menu structure Main menu Sub-menu Description Language Language Selection of the (symbol language in which the corresponding OSD menu is to be country flag) displayed. Channel TV Channel List Page: 42 (symbol: Radio Channel List Page: 42 Delete All Page: 42 Page: 42 Installation Antenna Setup...

  • Page 41: Menu Navigation

    Menu navigation Use the keys “CH▲”, “CH▼”, “V+”, and “V-” to navigate within the menus. The selected menu items are marked. Confirm your selection with the “OK” key. By pressing the “EXIT” key you can exit the menu again. Changes must be confirmed additionally.

  • Page 42: Channel (Symbol: Tv)

    Channel (symbol: TV) Sub-menu Description TV channel list 1 Favorite, 2 Move, 3 Find, 4 Sort, 5 Edit, 6 Type, Select, V- V+ Group, OK Enter, EXIT Exit Radio channel as indicated above list Delete all Deletion of the complete channel list. For this purpose: Enter password (default value 0000) and confirm warning message with Yes.
  • Page 43 4 Sort Sorting of the complete channel list according to the offered options. The list must be confirmed with OK. As long as the existing list has not been overwritten, the last status before confirming can be restored. 5 Edit ...
  • Page 44 3 Lock By marking with the 3 key, selected channels can be marked to be locked. Please confirm your selection and the safety message by pressing the "OK“ key. Then, the selected channels require the entry of a password (parental lock). 4 Create By pressing the 4 key, the menu "Create"...
  • Page 45 3 of the remote control. For deleting a symbol mark the “Del“ field and press the OK key. Select the "OK" field as soon as the channel name is complete and press the "OK" key to confirm. The changed channel name will be accepted.
  • Page 46 By pressing the OK key, an editing mask will be displayed. By pressing the keys CH , CH , V- and V+, the curser can be moved over the keyboard. The selected field is marked yellow. To select it press the OK key. The cursor jumps to the next place.
  • Page 47 6 Del(ete) all Via the 6 key you can mark all channels to be deleted. Thereafter, individual channels can be deselected again by pressing the 1 key. Please confirm your selection and the safety message by pressing the "OK“ key. 6 Type (channel group) Here, you can assign selected channels to determined channel groups (Types) as desired.

  • Page 48: Installation (Symbol: Satellite Antenna)

    Installation (symbol: satellite antenna) Sub-menu Description Antenna setup Satellite Satellite selection (example: Astra1 19.2° East) LNB Type Select LNB type (default value is Universal) 22KHz activation, (Note: with LNB type Universal, activation occurs automatically) DiSEqC Select DiSEqC level DiSEqC Select DiSEqC command Switch Example: Astra and Hotbird double...
  • Page 49 TP Scan With this scanning function, you can scan the (manual preset frequencies (transponders) individually. channel scan) The transponder details can be changed manually. The procedure is initiated with "Scan“. Satellite Selection of the satellite to be scanned TP Index Frequency selection The selection options are displayed...
  • Page 50 Scan Mode All = encrypted and unencrypted channels Free = only unencrypted channels Scan Selection between TV and Channel radio or only TV or only radio Search Start scan by pressing the OK key. Auto Scan Here you can scan a selected satellite (unique (example: Astra1 19.2°...
  • Page 51 Table for the TP Index Sub-menu Description Create new frequency (transponder): Menu item "TP frequency": Frequency: set desired frequency Menu item "Symbol rate": set corresponding symbol rate Menu item Polarity: set corresponding polarisation The new frequency (transponder) is created after execution. When exiting the menu confirm the safety message by pressing the OK key.

  • Page 52: System Setup (Symbol: Receiver)

    System Setup (symbol: receiver) Sub-menu Description Audio First Audio Preselection of audio language Language (if offered by the broadcasting station) Second Preselection of audio language Audio (if offered by the broadcasting station) TV System Display Selection of the transmission Mode system Default selection: HDMI 576i Aspect...
  • Page 53 for selecting the start-up channel. Confirm the selected channel by pressing the OK key. Time & Timer Time Optional input of time and time Setting zones. See following table for time setting. Timer See following table for timer setting. OSD Setting Subtitle Enable / disable Display...
  • Page 54 Input of a new password. Password (Make sure you will remember the new password) Confirm Confirm new password. Password LNB Power Enabling and disabling LNB power supply. ON is preset. Other Auto shutdown: 180 min / 120 min / 60 min / disable Preset: 180 min Using the “Auto Shut Down”...
  • Page 55 Table for time setting Sub-menu Description GMT Usage Enable / disable GMT Offset Setting of the location-dependant divergence to Greenwich Mean Time Date Enabled if sub-menu “GMT Usage“ is disabled: Date input with the keys 0-9 of the remote control Time Enabled if sub-menu “GMT Usage“...
  • Page 56 Table for timer setting Sub-menu Description Timer Number Selection of timer number 1-8. Timer Mode Type of repetition (once, daily, weekly, monthly, yearly, off). With the setting “Off“, the timer will be disabled. Timer Service Switching between programme timer (TV or radio channels) and reminding function (message).
  • Page 57 displaying the details by pressing the "OK" key, the result can be taken over directly to the timer by pressing the 2 key.

  • Page 58: Tools (Symbol: Tool Case)

    Tools (symbol: tool case) Sub-menu Description Default Value Reset receiver to the default value. All changes are cancelled. (requires If the receiver is reset to the default values via password the OSD menu, the language selection appears input) in the main menu after completion of the procedure.

  • Page 59: Software Update Via Satellite

    Software update via satellite  The update has nothing to do with the storage of new TV channels. It is rather meant to update the system software of the receiver.  Normally, the update is not required for a trouble- free operation of the receiver.

  • Page 60: Keys With Special Functions

    Keys with special functions Switch between TV and SAT With the “TV/SAT” key you can switch between TV and satellite functions. (This function has to be provided by your TV set). Press the “TV/SAT” key until you have set the desired ð...

  • Page 61: List

    LIST Press the “LIST” key once. Here you have the option to edit the channel list as already described earlier under menu item “Channel“. AUDIO With the “AUDIO” key you can select the audio track if a broadcasting station offers multi-channel sound. Additionally, you can enable the Dolby Digital mode here.

  • Page 62: Text

    TEXT Teletext is an information system displaying Teletext on your TV set. For Teletext reception, the selected channel must support this function. The TTX symbol appears when channels are changed. Comparing our receiver with others you will notice that our Teletext is extremely fast.

  • Page 63: Mute

    By pressing the “EXIT“ key, you will leave the multi- picture mode. The channel you marked last will appear as complete image on your screen. MUTE By pressing the “MUTE“ key, the sound will be turned off. By pressing the “MUTE“ key again, the sound will be turned on again.

  • Page 64: Info - Acoustic Signal For Directing The Satellite Antenna

    INFO - acoustic signal for directing the satellite antenna For this purpose, press the “INFO” key. Apart from the current reception parameters, you will get information on the signal strength and quality. Additionally, you can enable an acoustic signal by pressing the 1 key. ...

  • Page 65: Uninstalling The Receiver

    Uninstalling the receiver Separate the receiver and connected equipment from ð the power supply. Loosen the LNB cable from the receiver. ð Take the batteries out of the remote control, if you will ð not use the receiver for a longer period of time. Pack the receiver, the cables and the remote control in ð...

  • Page 66: Tips & Tricks/Trouble Shooting

    Tips & tricks/trouble shooting Symptom Possible cause and remedy Satellite cannot Example: Astra1 19.2° East be found, or 1 key (default setting: “Das Erste“) no signal “INFO“ key (“Das Erste“, FR11837) Signal AND quality are both at 0% Direct vertical reflector to the south. Turn some millimetres to the left, wait approx.
  • Page 67 Frontal display The system is not connected properly. shows channel Check connection of the SCART cable or location. HDMI cable. The TV set does The TV set is not in AV mode. not display any Switch the TV set to the respective AV input. image.
  • Page 68 The remote The batteries are exhausted. control does not Replace the batteries. work. The remote control is not directed properly. Aim the remote control towards the front side of the receiver and ensure that there is no obstacle between the remote control and the receiver.

  • Page 69: Disposal

    Disposal European disposal directive 2002/96/EC Never throw the receiver into normal household waste. Ask your municipal authorities or local government about different methods for disposing of the equipment in an eco-friendly and proper manner. Never throw the batteries into normal household waste. Batteries may contain toxic agents.

  • Page 70: Specifications

    Specifications Receiver Dimensions in mm (W×D×H) 280 × 170 × 46 Weight in grammes Receiver 904 g Remote control 80 g (without batteries) Range of input frequency 950 MHz ~ 2150 MHz IF band width 55 MHz / 8 MHz (below 5MS/s) LNB power supply 13/18 V, 0.30 A max.
  • Page 71 COAXIAL Digital audio output HDMI HDMI connection RS 232 RS 232 (Service) Power supply Input voltage power pack 100-240 V ~, 50/60 Hz Power consumption approx. 20W (operation with Single LNB) approx. 5W (receiver only, operation mode) approx. 2W (standby) Operating temperature 0 ºC ~ +40 ºC Storage temperature...

  • Page 72: Manufacturer

    Manufacturer SCHWAIGER GmbH Würzburger Straße 17 90579 Langenzenn Telephone: 0049 (0)9101 / 702 – 0 E-Mail info@schwaiger.de Website: www.schwaiger.de Dear customer, Past experience has shown that many complaints can be settled through a simple telephone call. In case problems should arise with your device we kindly ask you to contact our service hotline first.

  • Page 73: Guarantee

    Guarantee The guarantee for the digital camping satellite system of Schwaiger GmbH is in conformity with the prevailing statutory regulations at the time of purchasing the product. The term of guarantee is 2 years. Modifications of the device lead to an extinction of the manufacturer’s guarantee obligation.

  • Page 74: Conformity Hints

    The manufacturer hereby declares conformity with the - following guidelines and standards for this product: • Low-voltage guideline 2006/95/EC • Guideline on electromagnetic compatibility, 2004/108/EC • Ecodesign Directive 2009/125/EC, regulation 107/2009 Equipment type/model: Digital Satellite Receiver DSR6020 011 Langenzenn, 23/04/2010 SCHWAIGER GmbH...

  • Page 75: Glossary

    Glossary Alternating Current Connection for alternating current Direct Current Connection for direct current Cinch Coaxial connector for connecting TV set or stereo connector system. DiSEqC Digital Satellite Equipment Control Digital system, with which the receiver can control different components of the external unit. It is especially used for selecting from multiple satellite positions (for example Astra and Eutelsat).
  • Page 76 On-screen display Menu control displayed on the screen. Identification number of a received data stream The PIDs ensure that a channel is received completely. Receiver Receiver unit, which converts signals from the antenna into video and audio signals. SCART A 21-pole connector for connecting the TV set to the receiver.
