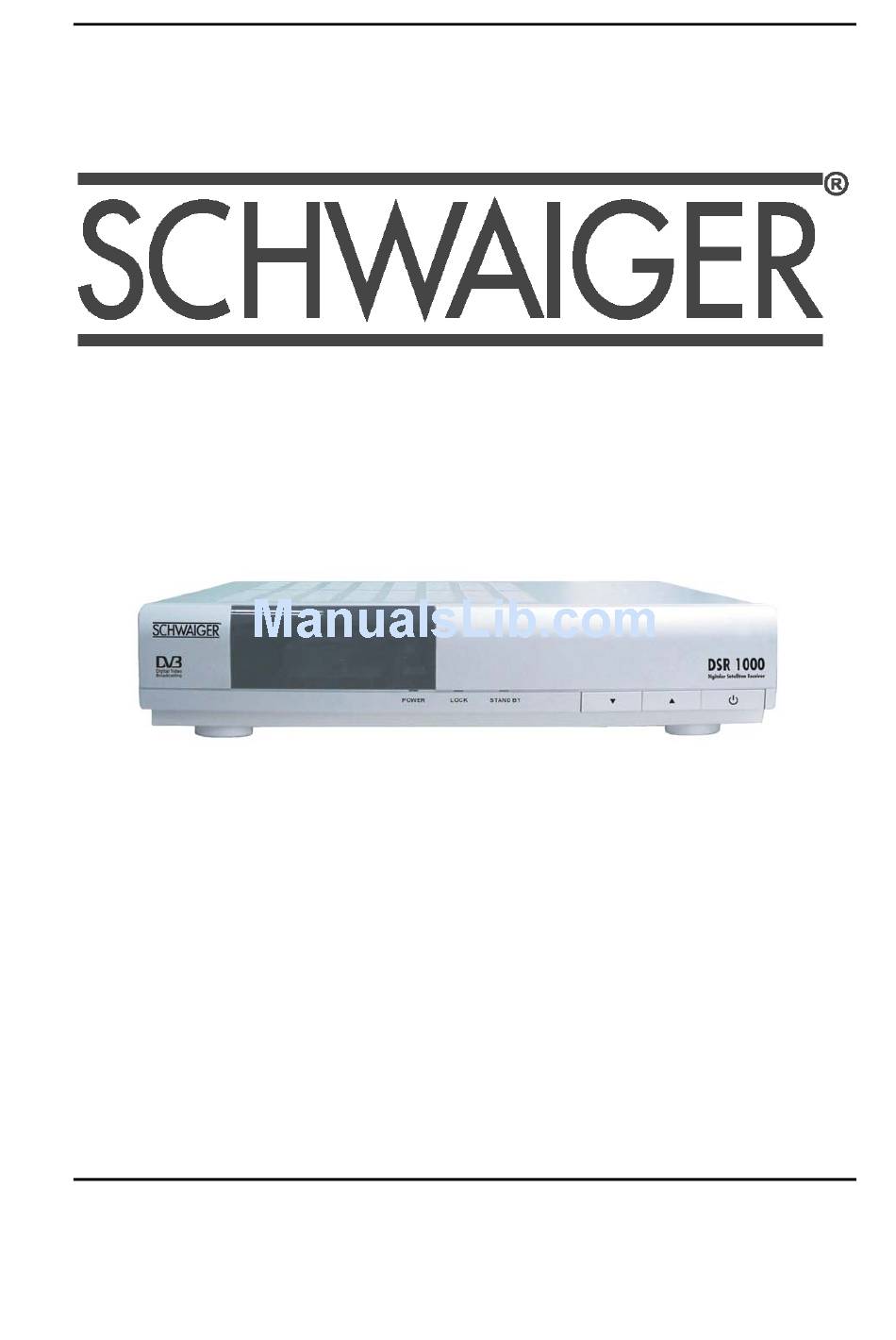

  • Page 1 User’s Guide for DSR 1000...

  • Page 2: Table Of Contents

    1. General Information ..............5 1.1 Main Features.....................5 1.2 For Your Safety ..................5 1.3 Unpacking....................6 1.4 General Operation of the DSR 1000 ............6 1.5 RCU ......................7 1.6 Front Panel ....................7 1.7 Rear Panel ....................9 2. Installation of DSR 1000............. 10 2.1 Connecting to Antenna and TV...............
  • Page 3 7. EPG (Electronic Program Guide) ..........26 8. Timer.................... 27 8.1 Time Adjust ....................27 8.2 Time Reservation ..................27 9. Antenna Direction Help.............. 28 10. Front Panel Display ..............29 11. Menu Tree of DSR 1000............30 12. Trouble Shooting..............31 - 3 -...
  • Page 4 Table of Figures, Charts and Tables Figure 1: Remote Control Unit ............7 Figure 2: Front Panel ............... 8 Figure 3: Rear Panel................. 9 - 4 -...

  • Page 5: General Information

    The DSR 1000 allows you to view a variety of satellite programs. This user’s guide covers the installation of the DSR 1000 and the necessary steps to operate various features. It also explains special features available only in this DSR 1000 in detail, and will allow you to take full advantage of these features.

  • Page 6: Unpacking

    1.3 Unpacking Unpack the DSR 1000 and check to make sure that all of the following items are included in the packaging. • 1 x Remote Control Unit (RCU) • 1 x User’s Guide • 2 x AAA batteries1 x DSR 10001 x Audio/Video Cable 1.4 General Operation of the DSR 1000...

  • Page 7: Rcu

    1.5 RCU Figure 1: Remote Control Unit - 7 -...

  • Page 8: Front Panel

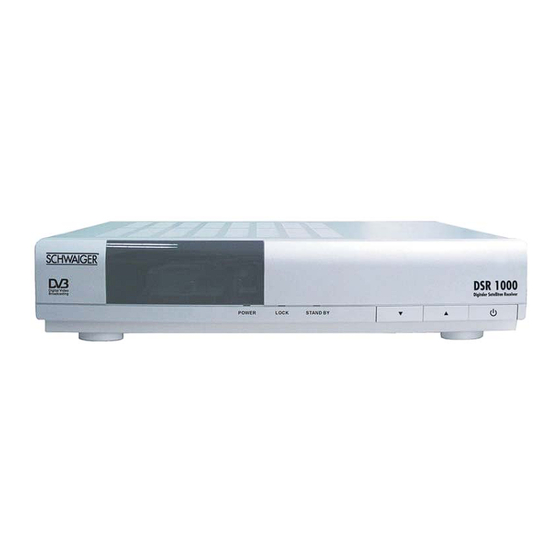

    1.6 Front Panel Figure 2: Front Panel FUNCTOIN Turns on and off the power of the receiver. When watching, changing to the previous and next channel, or CHV/Λ moves to the next higher or lower item in the menu - 8 -...

  • Page 9: Rear Panel

    1.7 Rear Panel VIDEO LNB IN AC 90-240V AUDIO 50Hz/60Hz POWER LNB OUT RS-232 DIGITAL AUDIO Power Jack Power ON/OFF Connect to digital amplfier Connect to the TV or VCR sing scart cable Connect to the TV using RCA jack Connect to the TV or audio tuner Connect to a PC for software upgrade LNB IN: Connect to satellite antenna...

  • Page 10: Installation Of Dsr 1000

    2. Installation of DSR 1000 This section explains the installation of DSR 1000. Refer to the manuals supplied with the equipment for the installation of outdoor equipment such as the dish antenna. When adding new equipment, be sure to refer to the related parts of the manual for the installation.

  • Page 11: Connecting To Tv Using Rca Support

    2.3 Connecting to TV using RCA Support VIDEO AUDIO VIDEO LNB IN AUDIO AC 90-240V 50Hz/60Hz POWER LNB OUT RS-232 DIGITAL AUDIO 2.4 Connecting to Digital Amplifier AUDIO DIGITAL AUDIO CONVERTOR OR ANPLFIER VIDEO VIDEO LNB IN LNB IN AUDIO AUDIO AC 90-240V 50Hz/60Hz...

  • Page 12: Menu Information

    3. Menu Information Once you have installed and connected the cables of the DSR 1000, the menu will is displayed. This menu consists of 5 main menus as shown below. • Channel Manager • Program Guide • Timer • User Installation •...

  • Page 13: User Installation

    4. User Installation This menu consists of 5 sub-menus as shown below. • Antenna Setup • Channel Search • System Setting • Parental Lock • Factory Default 4.1 Antenna Setup – 1) DiSEqC 1.2 1. Antenna : You can select a maximum of 16 antennas with the combination switches.

  • Page 14: Antenna Setup - 2) Fixed

    4.2 Antenna Setup – 2) Fixed 1. Antenna : You can select a maximum of 16 antennas with the combination switches. 2. Type : Select your antenna type to be Fixed 3. Satellite : Select satellite you want. 4. LNB Type : Select your LNB type. If you have universal LNB, select Univ.
  • Page 15 4. Transponder : Select desired transponder using keys. Pressing the OK key will display a Down List Box which also lets you select the desired transponder. 5. Frequency & Symbol Rate : Edit the Frequency and Symbol Rate. 6. Polarization : Select Hor or Ver. 7.
  • Page 16 13. Go to 0” for DiSEqC 1.2 : When you install the motor of DiSEqC 1.2 antenna, you can select this function to move the center of the antenna to 0°. 14. Search Option : DSR 1000 allows you to search channels with convenient options as shown below. •...

  • Page 17: Channel Search - 2) Fixed

    3. LNB power: If your DSR 1000 is connected to the LNB, select YES. But if your DSR 1000 is connected to another receiver...

  • Page 18: Parental Lock

    4.6 Parental Lock This function allows you to lock the channel with a password in order to prevent children from accessing the channel. You can also protect your installed data and information using the Install Lock. • How to change the Password Enter the current password.

  • Page 19: Factory Default

    Note: Default password is 0000. Warning: Do not forget your password. 4.7 Factory Default If you want to bring DSR 1000 back to the factory default condition, select Factory Default and press the OK key. Then a warning message will be displayed. To confirm, select OK.

  • Page 20: General Viewing Function

    5. General Viewing Function The following describes the basic functions of your DSR 1000 while watching satellite TV or listening to satellite radio. While watching, the current channel information will be shown on the bottom of the screen if you press the INFO button on the RCU.

  • Page 21: Volume & Audio Control

    1. Volume Control To increase or decrease volume, use key on the RCU or VOL< > on the front panel. Note: DSR 1000 has 18 volume levels and this can be controlled from the volume level of your 2. Mute...

  • Page 22: Sat

    5.8 Sat If you searched channels from more than one satellite and want to have a channel list for each satellite, press SAT key on the RCU, a satellite list will be displayed. Select one satellite you want, press OK key on the RCU then you will have a channel list of your choice.

  • Page 23: Channel Manager

    6. Channel Manager DSR 1000 provides one of the most powerful channel managing functions in the world. This function not only allows you to watch channels but also do a lot of interesting and useful things. 6.1 Channel Manager Channel manager consists of TV channel and Radio channel.

  • Page 24: Move Channel

    1. When you enter channel manager, the default favorite group will be shown once on the screen as Favorite 1. 2. If you press favorite key (Green color key) on the RCU, a new favorite group will be created as Favorite 2.

  • Page 25: Rename Channel

    6.5 Rename Channel In the Main Page, press MENU key on the RCU, and then select Rename on the command menu. This Rename command allows you to rename the channel. First select the channel to be renamed and press OK key, then a Keypad dialog box will be displayed.

  • Page 26: Epg (Electronic Program Guide)

    7. EPG (Electronic Program Guide) DSR 1000 provides EPG function for you to get access to the TV Guide (or Radio Guide if you are listening to radio channels) that will show the titles and other information of the current and next programs on different channels.

  • Page 27: Timer

    8. Timer You can adjust the real time as well as you can program the timer in various ways. This function is one of the strong points of DSR 1000. 8.1 Time Adjust Usually you get the information real time from the satellite automatically but sometimes they transmit wrong information.

  • Page 28: Antenna Direction Help

    Second, enter the value of Longitude and Latitude. After entering the correct value of your position, place your cursor on Compute and press the OK key. Then DSR 1000 shows the exact information of antenna. - 28 -...

  • Page 29: Front Panel Display

    10. Front Panel Display : VCR MODE : UP LOAD PROCEDURE : DOWN LOAD : SYSTEM WAITING PROCEDURE : ERROR IN DATA : FLASH ROM ERROR TRANSMITTING : TV MODE : SYSTEM BOOTING - 29 -...

  • Page 30: Menu Tree Of Dsr 1000

    11. Menu Tree of DSR 1000 First Time Installation Welcome System Settings User Installation User Installation Channel Search Timer PICTURE Menu Language Antenna Setup Channel Search Search 1Sat/TP/Net Timer Adjustment Menu Navigation Search 1 Sat/TP/Net Tv Channels Parental Lock System Settings...

  • Page 31: Trouble Shooting

    SRS-5518-GB is No sound or picture, The DSR 1000 is in Press the standby standby mode. standby mod but the front panel button. red light is ON.
  • Page 32 UHF channel properly. The systen is connected The system is connected Change the SRs-5518-GB Change the DSR 1000 using RF leads and the using RF leads and the output channel to a There is interference output channel to a more...
