- Page 1 Operating manual 4.8 kHz CF Measuring Amplifier ME50S6 A0260-1.1 en...
-
Page 3: Table Of Contents
..........Measuring Amplifiers on Eurocards ME50S6 . -
Page 4: Safety Instructions
General dangers in the case of non-observance of the safety instruc- tions The ME50S6 complies with the state of the art and is operationally reliable. If the device is used and operated inappropriately by untrained personnel, resid- ual dangers might develop. - Page 5 • When cleaning, please ensure that no liquid finds its way into the device or onto the contacts. Residual dangers The ME50S6 scope of performance and supply covers part of the measuring- technology, only. The plant designer/constructor/operator must in addition de- sign, realise and take responsibility for the measuring-system’s safety such that potential residual dangers are minimized.
- Page 6 ME50S6 If there is any risk of remaining dangers when working with the, it is pointed out in this introduction by means of the following symbols: DANGER Symbol: Meaning: Maximum danger level Warns of a decidedly dangerous situation in which failure to comply with safety requirements can lead to death or serious physical injury.
- Page 7 Do only quit error messages if the reason for the error has been eliminated and there is no more danger. Reconstruction and modifications HBM’s express consent is required for modifications regarding the ME50S6 construction and safety. HBM does not take responsibility for damage result- ing from unauthorized modifications.
-
Page 8: Measuring Amplifiers On Eurocards Me50S6

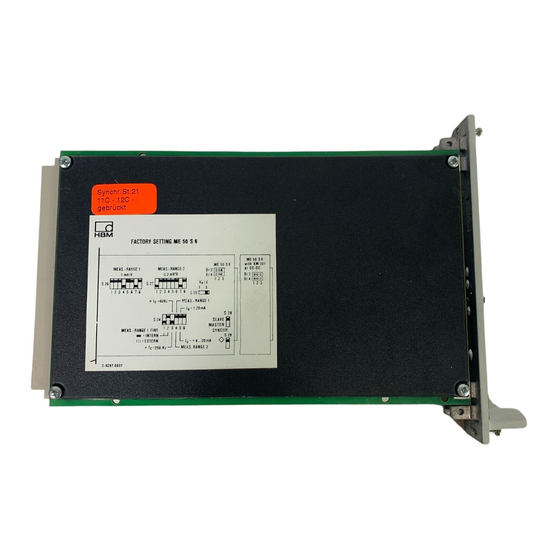

ME50S6 Measuring Amplifiers on Eurocards ME50S6 The Eurocards ME50S6 are 4.8KHz carrier frequency measuring amplifiers for strain gauge transducers. All plug-in cards are delivered without housing or rack frame and without power supply unit so that an individual setting in an existing 19” rack mounting system is possible. -
Page 9: Electrical Connection
ME50S6 Electrical Connection 2.1 Transducer Connection Strain gauge transducers are connected by means of 6-wire circuits. contact measuring signal(−) ..pin 30a sensing line to 32a(−) ..pin 32c bridge supply voltage(−) . -
Page 10: Supply Voltage
ME50S6 2.2 Supply Voltage +14.5...+15.5 V (max.70 mA) ....pin15a −14.5...−15.5 V (max.65 mA) .... -
Page 11: Pin Assignment
ME50S6 2.5 Pin Assignment 64-pin right angle plug housing not occupied not occupied not occupied not occupied output U =+14.5...+15.5 V; <50 mA add. MR1 external fine balance (R=5 kOhm) MR1 external fine balance. tap MR1 external fine balance (R=5 kOhm) -
Page 12: Putting Into Operation
ME50S6 Putting into Operation If the manufacturer’s settings, such as the coarse measuring range, are re- tained the operation is limited to the following points: 3.1 Select Measuring Range With the ex-works setting measuring range 1 ("1 mV/V) is always switched on. - Page 13 ME50S6 ME50 Fig. 3.1: Front view ME50S6 A0260-1.1 en...
-
Page 14: Individual Settings
ME50S6 Individual Settings Various ex-works settings on the measuring amplifier card can be altered. Adaptations, which are of no problem, can be carried out by means of the DIP switch on the board or also by externally wired switching elements. If re- quested with the order, they can be carried out by the manufacturer. -
Page 15: External Fine Balancing Of The Mr1
ME50S6 =5 V MR1:S26 ; MR2:S27 ex-works sett. Meas.range(mV/V) 0.17 . . . 0.24 MR 2 "0.2mV/V 0.22 . . . 0.32 0.30 . . . 0.42 0.39 . . . 0.55 0.52 . . . 0.73 0.68 . . . -
Page 16: Calibration Signal
... pin 24c 4.5 Calibration Signal The measuring amplifier ME50S6 operates on a 6-wire technique, i.e. the cal- ibration and zero compensation signals are formed from the bridge supply voltage fed back; thus they are independent of transducer, connecting cable and pin resistances. -
Page 17: Synchronization
ME50S6 4.7 Synchronization When synchronizing several units of the type ME50S6 one of them has to be switched as master; its carrier frequency is used for reference. Pins 12c and 15c of all amplifiers concerned must be joined for synchronization. The master amplifier is selected by switch S28. -
Page 18: Options
ME50S6 Options 5.1 Stabilized Power Supply The module KM001 can be used to connect the measuring amplifier to a sym- metrical supply voltage "15.6...25.0 V. When installing the module KM001, attention must be paid to the marking. The jumpers BR3 and BR4 have to be configured according to the table below. -
Page 19: Current Output Module
ME50S6 5.3 Current Output Module The module EM002 can be installed to obtain a current output. The pin assignment is as follows: output current ..pin 19a supply zero .. -
Page 20: General Notes
Certain regulations concerning electrical installation have to be observed in plants with strongly disturbed supply mains systems. The most important points are listed up in the HBM leaflet ” Hints for connection/disturbances”. An extensive summary is given in the installation regulations VDI/VDE 3551. The extent of certain measures to be taken depends on the specific applications. -
Page 21: Technical Data
ME50S6 Technical Data Type ME50S6 Carrier frequency 4800"0.5 % Bridge excitation voltage 1"2 % 5"0.2 % Transducers which can be connected strain gauge transducers (full bridge) Ω 60...4000 110...4000 maximum cable length Number of measuring ranges measuring ranges, adjustable in 12 steps mV/V 1...20... - Page 22 ME50S6 Technical Data (Continuation) Noise, referred to input µV/V <0.2 (peak-to-peak); typ. 0.1 Linearity deviation related to nominal voltage <0.02; typ. 0.01 Temperature influence per 10 K in nominal temperature range on measuring sensitivity <0.1; typ. 0.05 on zero point at amplifier output in MR 2 mV/V at U =5 V (4x350 Ω)
-
Page 23: Component Layout
ME50S6 Component Layout A0260-1.1 en... -
Page 24: Copy Of Declaration Of Conformity
ME50S6 Copy of Declaration of Conformity A0260-1.1 en... - Page 25 ME50S6 A0260-1.1 en...
- Page 26 ME50S6 A0260-1.1 en...
- Page 28 Hottinger Baldwin Messtechnik GmbH Postfach 10 01 51, D-64201 Darmstadt Im Tiefen See 45, D-64293 Darmstadt Tel.: +49/61 51/ 8 03-0; Fax: +49/61 51/ 8039100 E−mail: support@hbm.com www.hbm.com A0260−1.1 en...
