Summary of Contents for Tennant 3610

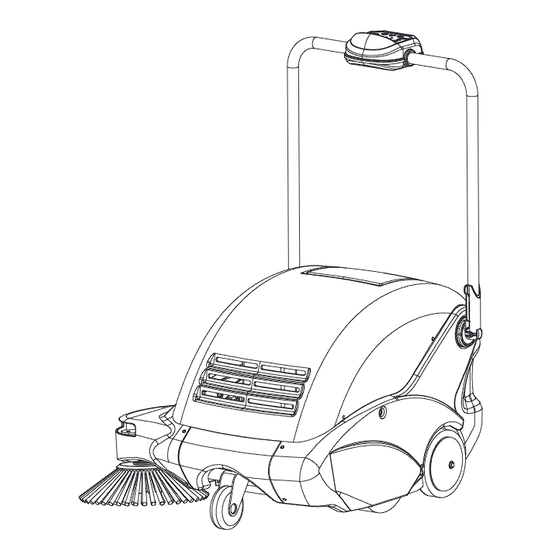

- Page 1 24” Battery Sweeper Model No: Operator and Parts Manual 614214-Tennant 3610 614213-Nobles Scout 24 614201 Rev. 01 (03-05) Cod. PLDC01506 Home Find... Go To..
- Page 2 Tennant Company PO Box 1452 Minneapolis, MN 55440 Phone: (800) 553-8033 or (763) 513-2850 www.tennantco.com Home Find... Go To..
-
Page 3: Table Of Contents
TABLE OF CONTENTS: SAFETY PRECAUTIONS: TECHNICAL CHARACTERISTICS: UNPACKING: MACHINE PREPARATION: MACHINE AND CONTROL PANEL COMPONENTS: USE OF THE ON-BOARD BATTERY CHARGER: STARTING OF THE MACHINE: OPERATIONS TO MAKE FOR CORRECT USE: WASTE HOPPER EMPTYING AND CLEANING: SIDE BRUSH REPLACEMENT: MAIN BRUSH REPLACEMENT: CLEANING AND SERVICING THE FILTER: ACTUATOR FUNCTION: ADJUSTING THE SIDE BRUSH:... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS: FOR SAFETY: Do not operate machine: This machine is intended for commercial use only. It is designed to pick up dirt, dry debris and dust from dry - In flammable or explosive areas. hard floor or carpeted surfaces in an indoor environment. It is not constructed for any other use. -
Page 5: Unpacking
UNPACKING: - Use manufacturer supplied or approved replacement parts. Unpack the machine carefully avoiding movements that can cause damage. - All repairs must be performed by a qualified Once the machine is unpacked, check the condition of its service person. parts. - Page 6 MACHINE AND CONTROL PANEL Handle assembly: - Release the handle locks as shown COMPONENTS: - Rotate handle into working height position - Return handle lock to the locking position The machine is equipped with a simple panel control that controls all the operational functions of the machine. Unlock Handle lock A) On-Off main switch of the machine...
-
Page 7: Starting Of The Machine
USE OF THE ON-BOARD BATTERY CHARGER: When the battery on the machine is discharged, the red led on the control panel illuminates and all functions of the machine will automatically stop: the operator must then turn off the machine and start the charging proce- dure by connecting the machine battery charger plug into an AC electrical outlet. -
Page 8: Side Brush Replacement
session. ATTENTION: This machine is not intended for wet surface sweeping. However, if you encounter a MAINTENANCE CHECK LIST slightly damp environment (moisture buildup on the floor), it is required that you turn the vacuum fan switch off to prevent filter damage. Machine damage The belts for slackening due to wet debris pickup is not covered under The tightness of nuts and screws... -
Page 9: Cleaning And Servicing The Filter
operation out at the end of each work cycle. MAIN BRUSH REPLACEMENT: NOTE: dusty environments - Tilt the machine backwards until the handle is touching If you are using the machine in a dusty environment it is a the ground and the main brush is easily reached. good idea to use the manual filter shaker more frequently. -
Page 10: Programming
CONTROL PANEL DISPLAY CODES: Safety code Cause Actions to take Short circuit brush protection: Reset by turning OFF the stops all functions machine and starting again Dissipater at high The machine resets when temperature. Activates if temperature lowers under 176° F temperature is over 194°... - Page 11 ELECTRICAL SCHEMATIC: Home Find... Go To..
- Page 12 CHASSIS GROUP Home Find... Go To..
-
Page 13: Chassis Group
PLATE, SKIRT, LEFT SIDE 614204 LABEL, SCOUT 24 1016185 SKIRT, LEFT SIDE 614203 LABEL, 3610 1016186 TRAY, BATTERY 614202 LABEL, WARNING, SCOUT 24 / 3610 1016187 COVER, ELECTRONICS 614396 WASHER, 4x12 614366 PIN, ACTUATOR MOTOR 1016286 NUT, M5, DIN 985 1016189... - Page 14 BRUSH AND FILTER GROUP Home Find... Go To..
-
Page 15: Spacer
BRUSH AND FILTER GROUP Ref. Part. No Description 1016267 PIN, PULLEY 1016268 PIN, ROTATION 1016269 JOINT, ARTICULATED, ADJUSTOR ROD 1016230 SHAFT, DRIVE, MAIN BRUSH 1016270 MOTOR, BRUSH, SIDE 1016231 ROD, ADJUSTER 1016271 SCREW, 4x16, UNI5739 1016232 GUIDE, ACTUATOR 1016279 WASHER, D.4x16 1016233 ACTUATOR 1016280...
