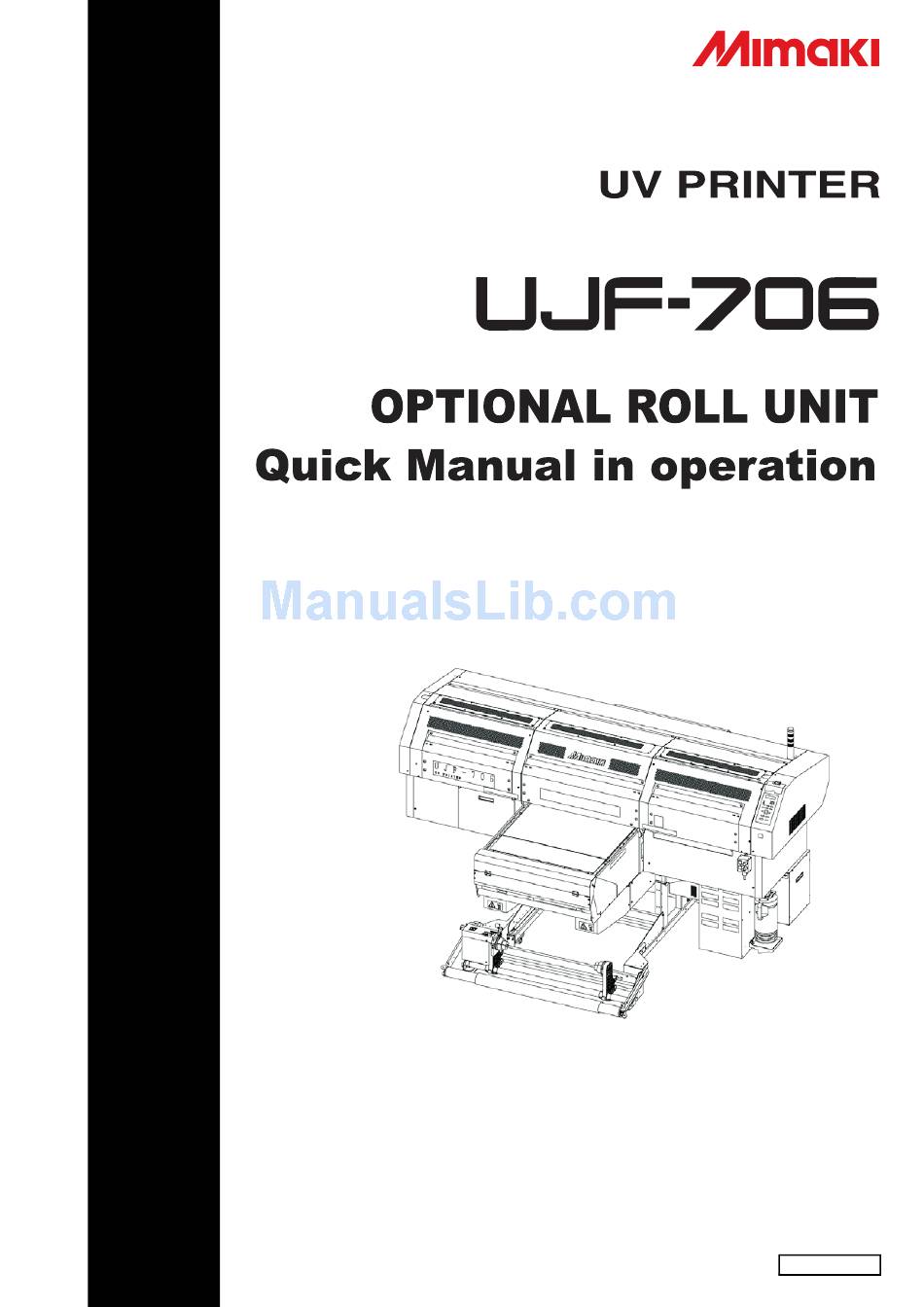

- Page 1 MIMAKI ENGINEERING CO., LTD. URL: http: // www.mimaki. co. jp/ D202168-11...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Foreword ................3 About Media ..........4 Media type ..............4 Media characteristics ...........4 Notes for setting media ..........5 Setting check before printing ....6 Checking the settings of the machine ......6 Checking the printing data ...........8 Check during printing ......... 9 Daily care .......... -
Page 3: Foreword
Congratulations on your purchase of UJF-706 optional roll unit. This manual describes tips for using UJF-706 with the optional roll unit easily and stably. Especially handle 25 m-thick media with care because it is extremely delicate. To use it, please under- stand the characteristics of the media well and use the optional roll unit comfortably. -
Page 4: About Media
About Media Media type Various media can be used on UJF-706 including PP film, PVC, Tarpaulin and FF. For details, see the operation manual of UJF-706. This manual explains notes for thickness and elastic force of media. Thickness (The machine specification is 25 μm to 1 mm) To use thin media of 50 m thick or less, take a stretched one (OPP). -
Page 5: Notes For Setting Media
You can print on the media shown as the figure, however, you may have to widen the head gap (The image becomes blurred) or the media may cockle during printing. You should not use such a media, which is unfit for UJF-706. Check the media to be used, and use them depending on the conditions. -
Page 6: Setting Check Before Printing
Setting check before printing Checking the settings of the machine Check the followings before printing. Checking them allows to print effectively and smoothly. For setting of the media, see “CHAPTER 2 How to Use” on the operation manual of the optional roll unit. Check Flow Check the table. - Page 7 “LOW”. (Operation Manual of the optional roll unit P.2-16) Check the setting of the mist fan. Set the strength of the mist fan. (UJF-706 Operation Manual “ Setting the strength of mist fan ” ) Set the head gap. 1.2 mm is recommended, however, adjust the set- ting depending on the edge surface condition of the media.
-
Page 8: Checking The Printing Data
Setting check before printing Checking the printing data Location and size of the printing data In the effective printing area of 700 mm wide x 600 mm long, locate data in the center of the media as much as possible. For thin media, get a non-printing area around the data (20 to 30 mm or more is preferable) to avoid turning and cockling of the edge surface of media (causing media jam) after printing. -
Page 9: Check During Printing
Check the condition until it stably prints continuously for two to three meters. Check point If problems are not solved after checking the followings, contact a distributor in your district or our office. For the nozzle clogging or mist, see the operation manual of UJF-706. Problem The point to be checked The media is not fed straight. -
Page 10: Daily Care
• If it is used with a wide head gap, mist may be collected and piled up at the table suction holes out of the media. If mist has been piled up, scrape off it with a cutter, not to scratch the surface of the table. 2. Daily care of the printer (See the operation manual of UJF-706.) • Head cleaning • Flushing BOX •... -
Page 11: Other Precautions
Other precautions Problems or notes Causes and solutions When the vacuum of the absorbing plate is turned off The machine has nonslip mechanism, however, this problem can during cutting media, the media slips. occur from an imbalance in the tension bars which is caused by the widely different diameter of the media roll on the take-up and feeding side. - Page 12 D202168-11-30092011 Printed in Japan © MIMAKI ENGINEERING CO., LTD.2011 FW : 1.8...
