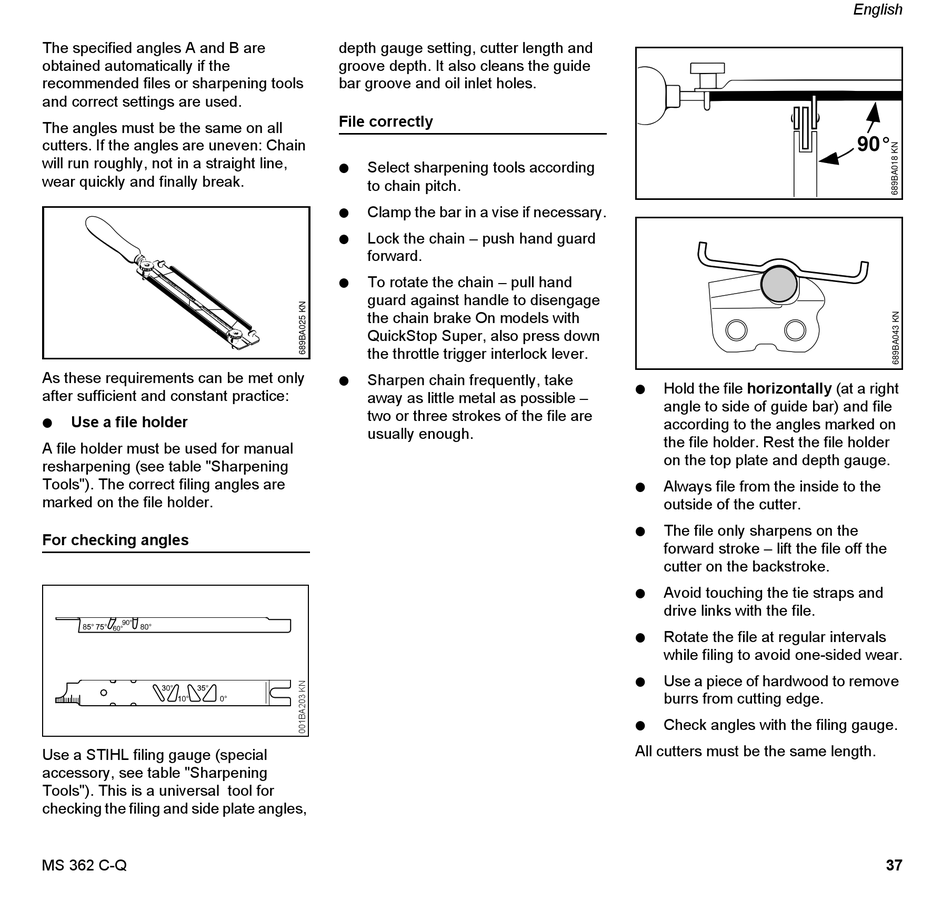

The specified angles A and B are
obtained automatically if the
recommended files or sharpening tools
and correct settings are used.
The angles must be the same on all
cutters. If the angles are uneven: Chain
will run roughly, not in a straight line,
wear quickly and finally break.
As these requirements can be met only
after sufficient and constant practice:
N Use a file holder
A file holder must be used for manual
resharpening (see table "Sharpening
Tools"). The correct filing angles are
marked on the file holder.
For checking angles
Use a STIHL filing gauge (special
accessory, see table "Sharpening
Tools"). This is a universal tool for
checking the filing and side plate angles,
MS 362 C-Q
depth gauge setting, cutter length and
groove depth. It also cleans the guide
bar groove and oil inlet holes.
File correctly
N Select sharpening tools according
to chain pitch.
N
Clamp the bar in a vise if necessary.
N Lock the chain – push hand guard
forward.
N To rotate the chain – pull hand
guard against handle to disengage
the chain brake On models with
QuickStop Super, also press down
the throttle trigger interlock lever.
N Sharpen chain frequently, take
away as little metal as possible –
two or three strokes of the file are
usually enough.
N Hold the file horizontally (at a right
angle to side of guide bar) and file
according to the angles marked on
the file holder. Rest the file holder
on the top plate and depth gauge.
N Always file from the inside to the
outside of the cutter.
N The file only sharpens on the
forward stroke – lift the file off the
cutter on the backstroke.
N Avoid touching the tie straps and
drive links with the file.
N Rotate the file at regular intervals
while filing to avoid one-sided wear.
N Use a piece of hardwood to remove
burrs from cutting edge.
N Check angles with the filing gauge.
All cutters must be the same length.
