Summary of Contents for Vermeiren 101

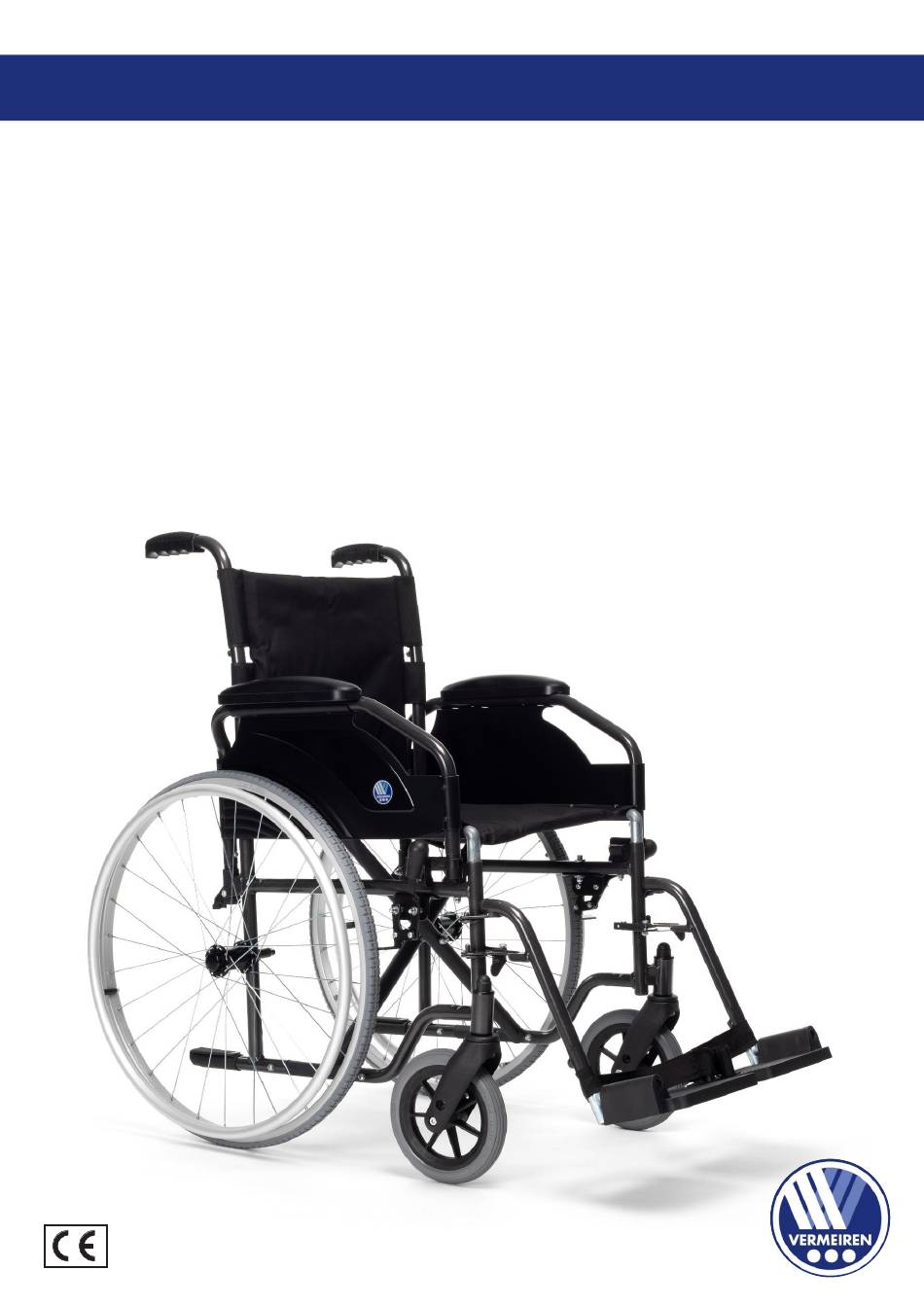

  • Page 1 User manual M A N U E L D ' U T I L I S A T I O N G E B R U I K S A A N W I J Z I N G G E B R A U C H S A N W E I S U N G M A N U A L E D I I S T R U Z I O N I M A N U A L I N S T R U C C I O N E S...
  • Page 3: Table Of Contents

    2023-01 Contents Contents Contents ........................1 Preface........................2 Your product ....................3 Accessories ....................3 Before use ..................... 4 Intended use ....................4 General safety instructions ................4 Symbols on the wheelchair ................4 Transport ....................... 5 Folding - unfolding..................7 (Dis)Assembling rear wheels (optional) ............
  • Page 4: Preface

    Vermeiren. Thanks for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your wheelchair.
  • Page 5: Your Product

    7 = Hand rims 8 = Brakes 9 = Tip cap 10 = Steering wheels (Front wheels) 11 = Seat 12 = Footrests 13 = Identification plate Accessories The following accessories are available for 101:  Armrests (B02, B03)  Quick release (B80)
  • Page 6: Before Use

    Be aware that your wheelchair may interfere with some types of anti-theft systems, depending on the settings used. This may cause the shop's alarm to go off. In case a serious incident has occurred involving your product, notify Vermeiren or your specialist dealer as well as the competent authority in your country.
  • Page 7: Transport

    2023-01 Before use Transport 2.4.1 Transport by vehicle, as luggage Risk of injuries WARNING  Make sure that the wheelchair is attached properly to avoid injury from the passengers during collision or sudden braking.  NEVER use the same seatbelt to secure the wheelchair and passenger. 1.
  • Page 8 2023-01 Before use 7. Mount the front securement straps according to the instructions of the strap-system manufacturer at the indicated place (figure 3). This place is marked on the wheelchair with a symbol (figure 4). 8. Roll back the wheelchair until the front straps are tight. 9.
  • Page 9: Folding - Unfolding

    2023-01 Before use Belt restraints make full contact with Belt restraints must not be held away shoulder, chest and pelvis. from body wheelchair Pelvic belt low on the pelvis near the components such armrests thigh-abdominal junction wheels.  Improper belt-restraint fit Proper belt-restraint fit Folding - unfolding Risk of injuries and/or damage...
  • Page 10: Using Your Wheelchair

    2023-01 Using your wheelchair Using your wheelchair Risk of injuries and/or damage CAUTION Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels or other moving parts, during use or adjustment. Parking brakes Risk of injuries and/or damage CAUTION ...
  • Page 11: Mounting/Removing The Footrests

    2023-01 Using your wheelchair Mounting/Removing the footrests To mount the footrests: 1. Hold the footrest sideways at the outside of the wheelchair frame. 2. Mount the holes (2) of the footrest on the pins (3) located on the frame. 3. Turn the footrest inwards until it clicks in position. If the locking mechanism is a little rigid, gently press the lever back.
  • Page 12: Riding

    2023-01 Using your wheelchair Riding Risk of injuries and damage CAUTION  Before every usage, make sure that: o parking brakes are working properly. o tires are in good condition.  Prevent your fingers from being caught by the wheel spokes. ...
  • Page 13: Installation And Adjustment

    Installation and adjustment Installation and adjustment The instructions in this chapter are for the specialist dealer. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. WARNING  Use only the settings described in this manual.
  • Page 14: Adjusting The Brakes

    2023-01 Installation and adjustment Adjusting the brakes Risk of injury – Brakes may only be adjusted by your specialist dealer. WARNING Adjust the brakes according to the following rules: 1. Install the wheels according to § 2.6. 2. Disconnect the brakes by pulling lever (1) backwards.
  • Page 15: Maintenance

    The service frequency depends on the frequency and intensity of use. Contact your dealer to agree to a common timetable for inspection/maintenance/repair. For the maintenance manual, refer to the Vermeiren website: www.vermeiren.com. Before each use Visually inspect the following points: ...
  • Page 16: End Of Use

    2023-01 Maintenance End of use At end of life, you need to dispose your wheelchair according to the local environmental legislation. The best way to do so, is to disassemble the wheelchair to facilitate the transport of recyclable parts.
  • Page 17: Technical Specifications

    Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged or suffers from severe wear. Table 1: Technical specifications Make Vermeiren Type Manual wheelchair Model Maximum occupant mass...
  • Page 18 2023-01 Technical specifications Tyre pressure, steering wheels Max. 2.5 bar Storage and use temperature + 5 °C + 41 °C Storage and use humidity We reserve the right to introduce technical changes. Measurement tolerance ± 15 mm / 1,5 kg / 1,5°...
  • Page 19 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 20 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: B, 2023-01 Basic UDI: 54151741221061013R All rights reserved, including translation.
