The AKD4344-A is an evaluation board for the AK4344, 24bit and 96kHz DAC with DIT for portable and
home audio systems. The AKD4344-A has the interface with AKM's A/D converter evaluation boards and
the interface with digital audio systems via optical connector. Therefore, it is easy to evaluate the
AK4344.
Ordering guide
AKD4344-A ---
• Compatible with 2 types of input data interface
- Direct interface with AKM's A/D converter evaluation boards via 10-pin header
- On-board AK4112B as DIR, which accepts optical or BNC Inputs
• Optical output for internal DIT
• BNC connector for an external clock input
• BNC connector for DAC output
Digital In
OPT
BNC
MCLK
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM087902>
GENERAL DESCRIPTION
AK4344 Evaluation Board
FUNCTION
DGND
74LVC541
AK4112B
(DIR)
Clock
Divider
Generator
10pin Header
DSP Data

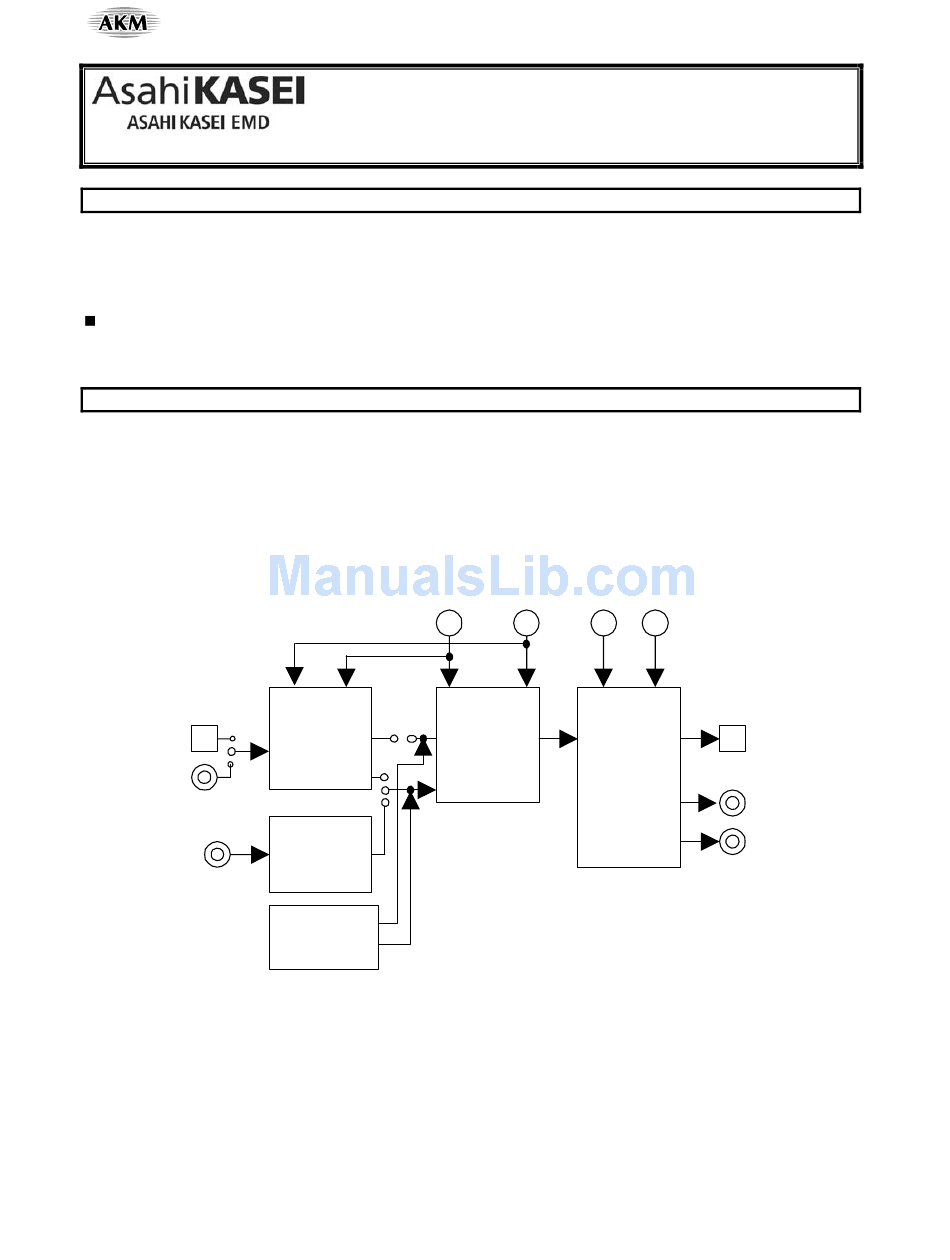

Figure 1. AKD4344-A Block Diagram
AKD4344-A
AK4344 Evaluation Board Rev.2
VCC
VDD AGND
AK4344
- 1 -
[AKD4344-A]
Digital Out
OPT
Analog Out
LOUT
ROUT
2007/07
