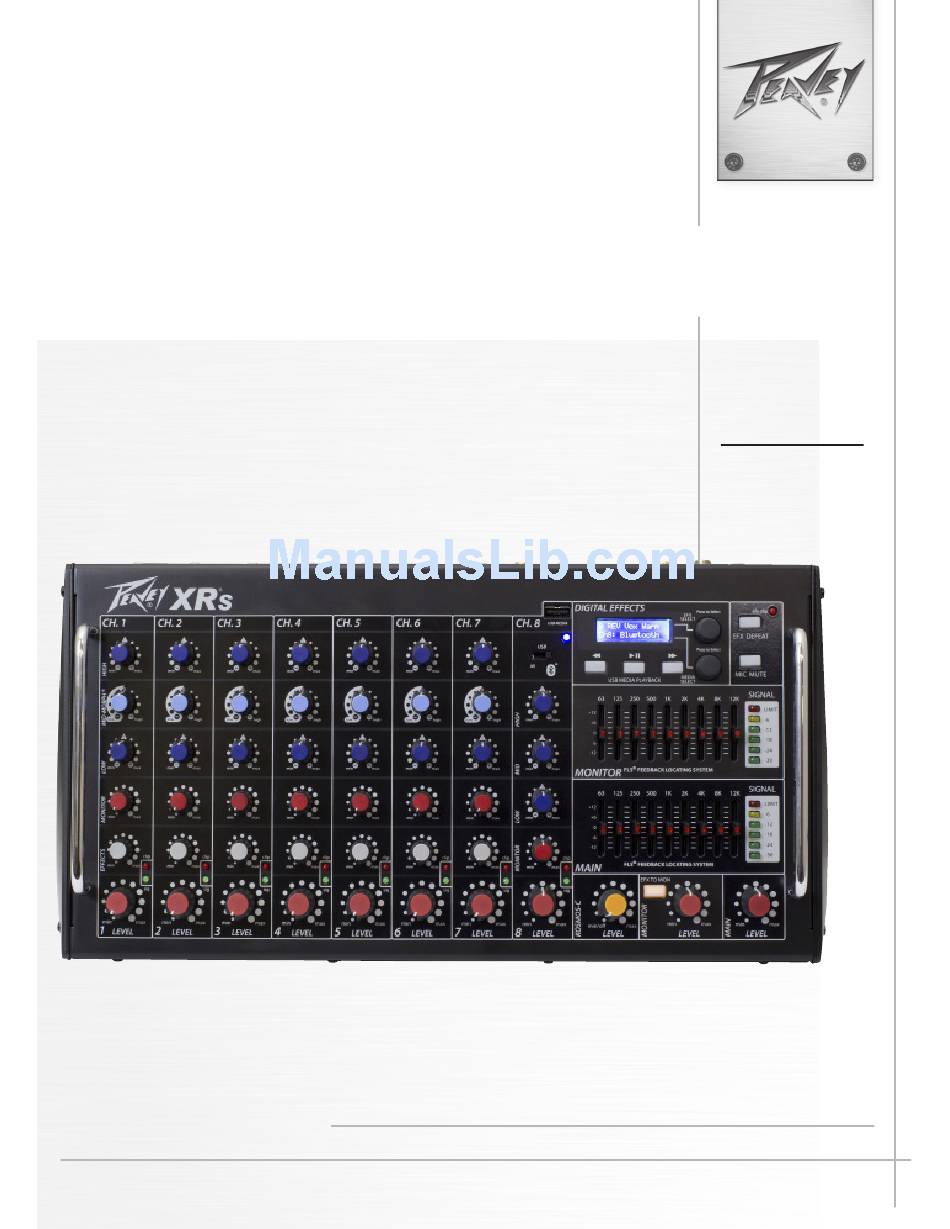

  • Page 1 ® Powered Mixer Operating Manual www.peavey.com...
  • Page 2 (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment.
  • Page 3 Powered Mixer Congratulations on the purchase of your new XR®s powered mixer from Peavey®. The Peavey XRs is a revolutionary all in one powered mixer. Everything a musician or DJ needs providing up to eight combination XLR and ¼” inputs using Peavey’s award winning mic preamps and dual 500 Watt amplifiers for crystal clear audio reproduction.
  • Page 4 Channel Strip for Channels 1-7 MIC/LINE INPUT (CH.1-8) This combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR balanced, low-impedance connection. The tip is positive on the ¼” balanced input, and pin 2 is positive on the XLR PAD (CH.

  • Page 5: Media Input

    Media Input 3.5mm MONITOR OUT SUB OUT MONO TRS BAL TRS BAL ACTIVE POWER AMP 2 ASSIGN RECORD OUT XLR-1/4” MEDIA GLOBAL PHANTOM UNBAL MAIN POWER MAIN OUT TRS BAL INPUT SELECT NON-POWERED OUTPUTS ENABLE 18 19 MIC/LINE INPUT This combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR balanced, low-impedance connection. The tip is positive on the ¼”...

  • Page 6: Phantom Power Led

    Media Input GLOBAL PHANTOM POWER This switch, when depressed, applies +48 VDC to all input XLR connectors to power microphones that need phantom power to work. This switch applies +48 VDC voltage to the input XLR connectors to power microphones requiring phantom power. If phantom power is used, do not connect unbalanced dynamic microphones or other devices to the XLR inputs that cannot handle this Voltage.
  • Page 7 Place your phone or music device in Bluetooth search mode. The phone or music device will begin searching for the XRs. Select “Peavey Mixer” from the search results on your phone or music device. min/o You will be prompted to enter a pin number. Enter the pin#, it is 7878.
  • Page 8 Channel Strip for Channel 8 XLR/USB/BLUETOOTH SWITCH (CH. 8) This switch allows the user to select the input signal being sent to channel 8. It can select between the Mic-Line preamp (XLR), the USB A con- nector or a wireless Bluetooth connection from an external device (phone, ipod or tablet). HIGH EQ This High EQ shelving type of active tone control varies the treble frequencies (+/- 15 dB at 12kHz) and is designed to remove noise or add brilliance to the signal, depending on the quality of the source.
  • Page 9 Front Panel DIGITAL EFFECTS efx clip Press to Select SELECT CH. 6 CH. 7 CH. 8 USB MEDIA DEFEAT Press to Select MUTE MEDIA USB MEDIA PLAYBACK SELECT SIGNAL LIMIT high high DIGITAL EFFECTS LCD DISPLAY The top row of this LCD displays the currently selected Effect and the bottom row displays the status of the media inputs of channel 8. If chan- nel 8 is in “USB”...

  • Page 10: Monitor Level

    These LEDs indicate the signal level of the main mix and the monitor mix. The top LED indicates LIMIT and activation of our revolutionary DDT speaker protection circuit. Peavey’s award winning speaker protection is built into the XRs powered mixer and is activated automatically to maximize the power amplifier without fear of distortion.

  • Page 11: Back Panel

    This is the main safety fuse for the AC line voltage. Only replace with a fuse of the exact type and rating. If the fuse continues to open, do not over fuse. Take the unit to an authorized Peavey service center.
  • Page 12 Mics are muted, either by the footswitch or the front panel switch (39), the MIC MUTE switch will glow red. A single button footswitch (Peavey part # 03050680) can be used, but it will only work on the "Effects Defeat". In this case, the "Mic Mute"...
  • Page 13 Effects (parameter) PLATE (TIME) DESCRIPTION PREDELAY ROOM ROOM SIZE FRONT END HP BACK END LP MORE DESCRIPTIVE DAMP FACTOR NAME Bright 35 ms Gentle LP 48 ms Med LP 62 ms Hard LP 78 ms Dark 95 ms HALL (TIME) Vox Fox 35 ms Subtle...

  • Page 14: Block Diagram

    Block Diagram 14 14...

  • Page 15: Specifications

    <0.5% @ amp 1 @ 400 Watts into 4 Ohms Features and specifications subject to change without notice. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • EX000139 • ©2011...
  • Page 16 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
