3. Put the battery charge cable into the tiller (turn away the round cover) (picture 42).
4. When the battery charger is turned on the scooter will be charged. During charge the progress
indicator will blink. A RED light means the charger is in use, a WHITE light means the scooter is being
charged and a GREEN light means the scooter is fully charged.
The Navigator can not be driven electrically with a plug in the charge socket. If the range of the
Navigator is strongly decreasing, the batteries need replacement. In this case you need to contact your
dealer. It is not allowed to replace the batteries yourself. When a battery is leaking contact dealer
immediately! Please consider the following when changing batteries: see that the connectors do not
contact with each other. Make sure when connecting the batteries the connectors are correctly poled
(++ and --). The Navigator comes with a battery charger. If any problems occur please contact your
dealer. It is not allowed to open the charger. The charge socket is indicated with a symbol on the tiller
(picture 42a). The charger connection is indicated on the charger with a symbol (picture 42b):

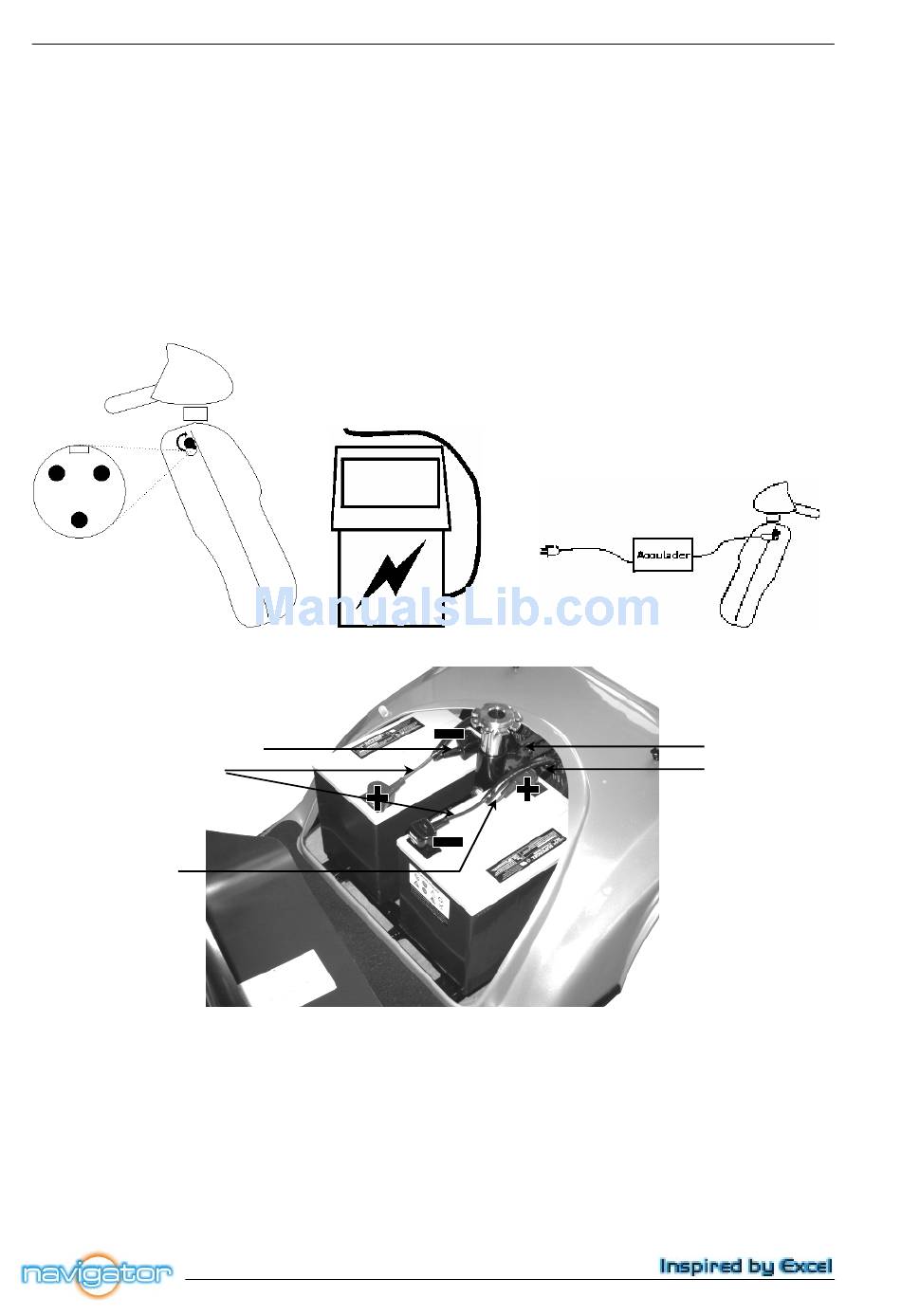

Picture 42

Yellow
Red
Battery charger specifications:
appropriate for the fitted batteries
•
maximum nominal charge current: 24 Volt
•
maximum nominal charge power: 6 Ampère
•
suitable for unguarded use
•
Picture 42a
Black
Picture 42c
Excel Navigator
Picture 42b
Battery connectors
