Armrest adjustment
The armrests can be fully flipped up (picture 39). Also the angle and the armrest height are adjustable.
The armrests are fully flipped up by moving them up. The armrest angle is adjustable by the bolt on the
inner side of the armrest. You can turn this bolt further out by hand (the arm rest angle will go down) or
further in (the arm rest angle will go up). On the rear side of the arm rest tube is a turning knob. Turn it
loose and adjust the arm rest to the desired height. Fasten the knob securely.
Adjust head rest (option)
The head rest is adjustable in three height positions.
Removing the Navigator chair
Unlock the turning system of the chair as shown on the picture below (picture 40). You can pull the chair
straight up and eventually move it around a little. Flipping back the armrests and folding down the
backrest eases the removal.
The chair of the Navigator weights around 16 kg. Please remember this when removing the chair. The
chair can be lifted by putting your one arm around the backrest and grip firmly and the other arm
under the seat. Folding the armrests and the backrest can ease the lifting.

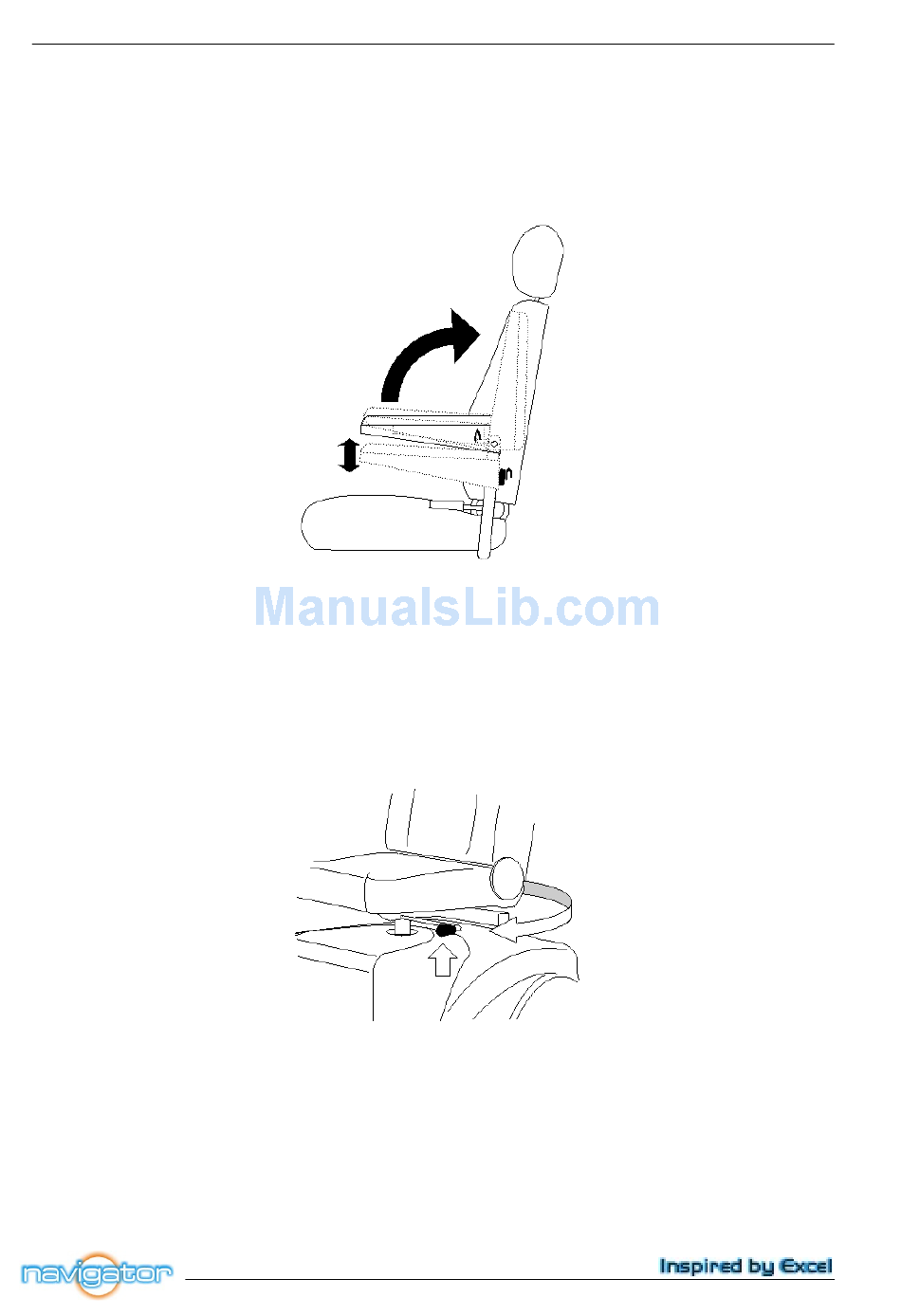

Picture 39
