Summary of Contents for Excel Entice

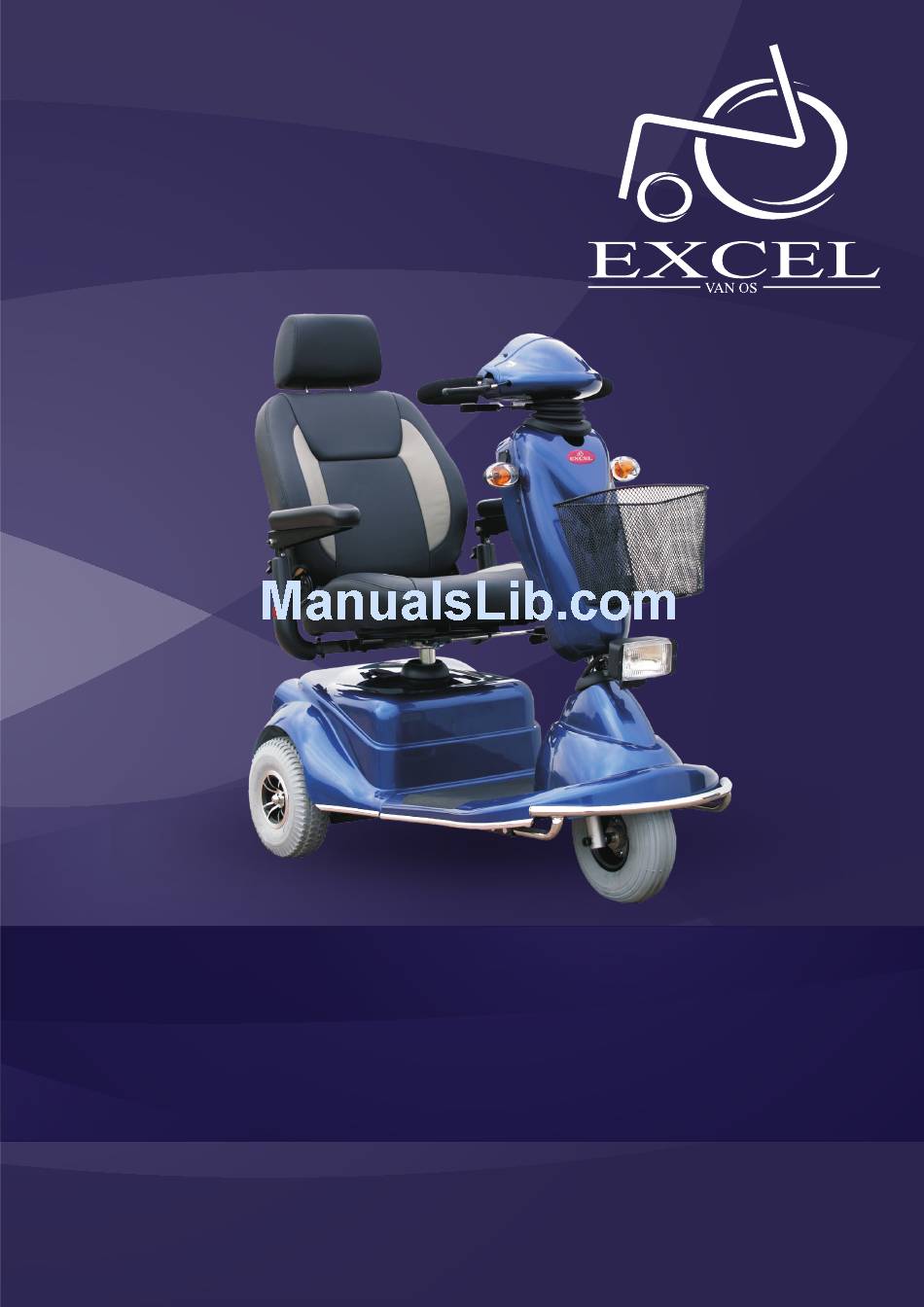

- Page 1 XCEL EXCEL EXCEL EXCEL EXCEL EXCEL EXCEL User Manual Excel Entice...
-
Page 2: Table Of Contents
Overall user manual USER MANUAL INTRODUCTION .................................. 2 1.1 I ............................... 2 MPORTANT SYMBOLS IN THIS MANUAL 1.2 U ..................................2 SE OF THE SCOOTER GENERAL SAFETY NOTES ..............................2 2.1 G .................................. 2 ENERAL SAFETY NOTES 2.2 S ........................ 3 AFETY NFORMATION ON LECTROMAGNETIC... -
Page 3: Introduction

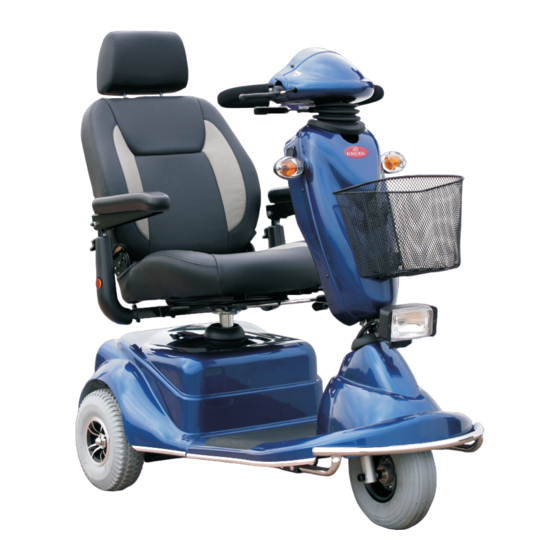

The intended use of the Excel Entice is for people of all ages, who have trouble with walking far distances or walking for a longer time. The Entice is an outdoor use scooter. The seat can be adjusted by the user. The seat height can also be adjusted to lower leg length. -
Page 4: Safety Information On Electromagnetic Interference
For these reasons we ask you to please observe the following precautions: To use the Entice close to electromagnetic fields we advise you to switch of the power system. Devices who send electromagnetic fields are telephones, a cellular Phone. Also, the electronics used in our vehicles can generate a low level of electromagnetic interference, which however will remain within the tolerance permitted by law. -
Page 5: The Most Important Parts
The battery charge is sufficient for the distance intended to be covered. The seatbelt is in perfect order. 4.2 Taking Obstacles Your Entice can overcome obstacles and kerbs of up to 8 cm. Warning: Never approach obstacles at an angle! Put your backrest into an upright position before climbing an obstacle ©... -
Page 6: Driving Up And Down Gradients
Incorrect 4.3 Driving up and down gradients The Entice can safely climb the following gradients: 4-Wheel Version (up to 136 kg payload):12° 3-Wheel Version (up to 120 kg payload):12° 3-Wheel Version (up to 136 kg payload):10°... -
Page 7: Disengaging Motors
Overall user manual 5.1 Disengaging motors Warning Danger of the vehicle running away! When the motors are disengaged (for push operation), the electromagnetic motor brakes are deactivated! When the vehicle is parked, the levers for engaging and disengaging the motors must without fail be locked firmly into the "DRIVE"... -
Page 8: Driving The Scooter
Gently pull the right driving lever towards you to drive forwards. Gently pull the left driving lever towards you to drive backwards. Note: The controller is programmed with standard values ex-works. Your Excel® Dealer can program it to fit your requirements. Note: To brake quickly, simply let go of the driving lever. - Page 9 The controller has detected a short-circuited motor. Check the cable harness for short and check the motor: Contact your authorised Excel® Dealer. Check that the declutching lever is in the engaged position. Brake Fault Drive inhibited The park brake coil or wiring is faulty.
-
Page 10: Adjustment Options
7.1 The Entice chair The chair of the Entice is equipped with a number of adjustment possibilities which improves your seat and driving comfort considerably. The entire chair can be height adjusted in a range of 10 cm in 4 steps of 2,5 cm. This adjustment can be done by your dealer. -
Page 11: Adjusting The Width Of The Armrests
Overall user manual 7.3 Adjusting the width of the armrests The knobs to release the armrests are located in the back, under the seat (1). Turn the knobs to release the armrests Adjust the armrests to the desired width Retighten the knobs 7.4 Releasing the seat so that it may rotated and/or removed The seat can be rotated to the side to ease getting on and off of the scooter. -
Page 12: Electrical System
They can be replaced only after removing the battery lid. Note: A defective main fuse may be replaced only after checking the entire electric system. An Excel® specialised dealer must perform the replacement. 8.2 Batteries 8.2.1 What you need to know about batteries... -
Page 13: Charging The Batteries
LED go out / flickers for a few seconds / goes out again Finished The Excel® Entice ‘Universe’ can also be charged using an external charger. The charging socket is on rear edge of the Control Panel (1). Connecting the charger First connect the battery charger to the scooter. -
Page 14: Care And Maintenance
Overall user manual Care and Maintenance Note: Have your vehicle checked once a year by an authorised Excel® dealer in order to maintain it's driving safety. Cleaning the vehicle When cleaning the vehicle, pay attention to the following points: Only use a damp cloth and gentle detergent. -
Page 15: Technical Specifications
Overall user manual 10. Technical specifications 3 Wheel version 4 Wheel version Electrical System Motor Batteries 295 W / 5100 RPM 295 W / 5100 RPM Main battery fuse Standard: 2 x 30 AH Standard: 2 x 30 AH Option: 2 x 40 AH Option: 2 x 40 AH 30 A 30 A... - Page 16 Overall user manual EN 12183 ISO 7176-15 EN 1041 ISO 7176 Product identification Product : Physically propelled wheelchair Brand : Excel Model/type : Entice Version Manufacturer: Name Van Os Medical B.V. Address Koperslagerij 9 Country The Netherlands EU Representative: Name W.
- Page 17 Van Os Medical UK Ltd. Excel House Escrick Business Park Escrick, York YO19 6FD Tel.+44 (0) 1904 720170 Fax. +44 (0) 1904 720398 E-mail: sales@vanosmedical.com www.vanosmedical.com...
