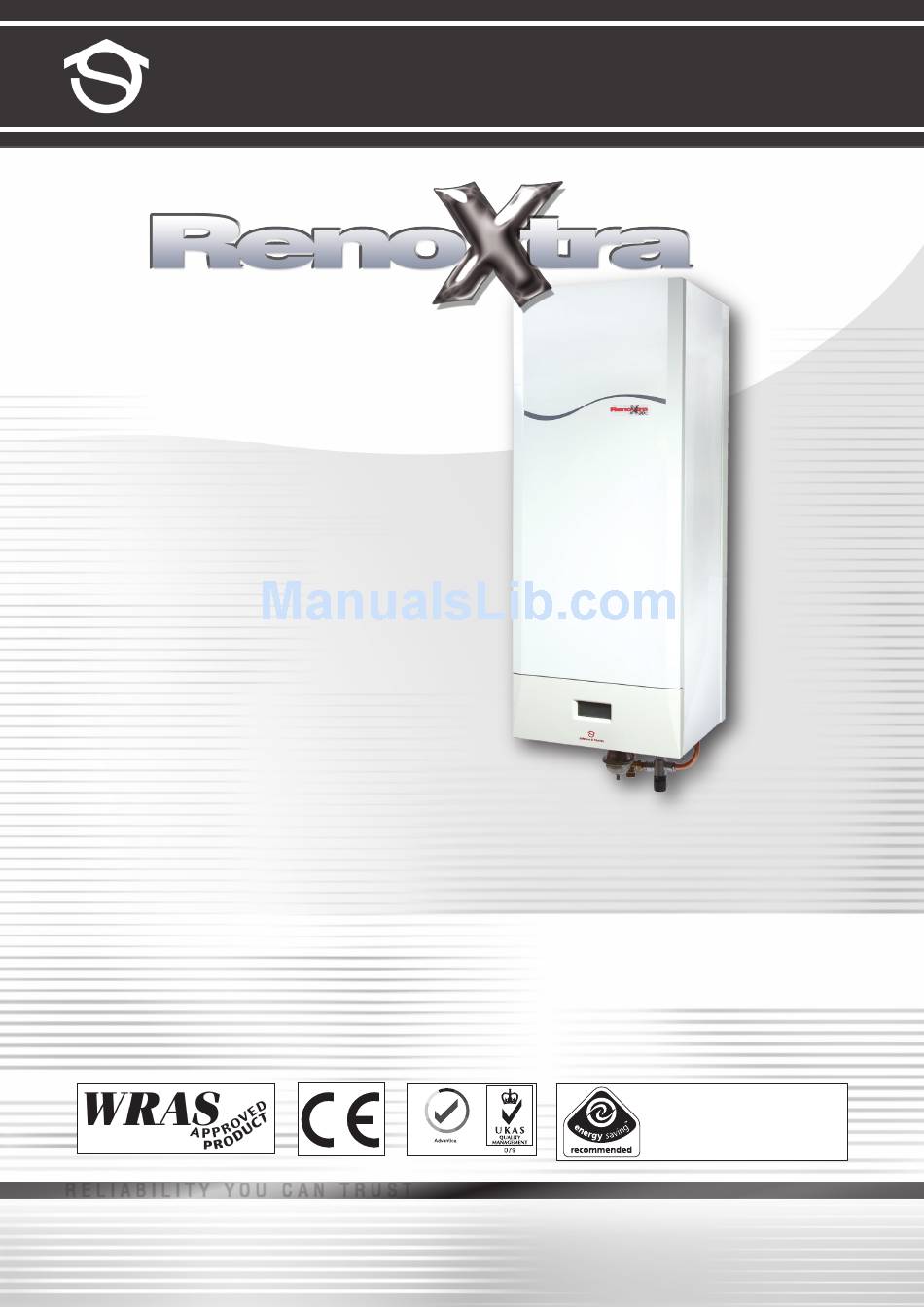

Johnson & Starley
COMBI
SERIES
Xtra High Efficiency
Combination
Boilers
USERS INSTRUCTIONS
Natural Gas G20:
RenoXtra 30C - GC No: 47-416-05
RenoXtra 37C - GC No: 47-416-06
Propane G31 Variant Gas G20:
RenoXtra 30CP - GC No: 47-416-07
RenoXtra 37CP - GC No: 47-416-08
R E L I A B I L I T Y Y O U C A N T R U S T
www.johnsonandstarley.co.uk
BS EN ISO 9001 : 2000
www.energysavingtrust.org.uk
Publication No. ZZ 1312 May 2008
Product Identification No: 87B 074
The Johnson & Starley Reno range has an
energy rating A on a scale of A to G.
For more information see
www.boilers.org.uk
This is a certification mark.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson & Starley RenoXtra 30C
Summary of Contents for Johnson & Starley RenoXtra 30C
- Page 1 Xtra High Efficiency Combination Boilers USERS INSTRUCTIONS Natural Gas G20: RenoXtra 30C - GC No: 47-416-05 RenoXtra 37C - GC No: 47-416-06 Propane G31 Variant Gas G20: RenoXtra 30CP - GC No: 47-416-07 RenoXtra 37CP - GC No: 47-416-08 The Johnson & Starley Reno range has an energy rating A on a scale of A to G.
- Page 2 SYMBOLS ON THE USER PANEL ˚ ˚ Temperature of central heating flow. Domestic hot water pressure. Pre-Heat selected. Summer mode Pump is running. Ignitor is sparking Fan is running. Flame modulation. Anti-Cycle feature is in operation. Opentherm boiler management system is connected. Outside temperature, when an OTC sensor is connected.
- Page 3 INITIAL LIGHTING If turning on the boiler for the first time carry out the following steps: Check that the electrical supply to the boiler is ON at the external isolator. Ensure all hot taps are closed. Set any remote controls as required. Turn the CH and DHW controls to the minimum setting.
- Page 4 FL AME LOSS Should the flame signal be lost 5 times in any 4 minute period then the boiler will lockout and an error code will be displayed in the centre of the display. Pressing the reset will enable the boiler to relight. ER:26 If the fault recurs, turn off the boiler and consult a CORGI registered installer.
- Page 5 15. ERROR CODES For any other error codes that you may encounter on your boiler, please refer to your Installation & Maintenance Instructions or contact your ER:?? local CORGI registered installer. 16. ANALOGUE TIME CONTROL (if fitted) SETTING THE TIME Indicator Arrow Rotate the dial clockwise, by hand, until the indicator arrow is pointing to the current time.
- Page 6 SELECTING AM - PM OR 24 HOUR CLOCK After pressing reset the display may show AM, numbered days will be flashing on and off. If the display does not show AM. It is in 24 hour mode, press and hold the h key and press the +/-1h key once.
- Page 7 EVENT 2 (OFF AT 5.00pm MONDAY THROUGH TO FRIDAY) Press key twice. Off symbol appears Press h key to 05pm Press m key once to 00 Press Day key twice 12345 is displayed Press Programme key to enter EVENT 3 (OFF AT 7.00pm SATURDAY) Press key twice.
- Page 8 Johnson & Starley Johnson & Starley are the leading UK & European manufacturers of a complete range of Domestic Warm Air Heaters. All the heaters suit both Replacement and Upgrade needs and are compliant with the new (2006) amendments to Part L of the Building Regulations. HOME COMFORT SOLUTIONS Company Details Website Address...
