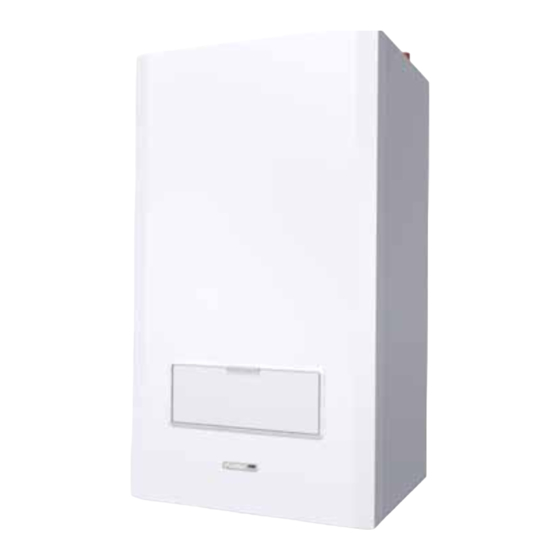

Johnson & Starley Quantec 24RK User Instructions
Quantec regular kompact high efficiency boiler
Hide thumbs
Also See for Quantec 24RK:
Related Manuals for Johnson & Starley Quantec 24RK
Summary of Contents for Johnson & Starley Quantec 24RK

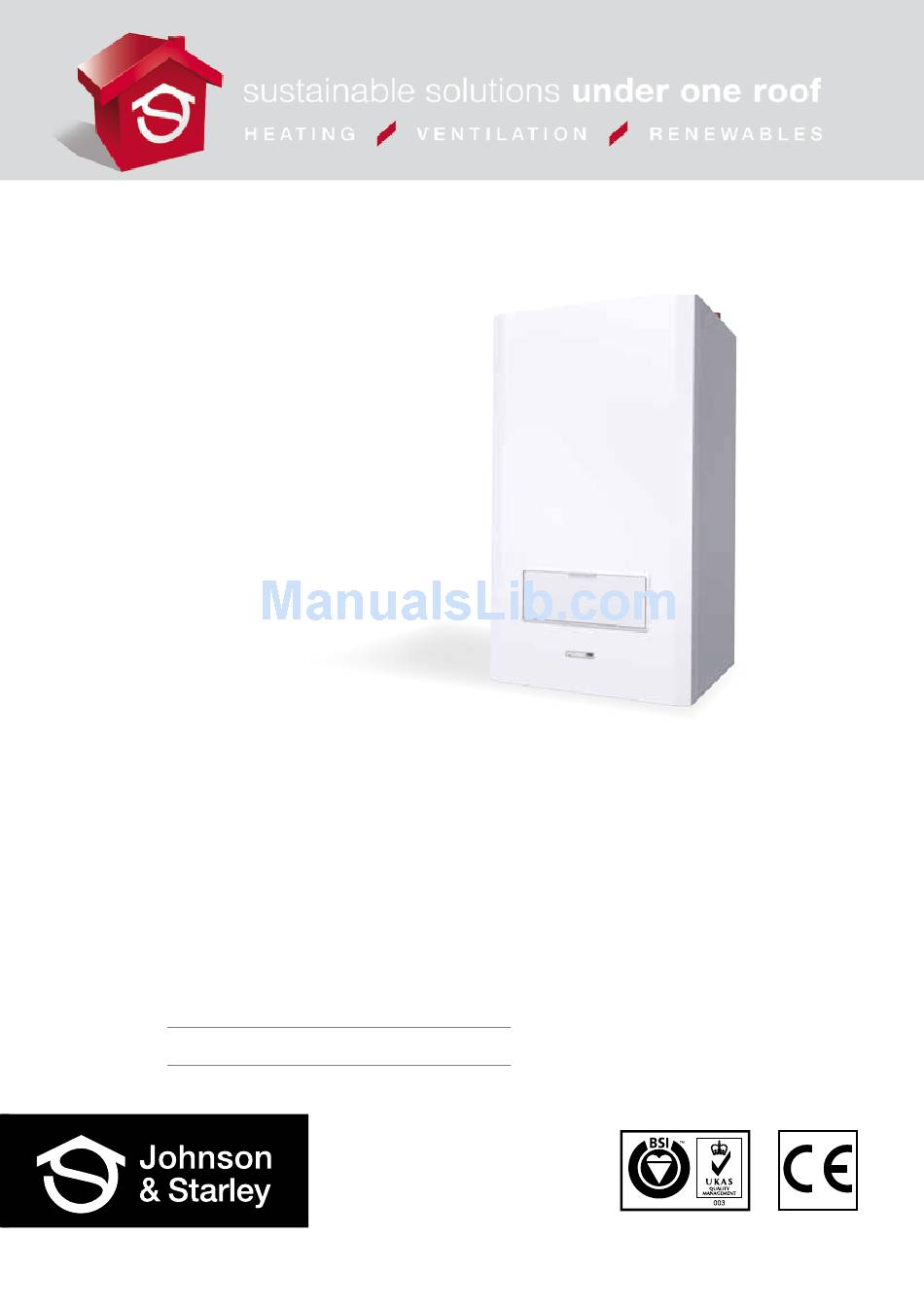

- Page 1 Publication No. ZZ 1464 September 2013 QUANTEC REGULAR Kompact High Efficiency Boiler USER’S INSTRUCTIONS Quantec 16RK G.C. No. 41-416-19 Quantec 24RK G.C. No. 41-416-20 These instructions are to be left with the User www.johnsonandstarley.co.uk...
-
Page 2: Table Of Contents
CONTENTS General information The Boiler Control Panel To Light the Boiler Operarting Functions Reset Procedure Servicing & Mainenance Escape of Gas Cleaning Trouble Shooting NOTE This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: General Information
GENERAL INFORMATION WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES BE INSTALLED BY COMPETENT PERSONS, (i.e. GAS SAFE REGISTERED INSTALLERS. GAS SAFE MEMBERSHIP ENQUIRIES - TEL: 0800 408 5500) IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION). -
Page 4: To Light The Boiler
TO LIGHT THE BOILER If a programmer is fitted refer to seperate instructions for the programming before continuing, Check that the electric supply to the boiler is on. Set the mode control to winter usinf ‘K5’. Set the Heating temperature control to ‘max’ using ‘K1’. FIGURE 3. -
Page 5: Escape Of Gas
TO SHUT DOWN THE BOILER Set the mode to OFF To relight the boiler repeat the procedure detailed in ‘To light the boiler’. FROST PROTECTION If no system frost protection is provided and frost is likely during a short absence from home, leave the heating controls (if fitted) at a reduced temperature setting. -
Page 6: Trouble Shooting
TROUBLE SHOOTING ERROR CODES Check other as appliances work Ingnition lockout Reset boiler Contact installer False flame lockout Contact installer Ensure water in heating system Bleed radiators & check system pressure Overheat lockout Check radiator valves are open Reset boiler Contact installer Fan Fault Contact installer... - Page 7 FAULT CODES Ensure water in heating system Bleed radiators & check system pressure Exhaust gas temperature too high Check radiator valves are open Wait 15 minuets, turn power OFF & ON Contact installer Turn power OFF and ON Remote Reset Lockout Press Reset Contact Boiler Flue Temperature Sensor error...
