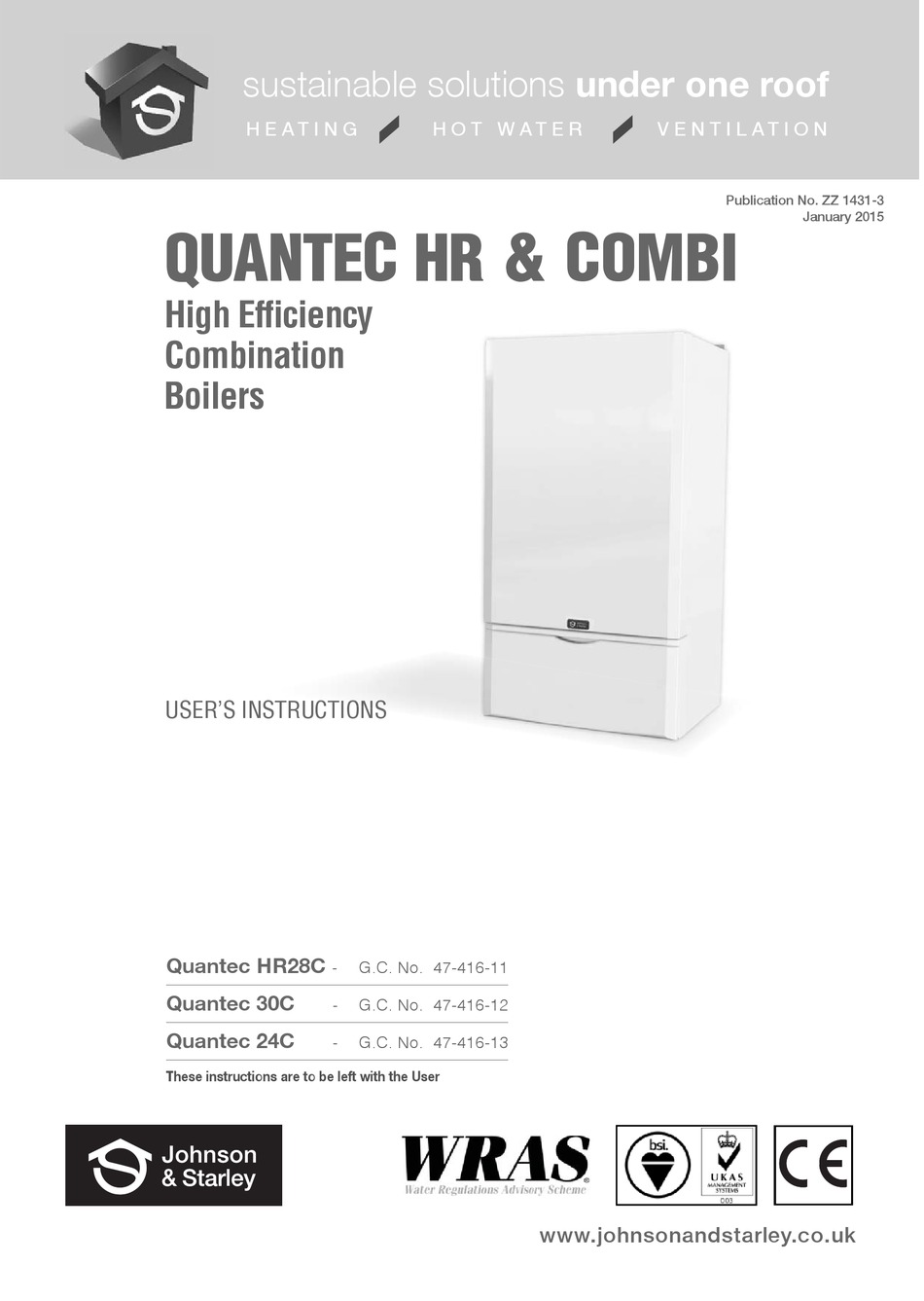

- Page 1 Publication No. ZZ 1431-3 January 2015 QUANTEC HR & COMBI High Efficiency Combination Boilers USER’S INSTRUCTIONS CTIONS Quantec HR28C G.C. No. 47-416-11 Quantec 30C G.C. No. 47-416-12 Quantec 24C G.C. No. 47-416-13 These instructions are to be left with the User www.johnsonandstarley.co.uk...
-
Page 2: Table Of Contents
CONTENTS General information Boiler Control Panel To light the boiler Operating Functions Reset the Boiler Servicing & Maintenance Escape of Gas Cleaning Trouble Shooting NOTE This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: General Information
GENERAL INFORMATION WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES BE INSTALLED BY COMPETENT PERSONS, (i.e. GAS SAFE REGISTERED INSTALLERS. GAS SAFE MEMBERSHIP ENQUIRIES - TEL: 0800 408 5500) IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION). -
Page 4: To Light The Boiler
TO LIGHT THE BOILER Switch the mains power ON and the boiler LED display will show “AP”. This puts the boiler into the Air Purge Mode. See Figure 2. Press the reset button “K4” twice. The boiler will go onto standby. This is the winter mode. -
Page 5: Reset The Boiler
LOSS OF SYSTEM WATER PRESSURE The pressure gauge indicates the central heating system pressure. If the pressure is seen to fall below the original installation pressure of 1-2 bar over a period of time then a water leak may be indicated. In this event conduct the re-pressurising procedure. -
Page 6: Trouble Shooting
TROUBLE SHOOTING ERROR CODES Check other gas appliances work Ignition lockout Reset boiler Contact installer False flame lockout Contact installer Fill system to 1.0bar Bleed radiators Overheat lockout Check radiator valves are open Reset boiler Contact installer Fan fault Contact installer Flame circuit failure Contact installer Valve feed back ERROR... - Page 7 FAULT CODES Fill system to 1.0bar Bleed radiators Exhaust sensor fault Check radiator valves are open Reset boiler Contact installer Turn power on and off Remote reset lockout Press Reset Contact installer Fill system to 1.0bar Bleed radiators Low water pressure Check radiator valves are open Reset boiler Contact installer...
- Page 8 Johnson & Starley Ltd Rhosili Road, Brackmills, Northampton NN4 7LZ sales@johnsonandstarley.co.uk marketing@johnsonandstarley.co.uk Reception 01604 762881 01604 767408 Johnson & Starley Dravo Division Industrial H&V Sales 01604 707022 sales@johnsonandstarley.co.uk www.dravo.co.uk Anniversary 1922 - 2012 In the interest of continuous development Johnson & Starley reserve the right to change specifications without prior notice.
