Installation and planning Instructions For
Since April 2002 only Registered Competent Engineers may install solid fuel fired appliances without involving
the Local Authority Building Control Department. For more details contact HETAS.
Euroheat would suggest only Registered Competent Engineers such as HETAS approved engineers install
Euroheat appliances.
If a competent approved engineer is not employed to install your appliance building control must to contacted
and a building control number is issued.
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2008
IN1198 Edition A
This manual must be used in conjunction with document IN1173.
The Wood and Multifuel Chimney and Installation Guide.
This Manual Must Always be Available to the Stove Operator
Hwam
4410
3320
3310
Part No.
Model Name
Serial Number
1
E & OE
Instructions Part number IN1198 Edition A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HWAM 4410
Summary of Contents for HWAM 4410
- Page 1 IN1198 Edition A Installation and planning Instructions For Hwam 4410 3320 3310 This manual must be used in conjunction with document IN1173. The Wood and Multifuel Chimney and Installation Guide. Since April 2002 only Registered Competent Engineers may install solid fuel fired appliances without involving the Local Authority Building Control Department.
- Page 2 IMPORTANT The installation of this appliance must comply with all local regulations, including those referring to national and European Standards before it can be operated. The stove is not suitable for a shared flue. However, for England and Wales, only, the coming into force on 1st April 2002 of SI 2002 No 440 exempts the householder from this legal requirement for the installation of solid fuel fired appliance whose rated heat output is 50kW or less in a building having no more than 3 storeys (excluding any basement) if a Competent Engineer is employed who is registered under the Registration Scheme for Companies and Engineers involved...

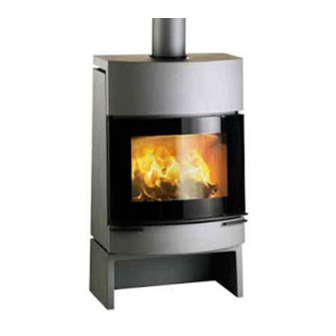

- Page 3 The Hwam 4410, 3320 and 3310 Range Explained Hwam and Euroheat insist on progressive development to produce products which are market leading. Our aims are to have stoves with the latest innovations, user friendly operation and highly efficient for lower cost operation.
- Page 4 Requirement Model Wood Nominal Flow g/s Top Flue Equivalent Name Connection Area as Approved Document J Hwam 109kg 81.6% Net 4410 4410* 125kg 12pa 7.49 6” (152mm) 550mm2 74.6% Gross with plinth Hwam 95kg 81.6% Net 3320 3320* 110 kg 12pa 6”...
-
Page 5: Load Bearing Surface
Before installing the stove, make sure that the surface it will stand on can carry the weight of the stove and any flue connecting pipe. Installation Clearances Diagram Number Description 3310 3320 4410 To inflammable surface at rear To flammable wall at rear 150mm 150mm 150mm... - Page 6 150mm to each side measuring from the closed door of the combustion chamber. The Hwam range of wood and multifuel stoves have been tested and conform to standards DIN18891 and DIN 18891-A1 where the hearth temperature does not exceed 100°C For further information on hearths of either glass, granite or slate visit our web site www.euroheat.co.uk...
-
Page 7: Fireplace Design
Fireplace Design Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of Building Regulations and access to facilitate servicing the stove, providing a setting which will compliment a stove is not a luxury, it is the practicality of making the most of an investment. A good builder or fireplace specialist will be able to transform even the most utilitarian of fireplaces. -
Page 8: Fresh Air System
2) Stove mounted on a plinth: connect the fresh air system either on the lower back of the stove or on the back of the plinth. The HWAM 4410 can be equipped with an optional fresh air system. Further information can be found in the fresh air system’s instruction manual. The following connection options are available: 1) Stove mounted on the wall: connect the fresh air system on the lower back of the stove. - Page 9 Mounting Stove onto a Plinth Note: HWAM 3310 HWAM 3320 and HWAM 4410 must always be mounted on the wall or on a plinth. When mounting your wood-burning stove on the wall or on a plinth, it must be placed a minimum of 100mm above the ground, as measured from the lower edge of the stove.
-
Page 10: Wall Mounting
Wall Mounting The Hwam 4410, 3320 and 3310 can be wall mounted with an optional wall hanging bracket. Full fitting instructions are included with the hanging bracket. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2008 E & OE Instructions Part number IN1198 Edition A... - Page 11 HWAM dealer for assistance. Surface Normally, additional surface treatment will not be required. However, damage to the coating may be repaired with approved Hwam spray paint. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2008 E & OE Instructions Part number IN1198 Edition A...
