Landa ZC3-15321 Operator's Manual

Zc series pressure washer
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
ZC
®
P R E S S U R E WA S H E R S

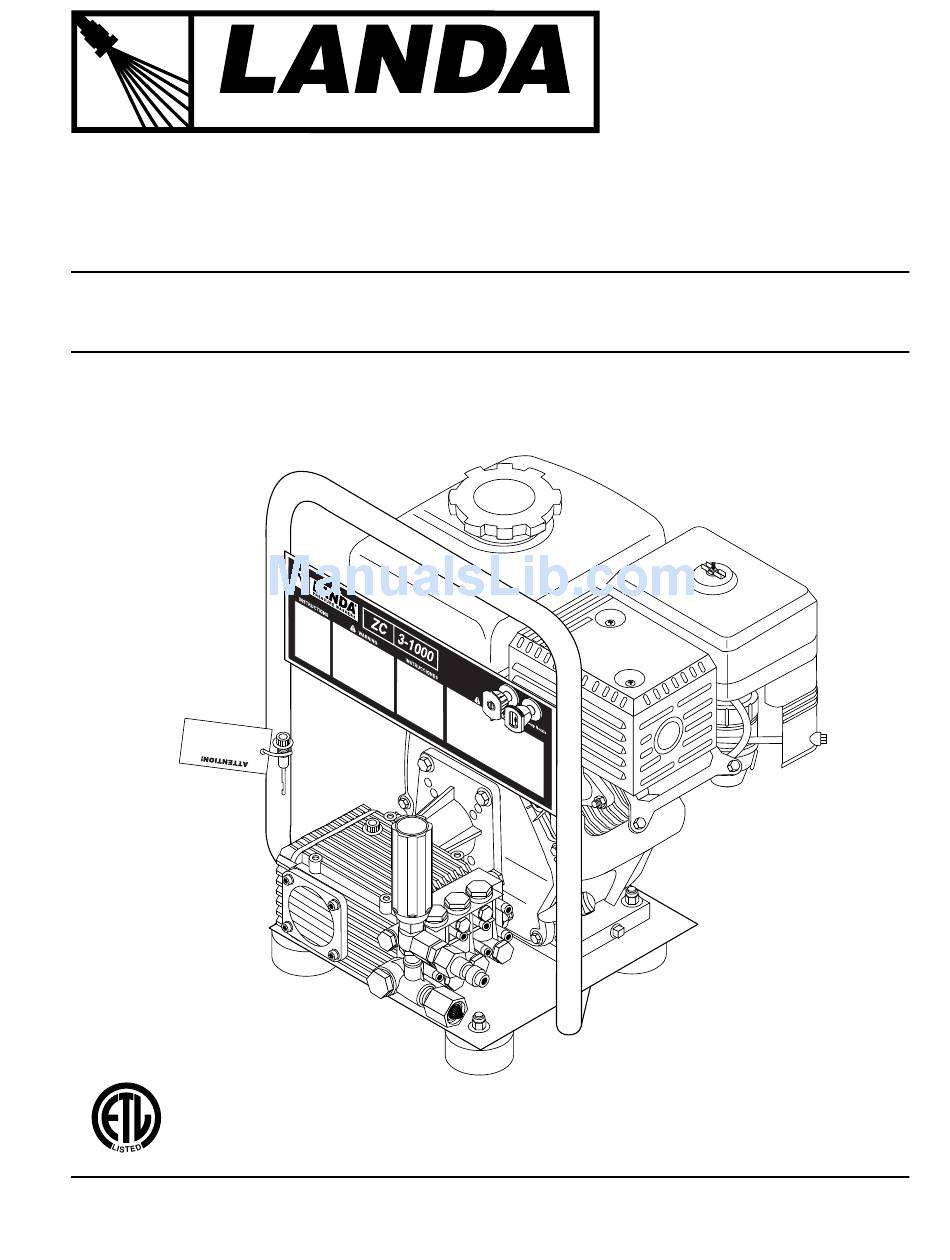

OPERATOR'S MANUAL
I ZC3-15321
®
I
I
I
LANDA, INC.
4275 N.W. Pacific Rim Blvd.
Camas, WA 98607
USA
For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100
or consult our web page at www.landa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZC3-15321 and is the answer not in the manual?

Questions and answers

Related Manuals for Landa ZC3-15321

Summary of Contents for Landa ZC3-15321

  • Page 1 P R E S S U R E WA S H E R S OPERATOR’S MANUAL I ZC3-15321 ® LANDA, INC. 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100 or consult our web page at www.landa.com...

  • Page 2: Table Of Contents

    CONTENTS Introduction ..........................3 Important Safety Information ....................3, 4 Pre-Operation Check ........................4 Set-Up Procedures ........................4 Component Identification ......................5 Operating Instructions ........................ 6 Shut Down Procedures ....................... 6 General Washing Techniques ....................6 How To Use the Detergent Injector ..................... 7 Exploded View ..........................

  • Page 3: Introduction

    5. Avoid installing machines in Landa, Inc. reserves the right to make changes at any small areas or near exhaust time without incurring any obligation. fans. Exhaust contains poison- RISK OF ous carbon monoxide gas;...

  • Page 4: Pre-Operation Check

    13. Landa will not be liable for any changes made to our ❑ Attach swivel connector on discharge hose to spray standard machines, or any components not pur- gun using teflon tape on threads.

  • Page 5: Component Identification

    Spray Gun — Controls the application of water and spray gun. detergent onto cleaning surface with trigger device. In- cludes safety latch. High Pressure Hose — Connect one end to water pump discharge nipple and the other end to spray gun. LANDA ZC • REV. 5/02...

  • Page 6: Operating Instructions

    3 minutes, turn off engine. sure if machine does not start after one pull of starter grip. CAUTION: Small engines may kick back. Do not hold pull starter grip tightly in hand. LANDA ZC • REV. 5/02...

  • Page 7: How To Use The Detergent Injector

    The machine can siphon and mix de- tainer of clear water and follow steps 5 to 7 to pre- MAY BE HARMFUL IF INHALED OR tergents with the use of Landa's de- vent detergent deposits from damaging the injector. INGESTED tergent injector kit.

  • Page 8: Exploded View

    ZC SERIES PRESSURE WASHER OPERATOR’S MANUAL ZC3-15321 EXPLODED VIEW LANDA ZC • REV. 5/02...

  • Page 9: Parts List, Exploded View

    Unloader, General TT Direct Yellow 5-2301 Pump, TT2035 4-16540 Nozzle Compl. QCEM-6540 90-2001 Nut, 5/16", ESNA, NC Black 90-4001 Washer, 5/16", Flat, SAE 2-0103 Grommet, Rubber Nozzle Holder 90-2002 Nut, 3/8", ESNA, NC L Not Shown LANDA ZC • REV. 5/02...

  • Page 10: Hose & Spray Gun Assembly

    Series 2000 4-12805015 Nozzle, SAQC MEG 1505, Yellow 4-0110531 Wand, 15.5" Half with Coupler, 2-1014 Coupling, 1/4" Hex Nozzle Side L Not Shown 4-0110532 Wand, 15.5" Half w/Spray Gun Side 4-16540 Brass Soap Nozzle (Black) LANDA ZC • REV. 5/02...

  • Page 11: Downstream Injector Assembly

    ZC SERIES PRESSURE WASHER OPERATOR’S MANUAL DOWNSTREAM INJECTOR ASSEMBLY ITEM PART NO. DESCRIPTION 3-1202 Injector, Det, Non Adjust, #2 2-9000 Clamp, Screw, #4 4-02080000 Tube, 1/4" x 1/2", Clear Vinyl /ft. 2-1904 Strainer, 1/4", Hose Barb LANDA ZC • REV. 5/02...

  • Page 12: Troubleshooting

    Broken or weak inlet or discharge Check and replace if necessary. valve springs Foreign matter in valves Check and clean if necessary. Worn bearings Check and replace if necessary. Excessive temperature or liquid Reduce to below 75 C (180 LANDA ZC • REV. 5/02...
  • Page 13 Spray gun closed with machine Open spray gun or turn off machine. WATER LEAKING FROM PUMP running 5 minutes or longer PROTECTOR Excessive water supply pressure Place a pressure regulator at end of 50' garden hose. LANDA ZC • REV. 5/02...

  • Page 14: Maintenance

    Attention to regular preventative mainte- nance procedures will assist in preserving the performance of your equipment. Contact your Landa dealer for main- tenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform mainte- nance more often under severe conditions.

  • Page 15: Warranty

    PURPOSE. LANDA does not authorize any other party, including authorized LANDA Dealers, to make any representation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes.

  • Page 16: Spanish Translations

    USARLA provocar la muerte, lesiones Landa, Inc. se reserva el derecho a realizar cambios en graves y/o daño a la propiedad. cualquier momento sin por ello contraer obligación alguna. 2. Las instalaciones deben cumplir con los códigos lo- cales.
  • Page 17 Jardín 10. El mejor seguro contra accidentes es la precaución y el conocimiento de la unidad. 11. Landa no será responsable de cambio alguno Filtro realizado a nuestras unidades estándar o de ningún componente que no haya sido adquirido de Landa.
  • Page 18 ❑ Llene el tanque con gasolina y controle el aceite del motor. Tapa del Tanque / Varilla de Medición Límite Superior Límite Inferior ❑ Nota: El motor se puede dañar si se lo deja funcionar con el nivel de aceite bajo. LANDA ZC • REV. 5/02...
  • Page 19 (no se incluye) Aceite Manguera de Suministro de Agua (no se incluye) Acoplador de Manguera de Conexión Alta Presión Rápida Boquilla de Presión Varilla Boquilla de Cobre Pistola de Para Detergente Gatillo Rociado Conexión Giratoria LANDA ZC • REV. 5/02...
  • Page 20 Deje que el cable de cambie la boquilla. Compruebe que la boquilla esté arranque vuelva bien colocada y segura. Arranque el motor Cable de suavemente nuevamente. Arranque posición normal. LANDA ZC • REV. 5/02...
  • Page 21 5 y 10 minutos sobre la superficie. Enjuague de arriba hacia abajo. NOTA: Si la unidad de lavado a presión está funcionando y no se la utiliza en 3 minutos, apague el motor. LANDA ZC • REV. 5/02...
  • Page 22 Inyector de Productos Detergentes Acoplador de Conexión Rápida Entrada de Agua Tubo Para Succionar los Productos Detergentes Acoplador de Conexión Rápida Manguera Boquilla de Presión de Alta Presión Varilla Boquilla Para Pistola de Detergente Gatillo Rociado LANDA ZC • REV. 5/02...
  • Page 23 Déjelo en esa posición. Esto cierra tanto la válvula de entrada como la de salida y evita que el interior del cilindro se ox- ide. LANDA ZC • REV. 5/02...
  • Page 24 A pesar de no ser necesario para el servicio de garantía, le solicitamos que registre su unidad para el lavado a presión. Para ello, llene la tarjeta de registro y envíela a vuelta de correo. Para obtener el servicio de LANDA de la garantía, debe hacer llegar el producto a un Distribuidor de LANDA autorizado, con flete prepago, acompañado del comprobante de la compra, dentro del...
  • Page 26 ® WATER CLEANING SYSTEMS 4275 NW Pacific Rim Blvd. • Camas, WA 98607 USA Form #96-6051 • Revised 5/02 • Printed in U.S.A. by Landa, Inc., Camas, WA 98607...
