OPERATOR'S MANUAL
I
I
I
SEA3-1100
SEA4-2000
SEA4-3000
®
I
I
I
LANDA, INC.
4275 N.W. Pacific Rim Blvd.
Camas, WA 98607
USA
For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100
or consult our web page at www.landa-inc.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Landa SEA3-1100
Summary of Contents for Landa SEA3-1100

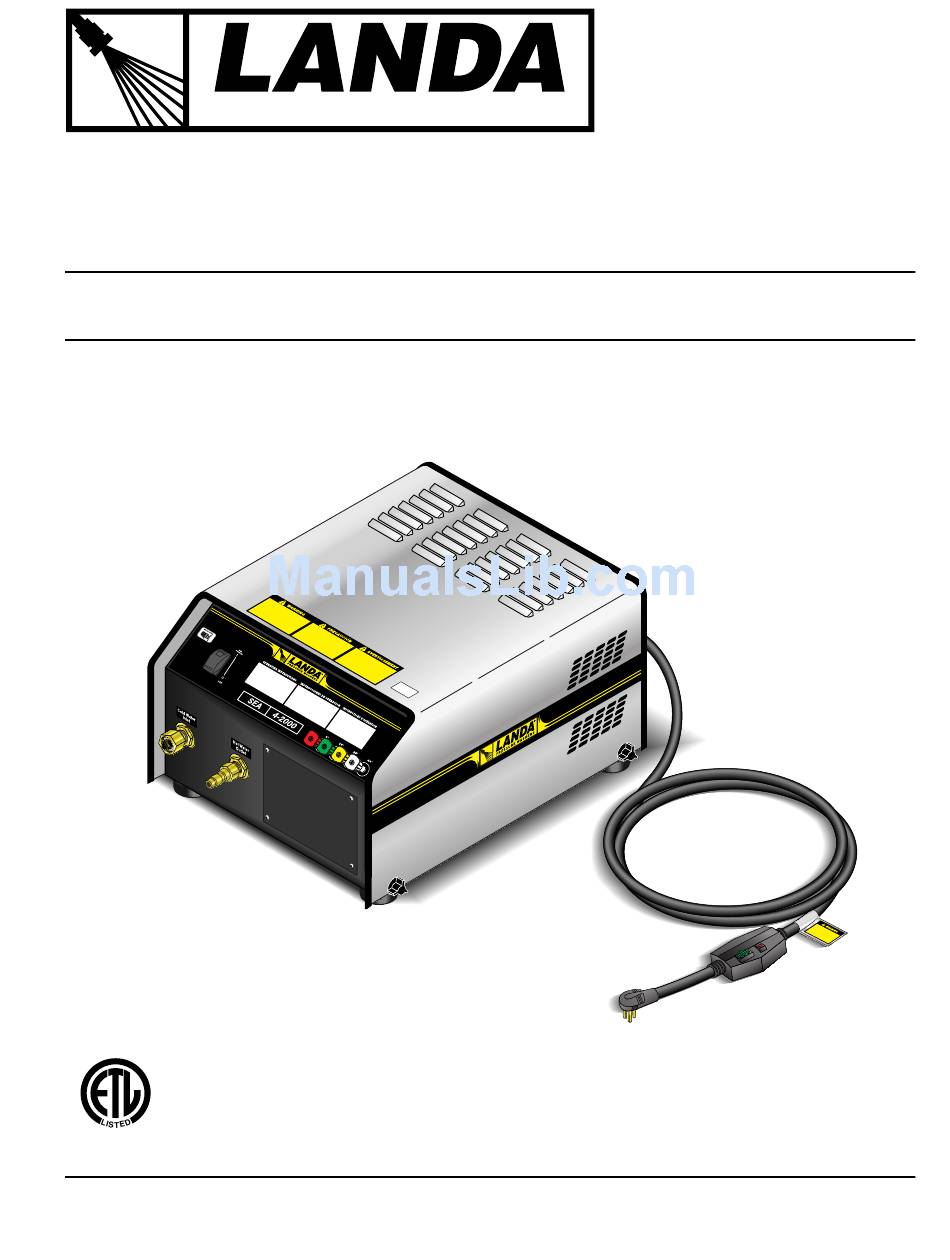

- Page 1 P R E S S U R E WA S H E R S OPERATOR’S MANUAL SEA3-1100 SEA4-2000 SEA4-3000 ® LANDA, INC. 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100 or consult our web page at www.landa-inc.com...
-
Page 2: Table Of Contents
CONTENTS Introduction ...........................3 Important Safety Information ..................... 3, 4 Component Identification ......................4 Pre-Operation Check ........................5 Set-Up Procedures ........................5 Operating Instructions ........................5 Shut Down Procedures .........................5 How To Use the Detergent Injector ....................6 General Washing Techniques ......................7 Maintenance ..........................7 Time Delay Operation ........................7 Exploded View, Left Side.......................8 Exploded View, Right Side ......................9... -
Page 3: Introduction
WARNING: Risk of explosion — Landa, Inc. reserves the right to make changes at any do not spray flammable liquids. RISK OF EXPLOSION: time without incurring any obligation. -
Page 4: Component Identification
OPERATOR’S MANUAL 11. When the machine is working, do not cover or place 17. LANDA will not be liable for any changes made to in a closed space where ventilation is insufficient. our standard machines or any components not pur- chased from LANDA . -
Page 5: Pre-Operation Check
READ SAFETY, of proper voltage and amper- INSTALLATION, & age reading. Then push GFCI PREVENTATIVE MAINTENANCE reset button at end of power INSTRUCTIONS. cord if required (SEA3-11021D, SEA4-20021A). LANDA SEA • Rev. 4/02... -
Page 6: How To Use The Detergent Injector
This machine can siphon and mix able pressure control handle clockwise. MAY BE HARMFUL IF INHALED OR detergents with the use of Landa's NOTE: The detergent injector will not siphon with wa- INGESTED detergent injector kit. ter flowing through the high pressure nozzle at end 1. -
Page 7: General Washing Techniques
Use only Landa SAE 30 weight non-detergent oil; change or replaced. If low pressure is still present, the pump oil after first 50 hours of use. Thereafter, change oil at needs repairing. -
Page 8: Exploded View, Left Side
SEA SERIES PRESSURE WASHER OPERATOR’S MANUAL EXPLODED VIEW LEFT SIDE • ALL MODELS 6, 7 LANDA SEA • Rev. 4/02... -
Page 9: Exploded View, Right Side
SEA SERIES PRESSURE WASHER OPERATOR’S MANUAL EXPLODED VIEW RIGHT SIDE • ALL MODELS LANDA SEA • Rev. 4/02... -
Page 10: Exploded View Parts List
Bracket, Support for Elec. Box 1 2-1032 Tee, 1/2" Female, Pipe 6-05152 Strain Relief, STRT, Small 2-1006 Nipple, 1/2" Close 6-051595 Strain Relief, STRT, Large 2-11080 Push-on, 3/4" x 1/2" Male 2-0053 Nipple, 1/2" JIC, 3/8" Pipe LANDA SEA • Rev. 4/02... - Page 11 Bushing, H X 24mm 2-11041 Connector, 1/2" Anchor 5-40102558 Pulley, Bore, AK25 X 5/8" 2-11039 Connector, 3/8" Anchor (3-1100) 2-10942 Swivel, 1/2" MP x 3/4" GHP 5-40205101 Pulley, 2AK51H (4-2000) w/Strainer 5-40504501 Pulley, 2BK45H (4-3000) LANDA SEA • Rev. 4/02...
-
Page 12: Exploded View Parts List
Bumper Pad, Engine 2-0104 Pad, Hand Rubber 90-401250 Washer, 3/8" x 1", SS 90-10181 Bolt, 3/8" x 1-1/2", HH NC, SS 4 10-08018 Label, GFCI, Warning (3-1100D,K, 4-2000A,K, 4-2000G) 10-08021 Label, Electrical Disconnect Warning L Not Shown LANDA SEA • Rev. 4/02... -
Page 13: Hose, Spray Gun, Wand & Nozzle
Soap Nozzle Only, 1/8", Brass 1 3-12021 Injector, Detergent, Non Adjust, #3 Nozzle See Page 11 for Correct Nozzle1 4-02080000 Tube, 1/4" x 1/2", 4-02043450C Hose, 3/8" x 50' Tuff Skin, Clear Vinyl /ft. w/Coupler L Not Shown LANDA SEA • Rev. 4/02... -
Page 14: Troubleshooting
Broken or weak suction or delivery Check and replace if necessary. valve spring Foreign matter in valves Check and clean if necessary. Worn bearings Check and replace if necessary. Excessive temperature of water Reduce to below 140 LANDA SEA • Rev. 4/02... -
Page 15: Troubleshooting
Replace coil after the timer and unloader switch have been tested. MACHINE WILL NOT Timer is defective Join wires 15 and 16 together on timer. If TURN ON WHEN works, replace timer. SWITCH IS PUSHED LANDA SEA • Rev. 4/02... -
Page 16: Preventative Maintenance
Attention to regular preventative main- tenance procedures will assist in preserving the performance of your equipment. Contact your Landa, Inc. dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions. -
Page 17: Warranty
TICULAR PURPOSE. LANDA does not authorize any other party, including authorized LANDA Dealers, to make any represen- tation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes. - Page 18 ® WATER CLEANING SYSTEMS 4275 NW Pacific Rim Blvd. • Camas, WA 98607 USA Form #96-6042 • Revised 4/02 • Printed in U.S.A. by Landa, Inc., Camas, WA 98607...
