All in One Product

Setup Guide

4010626
XXX-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SylusScan 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Epson SylusScan 2000

Summary of Contents for Epson SylusScan 2000

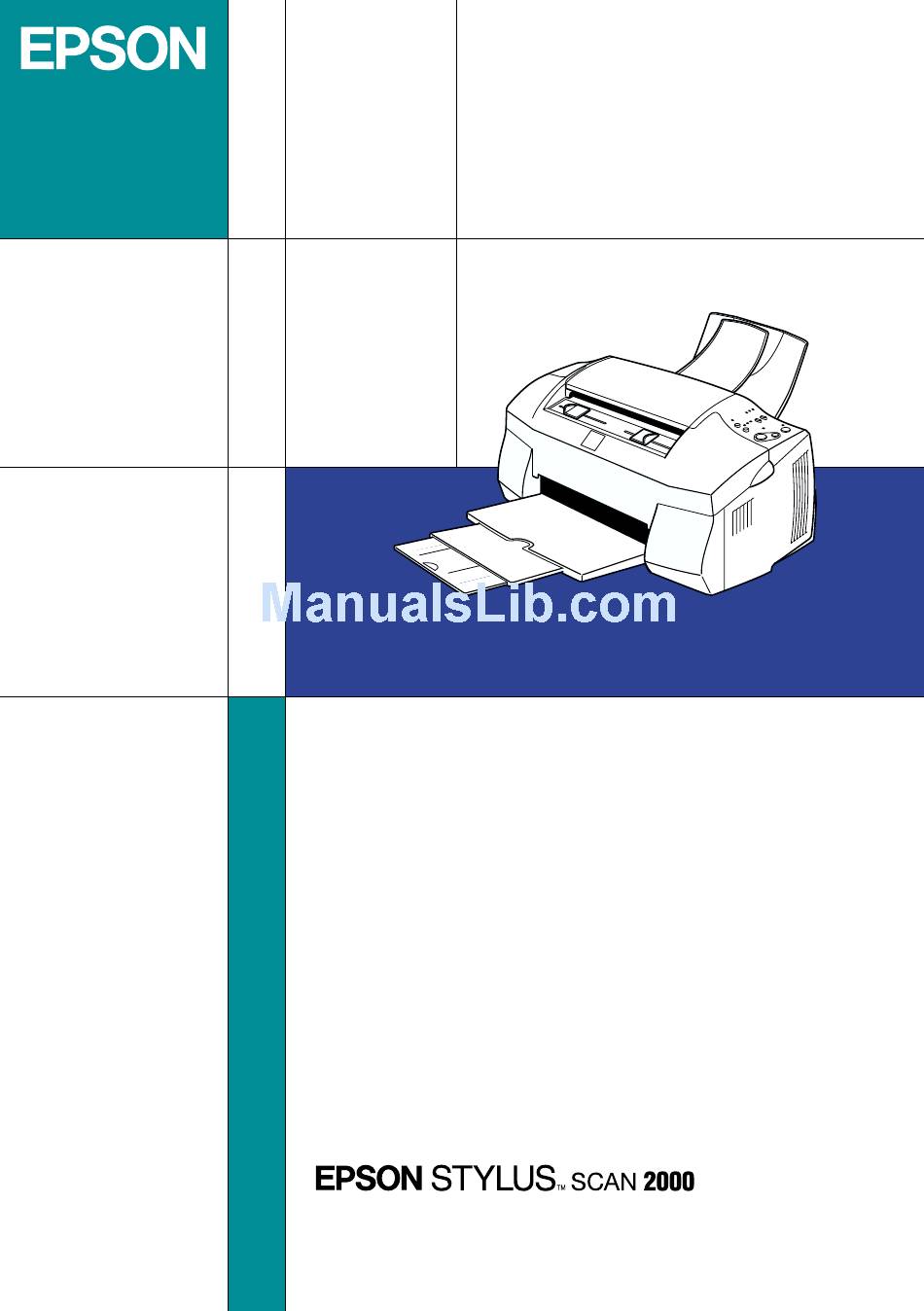

  • Page 1: Setup Guide

    All in One Product Setup Guide 4010626 XXX-00...

  • Page 2: Table Of Contents

    Attaching the Paper Support ......1 Plugging in the EPSON Stylus Scan ..... . . 1 Connecting the Stylus Scan to Your Computer .

  • Page 4: Attaching The Paper Support

    Attaching the Paper Support The EPSON Stylus Scan comes with two paper supports. Paper support (gray) Fit the paper support into the slots at the rear of the Stylus Scan. Document support (transparent) Carefully fit the document support into the holes at the rear of the Stylus Scan.

  • Page 5: Connecting The Stylus Scan To Your Computer

    Caution: It is not possible to change the Stylus Scan's voltage. If the rated voltage and your outlet voltage do not match, contact your dealer for assistance. Do not plug in the power cord. 3. If the power cord is not attached to the Stylus Scan, connect it to the AC inlet at the back of the Stylus Scan.

  • Page 6: Using The Usb Port (For Windows 98 Or Macintosh)

    2. Plug the cable connector securely into the parallel interface connector at the rear of the Stylus Scan. Squeeze the wire clips together until they lock in place on both sides. 3. Plug the other end of the cable into the computer’s parallel interface.

  • Page 7: Installing The Drivers And Other Software On Your Pc

    Installing the Drivers and Other Software on Your PC Your Stylus Scan comes with the EPSON Stylus Scan 2000 Software for Windows CD-ROM which includes software for your Stylus Scan. To print and scan with your Stylus Scan, you need to install the following software included on the CD-ROM.

  • Page 8: For Windows 98 And 95 With A Parallel Connection

    1. Turn on the computer and start Windows. Note: If you turn on the EPSON Stylus Scan before turning on your PC, the computer may detect the Stylus Scan and display the New Hardware Found dialog box or a similar wizard, following start-up.
  • Page 9 4. Click the Add Software button. 5. The EPSON Software Setup dialog box appears. Make sure there is a check mark next to EPSON SMART PANEL and EPSON Stylus Scan 2000 Drivers. Clear the check marks next to the names of any software that you do not want to install.
  • Page 10 8. When installation is complete, the EPSON Stylus Scan Setup dialog box appears. Click Next. 9. In Windows 98, the following dialog box appears. Select LPT (Printer Port), then click Next to begin installation. (If this dialog box does not appear, go to the next step.)
  • Page 11 10. When installation is complete, click OK to start the EPSON Screen Calibration utility. Note: Be sure to calibrate your screen and Stylus Scan to ensure that the colors of reproduced images closely match the originals. 11. In the following window, move the slider to the right or left until the two shades of gray horizontal stripes match.

  • Page 12: For Windows 98 With A Usb Connection

    12. Click OK to register the calibration setting. 13. When the EPSON Stylus Scan Drivers installation is complete, installation for other applications begins automatically. Follow the on-screen instructions. 14. After all applications have been installed, a message appears asking you to restart your computer. Click OK.
  • Page 13 Then turn on the computer and start Windows 98. Note: If you turn on the EPSON Stylus Scan before turning on your computer, the computer may detect the Stylus Scan and display the New Hardware Found dialog box, or a similar wizard, following start-up.
  • Page 14 4. Click the Add Software button. 5. The EPSON Software Setup dialog box appears. Make sure there is a check mark next to EPSON SMART PANEL and EPSON Stylus Scan 2000 Drivers. Clear the check marks next to the names of any other software that you do not want to install.
  • Page 15 8. When installation is complete, the EPSON Stylus Scan Setup dialog box appears. Click Next. 9. The following dialog box appears. Select USB, then click Next. 10. The following message appears. Click OK. Installation for other applications begins automatically. Follow the on-screen instructions.
  • Page 16 If you have more than one USB hub connected to your computer, connect the Stylus Scan to the hub that is connected directly to your computer. If the EPSON Stylus Scan does not work properly when connected to the hub, connect it directly to the computer’s USB port.
  • Page 17 14. If the following dialog box appears, click Next. Otherwise skip to step 19. 15. The following dialog box appears. Click Next. 16. In the following dialog box, clear all the check boxes, then click Next.
  • Page 18 17. In the following dialog box, click Next to install the required drivers. Note: If a dialog box appears asking you to specify the location of the Windows 98 CD-ROM, insert the Windows 98 CD-ROM into the CD-ROM drive and click OK. 18.
  • Page 19 Make sure the EPSON Stylus Scan 2000 Software for Windows CD-ROM is still in your CD-ROM drive, and click 20. The following dialog box appears. In the Copy files from box, type D:\EPSON\ENGLISH (or your preferred language), then click OK. Substitute the appropriate drive letter if necessary.

  • Page 20: Installing The Software In Your Macintosh

    Installing the software in your Macintosh To print and scan with your Stylus Scan, you need to install the following software included on the EPSON Stylus Scan 2000 Software for Macintosh CD-ROM shipped with your Stylus Scan. This software must be installed before connecting the Stylus...
  • Page 21 Allows you to use the Stylus Scan’s scanner function. The included CD-ROM also contains the following software. Acrobat Reader This software enables you to read the manual for EPSON SMART PANEL, or any other file that is in the Portable Document Format (PDF).
  • Page 22 1. Turn on your Macintosh and insert the EPSON Stylus Scan 2000 Software for Macintosh CD-ROM in the CD-ROM drive. The EPSON window appears. 2. Double-click the Software Installer icon. The Select Language dialog box appears. 3. Select the language you want and click OK.
  • Page 23 5. The EPSON Software Setup dialog box appears. Make sure there is a check mark next to EPSON SMART PANEL and EPSON Stylus Scan 2000 Drivers. Clear the check marks next to the names of any software that you do not want to install.
  • Page 24 10. When the following dialog box appears, click Restart. 11. The EPSON Screen Calibration utility starts automatically. In the following window, move the slider to the right or left until the two shades of the gray horizontal stripes match. Note: The gray stripes will not perfectly blend together;...
  • Page 25 If you have more than one USB hub connected to your computer, connect the Stylus Scan to the hub that is connected directly to your computer. If the EPSON Stylus Scan does not work properly when connected to the hub, connect it directly to the computer’s USB port.
  • Page 26 When background printing is on, you can use your Macintosh while it is preparing a document for printing. You must turn on background printing to use the EPSON Monitor3 utility to manage print jobs. 3. Close the Chooser.

  • Page 27: Installing The Ink Cartridges

    Before turning on your USB hub (if necessary) and your Stylus Scan, turn on the Macintosh and wait until the desktop appears. When unplugging the USB cord, wait a few seconds before plugging it back in. Otherwise, the Macintosh may not recognize your Stylus Scan and you may be unable to print correctly.
  • Page 28 2. Turn on the Stylus Scan by pressing the P power button. The print head moves left to the color ink cartridge installation position. Caution: Do not move the print head by hand. Doing so may damage the Stylus Scan. 3.
  • Page 29 4. Open the color ink cartridge package that came with your Stylus Scan. Remove the yellow tape seal from the ink cartridge. Caution: Be sure to remove the yellow tape seal from the cartridge before installing it; otherwise the cartridge will become unusable.
  • Page 30 7. Press the cleaning button and release it. The print head moves left to the black ink cartridge installation position. Caution: Install both ink cartridges. If either of the cartridges is not installed, the EPSON Stylus Scan will not work.
  • Page 31 8. Lift the ink cartridge clamp. 9. Open the black ink cartridge package that came with your Stylus Scan. Remove the yellow tape seal from the ink cartridge. Caution: Be sure to remove the yellow tape seal from the cartridge before installing it;...
  • Page 32 10. Hold the black ink cartridge with the label facing up. Set the cartridge gently into the holder. Do not press down on it. 11. Press the cartridge clamp down until it locks into place. Caution: Once you install the ink cartridges, do not open the clamps again until you replace the ink cartridges.
  • Page 33 (far right) position and the P power light comes on. Caution: Never turn off the EPSON Stylus Scan while the P power light is flashing. 13. Close the front cover.

  • Page 34: Checking The Stylus Scan

    Checking the Stylus Scan Before using your EPSON Stylus Scan, make sure it works correctly by printing a nozzle check pattern. You may also need to clean the print head. Loading Paper Follow the steps below to load A4 or Letter size plain paper in the paper feeder.

  • Page 35: Printing The Nozzle Check Pattern

    3. Load the stack of paper with the printable side up and the right edge of the paper resting against the right side of the paper feeder. Then slide the edge guide against the edge of the paper. printable side up Note: Always load paper into the paper feeder short edge first.

  • Page 36: Cleaning The Print Head

    Make sure that the EPSON Stylus Scan is turned off. Hold down load/eject button ( in the illustration below) and press the P power button ( in the illustration below) to turn on the EPSON Stylus Scan. Then release both buttons. The Stylus Scan starts printing a nozzle check page.
  • Page 37 Caution: Never turn off the EPSON Stylus Scan while the P power light is flashing. Doing so may damage the Stylus Scan. 3. When the P power light stops flashing, print a few lines from a document to confirm that the head is clean and to reset the cleaning cycle.

  • Page 38: After Setup

    Uninstalling the USB driver 1. Click Start, point to Settings and Control Panel. 2. Double-click the Scanners and Cameras icon. 3. Select EPSON Stylus Scan 2000, then click Remove. 4. Click OK and close the dialog box. 5. Double-click the Add/Remove Programs icon.
  • Page 39 7. Select EPSON Stylus Scan 2000, then click OK. Follow the on- screen instructions. 8. After the uninstall is complete, select EPSON USB Printer Devices and click Add/Remove. Follow the on-screen instructions. The computer restarts automatically. To connect the Stylus Scan using the parallel port, see “Using the parallel port (for Windows 98 or 95)”...
  • Page 40 EPSON OVERSEAS MARKETING LOCATIONS EPSON AMERICA, INC. EPSON UK LTD. 20770 Madrona Ave. Campus 100, Maylands Avenue, P.O. Box 2842 Hemel Hempstead, Herts, Torrance, CA 90509-2842 HP2 7TJ, U.K. Phone: (800) 922-8911 Phone: (+44) 01442 261144 Fax: (310) 782-5220 Fax: (+44) 01442 227227 EPSON DEUTSCHLAND GmbH EPSON FRANCE S.A.
  • Page 41 All in One Product Setup Guide Printed in Japan 99.XX-X...
