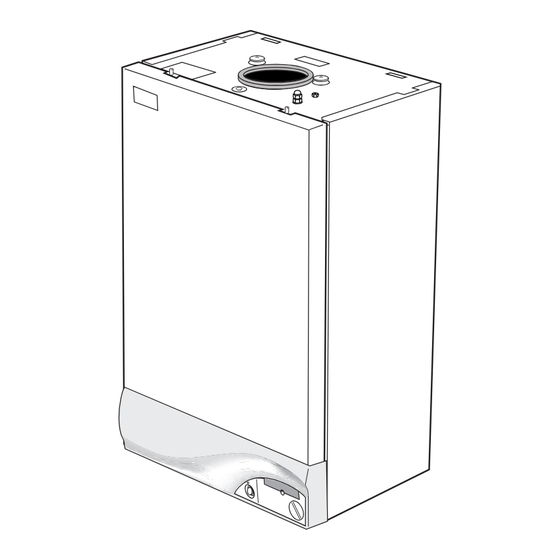

IDEAL icos system HE15 Installation And Servicing

Hide thumbs Also See for icos system HE15:
Table of Contents

Advertisement

Quick Links

See also: Installation and Servicing Manual , User Manual
back
installation and
servicing
PACKAGED BOILER CONTENTS
HAVE BEEN CHECKED BY OPERATOR No........
icos system
(V3 Flue System)
Your Ideal installation and servicing guide
For details of document amendments, refer to page 3
HE15, HE24
For users guide see reverse of book
When replacing any part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require. Do not
use reconditioned or copy parts that have not been clearly authorised by Ideal Boilers.
October 2009 UIN 203320 A05
For the very latest copy of literature for specification & maintenance
practices visit our website www.idealboilers.com where you will
be able to download the relevant information in pdf format.
