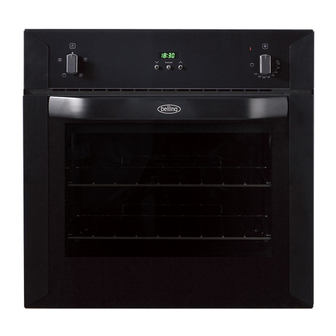

Belling BI 60 G

Advertisement

Table of Contents
loading

Related Manuals for Belling BI 60 G

Summary of Contents for Belling BI 60 G

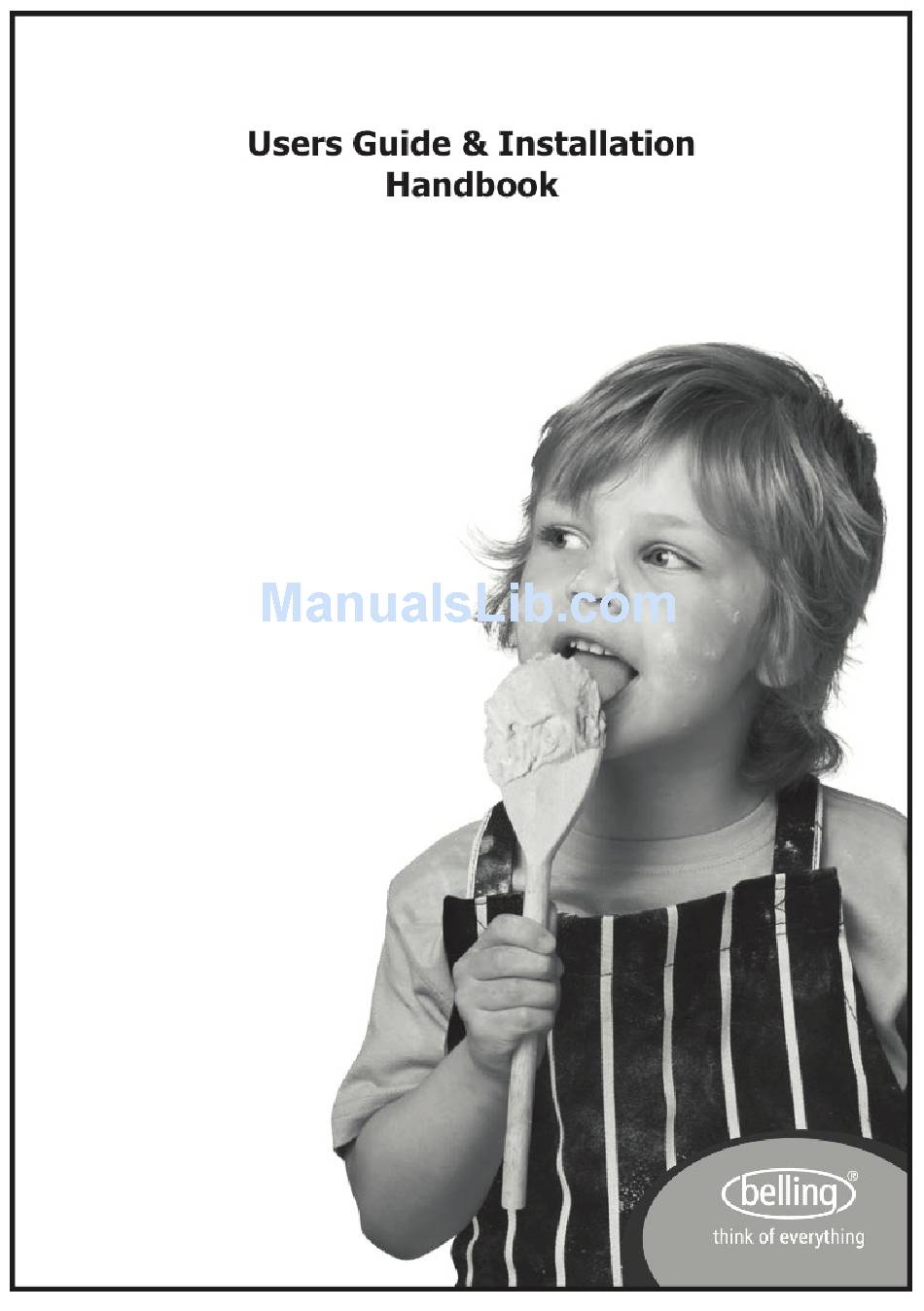

  • Page 1 Belling BI 60 G...

  • Page 2: If You Smell Gas

    If you smell gas: Do not try to light any appliance. Do not touch any electrical switch. 0800 111999 Call the Gas Emergency Helpline at TRANSCO on: IMPORTANT NOTICE Please note the cooling fan fitted to this appliance is an integral part of its safety and functionality.

  • Page 3: Table Of Contents

    Technical Data ........29 Belling Customer Care......Back Page Please keep this handbook for future reference, or for anyone else who may use this appliance.

  • Page 4: Introduction

    Introduction hope that following Gas & Electrical connection information will help you to familiarise Please refer to installation instructions yourself with the features of the for the Gas & Electrical Safety Regulations appliance, and to use it successfully and the Ventilation Requirements. and safely.

  • Page 5: User Section

    Introduction The cooling fan Switch the appliance off at the mains and contact Customer Care. The cooling fan helps to keep the exterior cool during normal use. Continued use of the appliance When a burner is operated, you without it being serviced could result in should hear the cooling fan switch on excessive temperatures...

  • Page 6: Environmental Protection

    Introduction Glass door panels To replace an oven light bulb To meet the relevant Standards of WARNING - switch off the electricity Domestic cooking appliances, all the supply to the appliance at the socket, glass panels on this appliance are to avoid the risk of electric shock.

  • Page 7: Be Safe - Not Sorry

    Be Safe - Not Sorry When you are cooking, keep I Always use oven gloves when children away from the vicinity removing hot food / dishes from of the appliance. the oven or grill. The oven / grill and utensils will be very hot when This product is designed as a domestic in use.

  • Page 8: Using The Grill

    Using the Grill Caution: Accessible parts may Detachable grill pan handle be hot when the grill is used, young children should be kept away. Grill operation Important: The door must be fully open when the grill is used. Open the door. Push in and turn the control knob clockwise to the grill position.
  • Page 9 Using the Grill Using the grill Push the grill pan towards the back of the shelf, to position it under the grill. Variation in grilling can be achieved by moving the grill pan up or down. The speed of grilling can also be controlled by selecting a higher or lower shelf position.

  • Page 10: Using The Oven

    Using the Oven When you are cooking, keep trays and roasting tins that should be children away from the vicinity used are as follows; of the oven. Baking tray 350mm x 280mm This size of baking tray will hold up to Notes 16 small cakes.

  • Page 11: Oven Ignition

    Using the Oven Oven ignition Ignition Baking guide - hints Push in and turn the main oven control To protect a very rich fruit cake during knob anti clockwise to the ‘ ’ cooking, tie 2 layers of brown paper FULL ON position (gas mark 9).

  • Page 12: Oven Baking Guide

    Using the Oven Baking guide Dish Recommended Shelf Approximate gas mark position cooking times Scones top to middle 8 - 15 mins Meringues “S” (slow setting) middle to bottom 2 - 3 hours Cakes Small cakes middle to top 15 - 25 mins Whisked sponge middle to top 20 - 25 mins...

  • Page 13: Roasting Guide

    Using the Oven Roasting guide Notes: The times given in the roasting guide I When cooking stuffed meat or are only approximate, because the poultry calculate the cooking time size and age of the bird will influence from the total weight of the meat cooking times as will the shape of a plus the stuffing.

  • Page 14: Slow Cooking, Frozen & Chilled Food

    Using the Oven Cooking frozen & chilled foods Slow cooking I Preheat the oven. I Make sure that frozen foods are thoroughly before cooking. I When cooking frozen or chilled foods, THAWED please follow the manufacturer’s I Do not slow cook joints of meat instructions.

  • Page 15: Roasting Turkey

    Using the Oven Traditional fruit cakes Roast Turkey It should be remembered that ovens Roasting Turkey perfectly involves can vary over time, therefore cooking cooking two different types of meat - times can vary, making it difficult to be the delicate light breast meat, which precise when baking fruit cakes.

  • Page 16: Automatic Cooking

    Using the Oven Semi-Automatic cooking in the Important: Food is more susceptible main oven to the growth of food poisoning organisms in warm conditions. If the The semi-automatic cooking facility is weather is hot, either take care to controlled by the programmer (see ensure that food is not left standing in ‘Programmer/Clock’...

  • Page 17: Programmer / Clock

    Programmer / Clock The clock on this product has two modes of operation, fully automatic or semi-automatic. This product is intended for use on the semi automatic mode only. If for some reason this mode has not already been pre-set, the following procedure should be used to set it to this mode:- 1.
  • Page 18 Programmer / Clock The programmer buttons the second tone, etc. Releasing the button after the tone has sounded minus will automatically select that tone. plus Setting the minute minder The ‘function’ button in the centre is used for setting the minute minder and setting up the automatic cooking.
  • Page 19 Programmer / Clock Semi-automatic cooking For the instructions on how to use both of these functions, please see the There are two types of semi automatic following pages. cooking available on this appliance. The oven must be switched on, and in use to use either of these functions successfully.
  • Page 20 Programmer / Clock Programmer / Clock 1. The Duration method Semi-automatic cooking The Duration method Press the Function button twice,(1) Function which will skip past the Minute Minder. The LED display will flash the word ‘dur’, (2) and the ‘A’ will flash on the left hand side of the display.

  • Page 21: Cleaning

    Cleaning Caution: Any cleaning agent Enamel surfaces used incorrectly may damage & OVEN CAVITY GRILL PAN ROASTING TIN the appliance. If you do a lot of open roasting, or Always let the appliance cool roast at temperatures above 200˚C, before cleaning. we recommend regular cleaning.
  • Page 22 Cleaning Glass parts Important: if the inner door glass panel is removed for cleaning, it must & FACIA PANEL DOOR PANELS be replaced the right way up as Use a mild cream cleaner. shown, and pushed fully in to the Rinse thoroughly and dry with a soft stop position.
  • Page 23 Cleaning Stainless Steel surfaces (stainless steel finish models only) FACIA PANEL HANDLES DOOR CLADDING Only use a clean cloth wrung out in hot soapy water, and dry with a soft cloth. Stubborn marks can be removed using stainless steel cleaner. recommend that you clean the whole of the stainless steel area to maintain a uniform finish.

  • Page 24: Installation Instructions

    Installation Instructions Before start: Please read accordance with all local gas and electrical instructions. Planning your installation will regulations. In the Republic of Ireland, save you time and effort. Installers should refer to IS813 Domestic Gas Appliances. Prior to installation, ensure that the local distribution conditions (nature of the gas and Ventilation Requirements gas pressure) and the adjustment of the...

  • Page 25: Step 1: Prepare Installation

    Installation Instructions Step 1: Prepare installation Do not lift the appliance by the door handle. Whilst every care is taken to eliminate burrs and raw edges from this product, please take care when handling - we recommend the use of protective gloves during installation.
  • Page 26 Installation Instructions When installed in a typical Important: Do not modify the outer 600mm deep built in housing unit, panels of this appliance in any way. the false back should be removed Ensure that you route all mains from the housing unit to provide the electrical cables and flexible tubing necessary depth for installation.

  • Page 27: Step 2: Connect To Gas Supply

    Installation Instructions Step 2: Connect to gas supply 4. Flexible connections should comply with BS 669. Parts of the 1. The inlet to the appliance is ISO 7 appliance likely to come into - Rp ” internal thread situated ⁄ contact with a flexible connector towards the top right hand rear have a temperature rise of less...

  • Page 28: Step 3: Connect To Electricity Supply

    Installation Instructions Step 3: Connect to the electricity As the colours of the wires in the mains supply lead for the appliance may not correspond with the coloured markings This appliance must be connected by identifying the terminals in your spur a competent person, using fixed box, proceed as follows: wiring via a double pole switched...

  • Page 29: Step 4: Secure Appliance Into Housing Unit

    Installation Instructions Step 4: Secure appliance into housing unit There are 4 black no 8 x 25mm long chipboard screws securing appliance to cabinet. Insert appliance into cabinet and secure - open the oven door and screw the 4 screws through the holes in the front frame.

  • Page 30: Step 5: Commissioning

    Installation Instructions Step 5: Commissioning Oven Ignition Pressure test point Push in and turn the main oven control knob anti clockwise to the ‘ ’ FULL ON Use the oven burner. From inside the position (gas mark 9). The ignition oven remove the burner cowl.

  • Page 31: Technical Data

    Technical Data Data badge Grill Lower part of front frame and rear of Nominal Rate Qn 1.8kW appliance. Oven Type of gas Bray type burner, sheet steel body, This cooker is factory set for use on stainless steel flame strip Natural Gas only, as specified on the Nominal Rate Qn 2.5kW...

  • Page 32: Belling Customer Care

    Belling Customer Care Please keep this handbook in a safe place as the information inside may be of use should you sell, or pass on the appliance. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call.
