Page 1: Operating Instructions

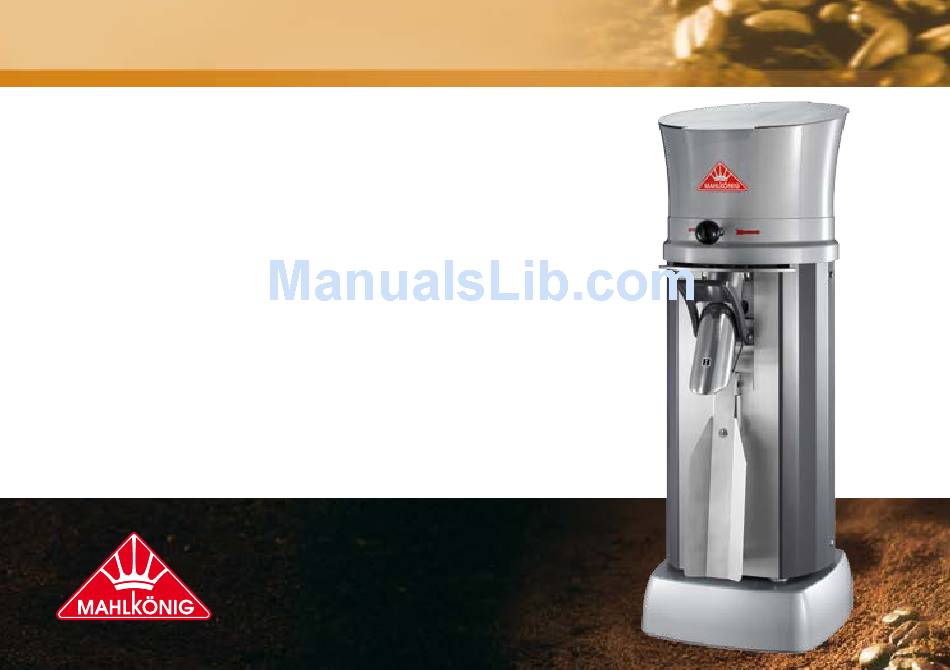

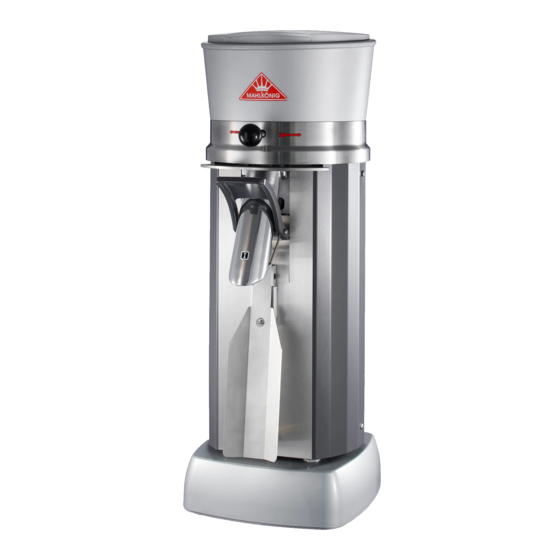

L A D E N M Ü H L E N S H O P G R I N D E R Operating Instructions K501 Easy, modular and fast“ ” The professional art of grinding since 1924... - Page 2 L A D E N M Ü H L E N S H O P G R I N D E R...
-
Page 3: Seite
L A D E N M Ü H L E N S H O P G R I N D E R Dear Customer, with the “K501“ you have purchased a grinder in the well-known MAHLKÖNIG quality. Our over 80 years of experience in the production and development of grinders have helped us to develop a new product in the MAHLKÖNIG... -
Page 4: Table Of Contents
L A D E N M Ü H L E N S H O P G R I N D E R Table of Contents 1. Safety 7. Operating Faults 1.1 Symbols 1.2 Safety Instructions 8. Cleaning 1.3 Purpose of Use 8.1 Cleaning with GRINDZ™... -
Page 5: Safety
L A D E N M Ü H L E N S H O P G R I N D E R 1. Safety Never operate the grinder in moist or, even worse, in wet surroundings. Please read and observe the following operating instructions carefully. -
Page 6: Purpose Of Use
L A D E N M Ü H L E N S H O P G R I N D E R 2. Technical Data 1.3 Purpose of Use The grinder you have purchased is only allowed to be used to grind whole coffee beans. -
Page 7: Description
L A D E N M Ü H L E N S H O P G R I N D E R 3. Description The main components and operating elements are shown in the figure. Pos. 1 Lid with abbreviated instructions Pos. -
Page 8: Safety Devices
L A D E N M Ü H L E N S H O P G R I N D E R 4. Safety Devices 5. Set-up and Basic Adjustment Thermal overload circuit breaker A grinding test run is carried out on each grinder in the factory. This is The motor of the grinder is protected by an overload circuit breaker, why you may find ground coffee residue in the grinding mechanism! which interrupts the electric circuit of the motor when the device is... -
Page 9: Basic Setting
L A D E N M Ü H L E N S H O P G R I N D E R 5.3 Basic setting A grinding test can be conducted when the grinder is ready for Turn left = fine operation. -
Page 10: Operating Faults
L A D E N M Ü H L E N S H O P G R I N D E R 7. Operating Faults Defect Cause Remedy Defect Cause Remedy The grinder The spout is Set grinding fineness to The grinder does The power sup- Insert the plug into the out-... -
Page 11: Cleaning
L A D E N M Ü H L E N S H O P G R I N D E R 8. Cleaning Always pull the power supply plug out of the outlet Defect Cause Remedy before carrying out any maintenance or cleaning work on the device! Observe the safety instructions Grinder rotates Incorrect... -
Page 12: Cleaning The Grinder Surface Area
L A D E N M Ü H L E N S H O P G R I N D E R 9. Maintenance and Repair 8.3 Cleaning the Grinder Surface Area Pull out the electrical plug! Always pull the power supply plug out of the outlet before carrying out any maintenance or cleaning Tip the grinder to the side and clean the placement surface area work on the device! -
Page 13: Grinding Disc Replacement
L A D E N M Ü H L E N S H O P G R I N D E R Pull the key plate with grind adjustment scale (Pos. 4) off the For cleaning the disc casing use a brush or a vacuum cleaner. Make grinder towards the front. - Page 14 L A D E N M Ü H L E N S H O P G R I N D E R In the upper part of the disc casing, unscrew the cover component to release the disc with the circular spring. Pull the key plate with grind adjustment scale (Pos.
- Page 15 L A D E N M Ü H L E N S H O P G R I N D E R For the rotary disc in the lower part of the casing place the service tool on top. It locks in with the three eccentrics. Use the disc key to loosen the thumb screw in the middle.
-
Page 16: Re-Adjusting The Grinding Fineness
L A D E N M Ü H L E N S H O P G R I N D E R 12. Put back on the hopper, turn the grind adjustment to fine and re- Turn back the hopper one number towards coarse. For coffee grinder Type K 501T (Turkish coffee) turn the hopper back half a tighten the knob with the black ball. -
Page 17: Spare Parts
Coffee grinder machine typ: K501 is in compliance with the following directives and regulations: • The provisions of the Machinery Directive 2006/42/EG • The Low Voltage Directive 73/23/EWG •... -
Page 18: Warranty Conditions
L A D E N M Ü H L E N S H O P G R I N D E R 12. Warranty Conditions The warranty period is 1 year from the date of purchase. The warranty covers all damages that can be attributed to infe- rior materials or defective workmanship. - Page 19 L A D E N M Ü H L E N S H O P G R I N D E R...
- Page 20 L A D E N M Ü H L E N S H O P G R I N D E R MAHLKÖNIG GmbH & Co. KG Tilsiter Straße 142 D- 22047 Hamburg, Germany Tel.: +49 (0)40 / 69 69 40-0 Fax: +49 (0)40 / 69 39 721 office@mahlkoenig.de ;...
