X500

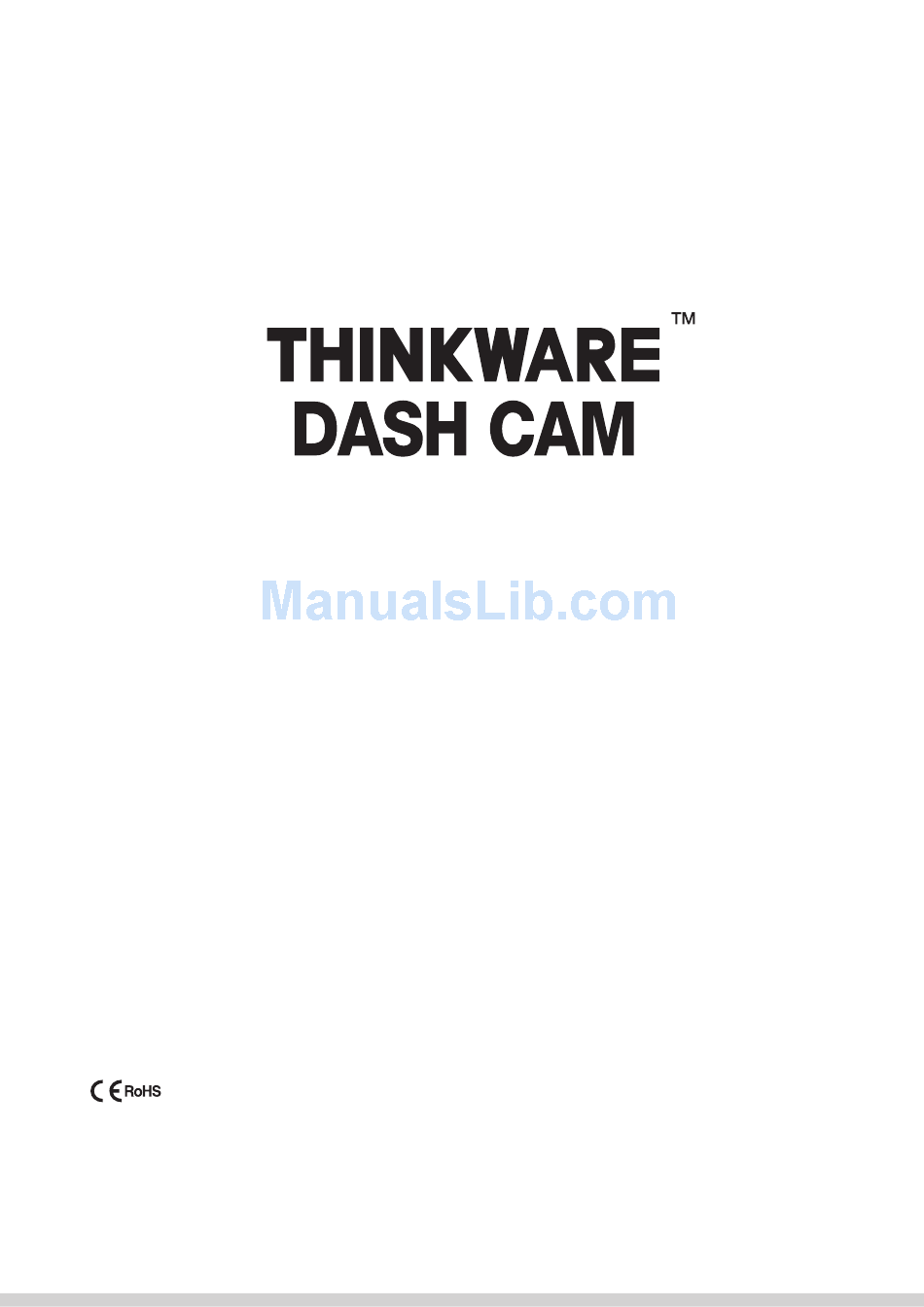

U s e r M a n u a l

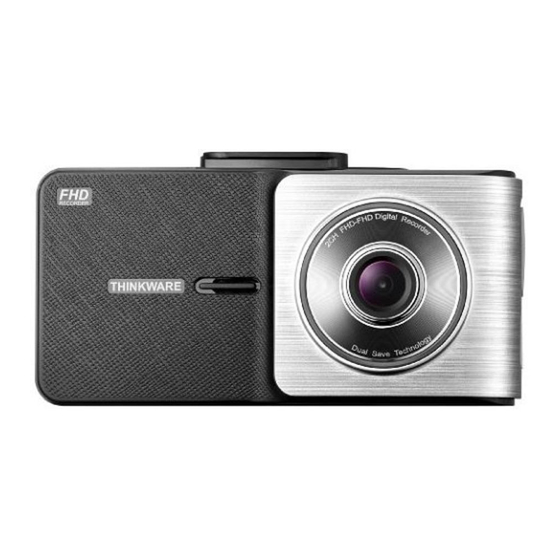

This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed firmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-020UAM103
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thinkware X500
Summary of Contents for Thinkware X500
- Page 1 X500 U s e r M a n u a l This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use. Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed firmware.
-
Page 3: Table Of Contents
3-5. Dual Save Videos 3-6. Settings > Camera Settings 3-7. Settings > Continuous Recording Settings 3-8. Settings > Parking Recording Settings 3-9. Settings > System Settings 3-10. About Device PC Application 4-1. Thinkware Dash Cam PC Viewer Product Specifications 5-1. Specifications... -
Page 4: Before Using Thinkware Dash Cam
▶ THINKWARE reserves the right to change or modify the product and the content of this manual at any time without prior notice for product improvements. -
Page 5: Caution
Product may result in malfunction and/or surrounding temperatures. damage to the device. THINKWARE is NOT responsible for the loss of any Do not operate this device while driving. recorded video during operation. Install this device in a location where it has unob-... -
Page 6: Getting Started
1. Getting Started This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to insure compliance. 1-1. In the Package Mount with 3M tape Adhesive Cable Holder Main Dash Cam Unit Car Charger (1ea) (5ea) -
Page 7: Product Overview
1-3. Product Overview Front view Rear view Right view Top view Name Description Camera Lens Front facing camera for video recording Mount Connector Connects to the windshield mount LED light that is used to visually indicate that the vehicle is equipped Security LED with dash cam which is in operation Speaker... -
Page 8: Inserting A Memory Card
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable item, it will need to be replaced periodically. THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory card is used to minimize memory card error. -
Page 9: Vehicle Installation
1-5. Vehicle Installation 1-5-1. Connecting the Device and the Mount ① Place the mount so it is aligned with the connector (A), and push it toward (B) until it clicks into place. ② Remove the protective film from the camera lens. 1-5-2. -
Page 10: Connecting To Power
For more information on the power cable routing instruction, please visit Thinkware homepage. (www.thinkware.com) Preventing Vehicle Battery Discharge ■ Depending on the car make and model, the power from the vehicle can be supplied even with the ignition turned off. -
Page 11: Basic Operations
2. Basic Operations 2-1. Turning the Device Power On/Off The device will automatically turn on and off with vehicle ignition. Power cable for vehicle To manually turn the device on/off, press and hold the Power button ( ) for 3 seconds. Press and hold for 3 seconds... -
Page 12: Road Safety Warning System
2-2. Road Safety Warning System Using embedded GPS and road data, related road safety information will be notified to the driver Alert will be displayed on the LCD screen when approaching nearby points of interest. Resetting GPS ┗ Built-in Internal GPS can be reset by selecting “Main Menu > About Device > GPS Info > Reset GPS” Cautions This feature may not be available in some countries. -
Page 13: Recorded Files
2-3. Recorded Files Recorded video files are saved in the folder by date and hour in the MicroSD card. ┗ Files are created based on the time when the videos are recorded. Front view Year Month Day Hour Second recording Minute Rear view recording... -
Page 14: Recording Videos While Driving
2-4. Recording Videos While Driving 2-4-1. Continuous Recording Mode Videos are recorded in 1 minute segments and saves as files in the MicroSD card under folder named “cont_rec”. 2-4-2. Incident Recording in During Continuous Recording Mode When the dash cam detects impact, it will immediately store the previous 10 seconds prior to impact and start recording video for next 10 seconds. - Page 15 2-4-3. Dual Save (Internal Memory Backup) Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition to the MicroSD memory card. Dual Save technology guarantees incident video recording using internal memory in case of an accident that causes damage to the MicroSD memory card.
-
Page 16: Optional] Recording Videos While Parked
2-5. [Optional] Recording Videos While Parked This feature is available only when the dash cam has been hardwired directly to the vehicle battery. Separate purchase for the hardwiring cable accessory and professional installation is required. 2-5-1. Incident Recording When the dash cam detects impact while parked, it will imme- diately store the previous 10 seconds prior to impact and start recording video for next 10 seconds which is then saved in a secure location on the MicroSD card under folder named... -
Page 17: Manual Recording
2-6. Manual Recording In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap- ture scenery and/or places while driving. This feature can also be used to save video as witness where the installed vehicle is not directly involved in an accident. -
Page 18: Formatting Microsd Card
The system will automatically be updated if the MicroSD card contains the firmware upgrade file. The device restarts automatically after the upgrade has been completed. Make sure your device is always up to date with latest firmware. Please check back frequently at THINK- WARE website (www.thinkware.com) for latest firmware updates. -
Page 19: Main Menu
3. LCD Screen 3-1. Main Menu Recording status Change to Live View GPS status Data/Time Directional Keys Select... -
Page 20: Live View
3-2. Live View LCD screen can be used to verify current recording view. Switch to Front/ Rearview camera (appears only when Rear view Back to main menu rearview camera is connected) Audio recording status Manual recording Current speed / Voltage status... -
Page 21: File List
3-3. File List Recording will suspend when browsing through video list and settings menu. Visual notification will appear on the screen to confirm the suspension of recording prior to entering the menu. 3-3-1. File List - 1 Continuous: Lists loop recording videos during continuous mode (in 1 minute segments) ... - Page 22 3-3-2. File List - 2 Recording will stop when accessing on-screen menu. Video file name Current Video playback play time progress bar Total playing time Switch to front/rear view Enter zoom view Mute on/off Play/Pause Next Previous Video playback with 3X zoom Directional button Exit zoom view...
-
Page 23: Memory Card Settings
3-4. Memory Card Settings Memory Partition: Sets how storage space on the memory card will be allotted for each recording mode ┗ Type A (recommended) : Optimized for continuous recording ┗ Type B : Optimized for incident and motion detection during parking surveillance ┗... -
Page 24: Dual Save Videos
3-5. Dual Save Videos Videos: View Dual Save video list Copy to SD: Copy all videos saved on the internal memory to MicroSD card Delete All: Delete all videos saved on the internal memory... -
Page 25: Settings > Camera Settings
3-6. Settings > Camera Settings Brightness-F/R: Sets the video recording brightness for front/rear camera Wide Dynamic Range : Sets the WDR mode to record clear video even under large variation of backlightingillumination. -
Page 26: Settings > Continuous Recording Settings
3-7. Settings > Continuous Recording Settings Impact Sensitivity: Sets the impact sensitivity level Road Safety Warnin: Sets audible notifications for road safety warnings Cautions Tips on sensitivity It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec- ommended for cars with softer ride such as luxury sedans;... -
Page 27: Settings > Parking Recording Settings
3-8. Settings > Parking Recording Settings Use Parking Mode: Monitors vehicle ignition status to automatically convert to parking mode when the vehicle engine is turned off Impact Sensitivity: Sets the impact sensitivity during parking recording mode Motion Detection Sensitivity: Sets the motion detection sensitivity during parking recording mode ... -
Page 28: Settings > System Settings
3-9. Settings > System Settings Language : Sets language Voice Volume: Sets the volume level LCD Brightness: Sets the brightness of the LCD screen LCD Auto-Off: Sets the time for LCD auto shut off ┗ When LCD is off, pressing any button will turn the LCD screen back on ... -
Page 29: About Device
3-10. About Device Functions : Help for device features Device Info : Information on device and firmware ┗ Factory Reset: Restores to factory setting GPS Info : View GPS information ┗ GPS Initialization: Reset GPS... -
Page 30: Pc Application
The setup file for the Thinkware Dash Cam PC Viewer is included in the MicroSD card in the package. Please check THINKWARE homepage(www.thinkware.com) for latest Dash Cam PC Viewer application. - Page 31 Windows 8.x (32bit/64bit) ① Move the file named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop. ② Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam viewer application. Cautions...
- Page 32 The MicroSD card will not be recognized by the software until it has been initialized in the dash cam. It is recommended that the user record at least one video clip on the MicroSD card with the dash cam unit before accessing the Thinkware Dash Cam PC Viewer.
- Page 33 4-1-4. Thinkware Dash Cam Viewer Overview Full screen Switch between front/rear view Dash cam setting / Information File open Rear view (Enabled only if Mi- croSD card contains video captured using rear view Viewing screen camera) Checks the location Playback...
- Page 34 4-1-5. View Video Playlist Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion, Parking Incident) to see the playlist for each recording mode. Continuous Recording Playlist Manual Recording Playlist...
-
Page 35: Specifications
5. Specifications 5-1. Specifications The specifications of this product may change without prior notice for product improvements. Item Standard Note Model X500 Size/weight 104.3 x51.4 x 29.3mm / 109g Display Panel 2.7"LCD (320x240) Capacity MicroSD card (UHS-I) 16GB/32GB/64GB Continuous Recording Mode...
