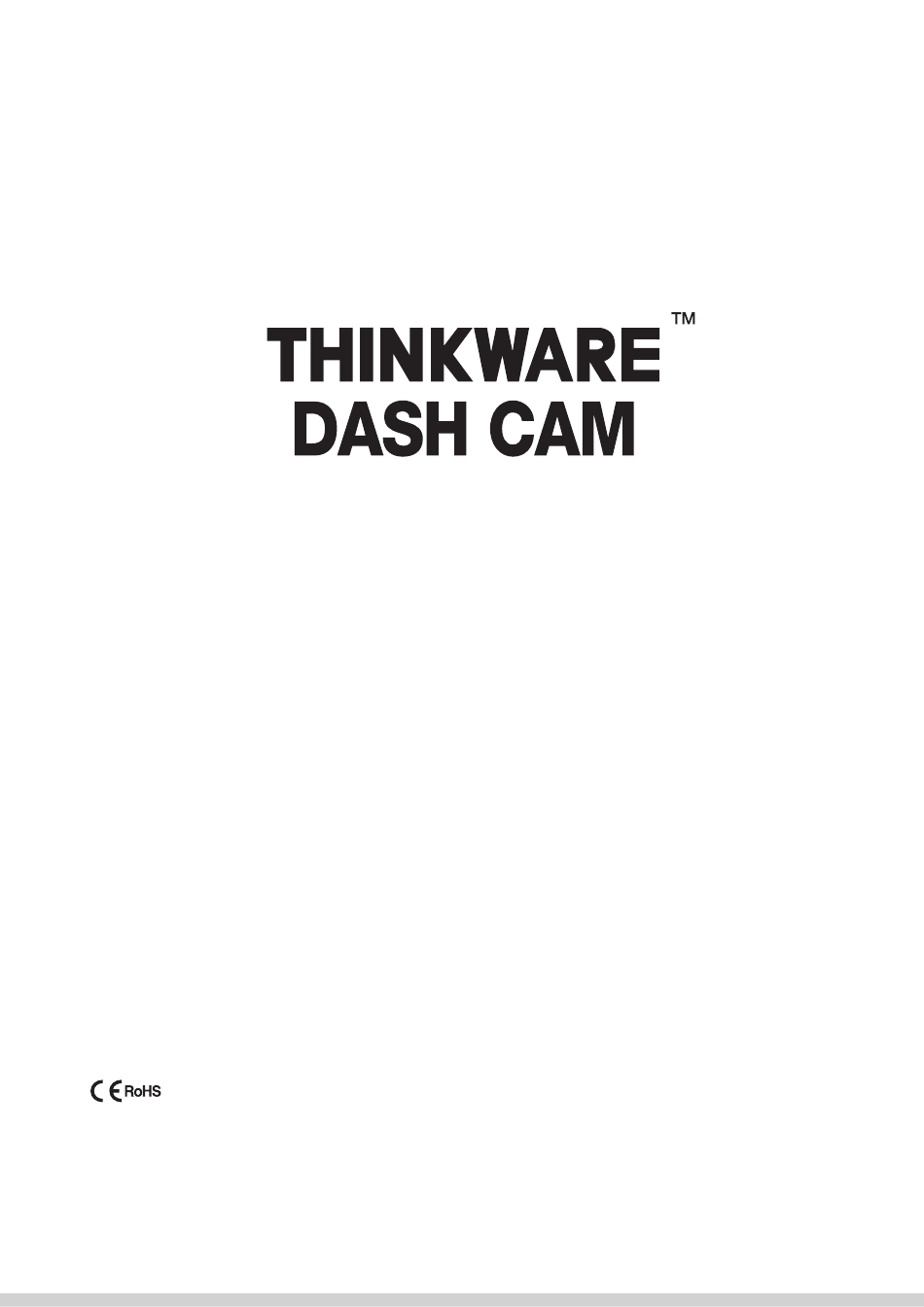

X150
U s e r M a n u a l
This Dashboard Camera (dashcam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed firmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-021JAM101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thinkware X150

  • Page 1 X150 U s e r M a n u a l This Dashboard Camera (dashcam) is a specialized onboard device that continuously records video while the vehicle is in use. Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed firmware.
  • Page 2: Table Of Contents

    2-5. Recording Videos While Driving 2-6. Recording Videos While Parked (Optional Accessory) 2-7. Manual Recording 2-8. Upgrading Firmware Touch LCD 3-1. Using Live View 3-2. File List PC Viewer Software 4-1. Thinkware Dash Cam PC Viewer 4-2. PC Viewer Configuration Device Information 5-1. Specifications...
  • Page 3: Before Using Thinkware Dash Cam

     THINKWARE reserves the right to change or modify the product and the content of this manual at any time without prior notice for product improvements.
  • Page 4: Caution

    Handle with care. Drop, shock, and mishandling THINKWARE is NOT responsible for the loss of any the Product may result in malfunction and/or recorded video during operation. damage to the device.
  • Page 5: Getting Started

    1. Getting Started This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance. 1-1. In the Package Mount with 3M tape Adhesive Cable Holder Main Dash Cam Unit Car Charger (1ea) (5ea)
  • Page 6: Product Overview

    1-3. Product Overview Front view Rear view Top view Right view Name Description Camera Lens Front facing camera for video recording Mount Connector Connects to the windshield mount Operation indicator lights that are used to visually indicate that the vehicle Security LED is equipped with a dash cam Speaker...
  • Page 7: Inserting A Memory Card

    The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable item, it should be replaced periodically. THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards are used to minimize memory card error.
  • Page 8: Vehicle Installation

    1-5. Vehicle Installation 1-5-1. Connecting the Device and the Mount   ①  A lign the mount with the connector (A), and slide it towards (B) until it clicks into place.  ② Remove the protective film from the camera lens. 1-5-2.
  • Page 9 For more information on the power cable routing instruction, please visit Thinkware homepage. (www.thinkware.com) Preventing Vehicle Battery Discharge ■ Depending on the make and model of your car, the power may be supplied to the dash cam even with the ignition turned off.
  • Page 10: Turning The Device Power On/Off

    2. Basic Operations 2-1. Turning the Device Power On/Off  Once connected to the vehicle, the device will automatically turn on and off with vehicle ignition. Power cable for vehicle Operation LED Bottom Red Light ON  To manually turn the device ON/OFF, use the power switch on the side. ┗Push up the power switch to turn the device ON Power ON/OFF switch...
  • Page 11: Connecting External Gps Receiver(Optional Accessory)

    2-3. Connecting External GPS Receiver(Optional Accessory)  E xternal GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho- rized dealers. External GPS Receiver enables recording of vehicle locations in the video file for driving route tracking.
  • Page 12: Recorded Files

    2-4. Recorded Files  Recorded video files are saved in the folder by date and hour in the MicroSD card. ┗Files are created based on the time when the videos are recorded. Front view Year Month Day Hour Second recording Minute Rear view recording (optional rear view cam-...
  • Page 13: Recording Videos While Driving

    2-5. Recording Videos While Driving 2-5-1. Continuous Recording Mode  V ideos are recorded in 1 minute segments and saved as files in the MicroSD card under the folder named “cont_ rec”. Operation LED Security LED Green Light ON Bottom White Light Blinking 2-5-2.
  • Page 14: Recording Videos While Parked (Optional Accessory)

    2-6. Recording Videos While Parked (Optional Accessory) This feature is available only when the dash cam has been hardwired directly to the vehicle battery. Separate purchase for the hardwiring cable accessory and professional installation is required. 2-6-1. Incident Recording  When the dash cam detects impact while parked, it will imme diately store the 10 seconds prior and after the impact.
  • Page 15: Manual Recording

    2-7. Manual Recording In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap- ture scenery and/or places while driving. This feature can also be used to "save video as witness" where the installed vehicle is not directly involved in an accident.
  • Page 16: Upgrading Firmware

    The device restarts automatically after the upgrade has been completed.  M ake sure your device is always up to date with latest firm- ware. Please check back frequently at THINKWARE website (www.thinkware.com) for the latest firmware updates.
  • Page 17: Touch Lcd

    3. Touch LCD 3-1. Using Live View GPS Connection Status Back to main menu Rearview (appears only when rear- view camera is connected) Rearview screen enlarges when the viewing area is touched Front View Current Speed Speed information is provided when the external GPS antenna is connected Current Date/Time Audio Settings...
  • Page 18: File List

    3-2. File List Recording will suspend when browsing through video list and settings menu. Visual notification will ap- pear on the screen to confirm the suspension of recording prior to entering the menu. 3-2-1. File List Continuous Recording : Lists loop recording videos during continuous mode in 1 minute segments Parking Recording : Lists motion detection recording videos during parking surveillance mode Incident Recording : Lists incident recording videos during both continuous and parking surveillance mode Manual Recording : Lists manual recording videos initiated by pressing REC button...
  • Page 19 3-2-2. Audio Settings  Voice Recording : Sets voice recording on/off  Volume Control : Sets the volume level (low/mid/high)  Sound Setting : Sets the audible alerts on/off  Voice guidance : Sets voice guidance on/off...
  • Page 20 3-2-3. Device Settings  LCD Auto Off : Sets the time for LCD auto shut off  Impact Sensitivity : Sets the impact sensitivity level (low/mid/high)  Motion Sensitivity : Sets the sensitivity of the motion detection sensor  Parking Mode : Monitors vehicle ignition status to automatically convert to parking mode when the vehi- cle engine is turned off ...
  • Page 21 3-2-4. System Settings  Language/Unit : Sets the system language and speed unit  Set Time : Sets the time  Calibrate Touch Screen : Calibrate touch screen to ensure accurate touch response (Touch center of the cross as instructed) ...
  • Page 22: Pc Viewer Software

    The setup file for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package. Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application.
  • Page 23 Windows 8.x (32/64 bit) ① M ove the file named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop. ② Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam viewer application.
  • Page 24 The MicroSD card will not be recognized by the software until it has been initialized in the dash cam. It is recommended that the user record at least one video clip on the MicroSD card with the dash cam unit before accessing the Thinkware Dash Cam PC Viewer.
  • Page 25 4-1-4. Thinkware Dash Cam Viewer Overview Full screen Switch between front/rear view Dash cam setting / Information File open Rear view (Enabled only if Mi- croSD card contains video captured using rear view Viewing screen camera) Checks the location Playback...
  • Page 26: Pc Viewer Configuration

    4-2. PC Viewer Configuration  Memory Partition : Sets how storage space on the memory card will be allotted for each recording mode  Formatting memory card : Initiates memory card format  Voice recording : Sets the voice recording on/off during video recording ...
  • Page 27: Specifications

    5-1. Specifications The specifications of this product may change without prior notice for product improvements. Item Standard Note Model X150 104 x 63 x 27.5mm / 102g Size/weight 4.1 x 2.48 x 1.08inches / 0.225lbs Display Panel 3.5"TFT LCD (480x320)
